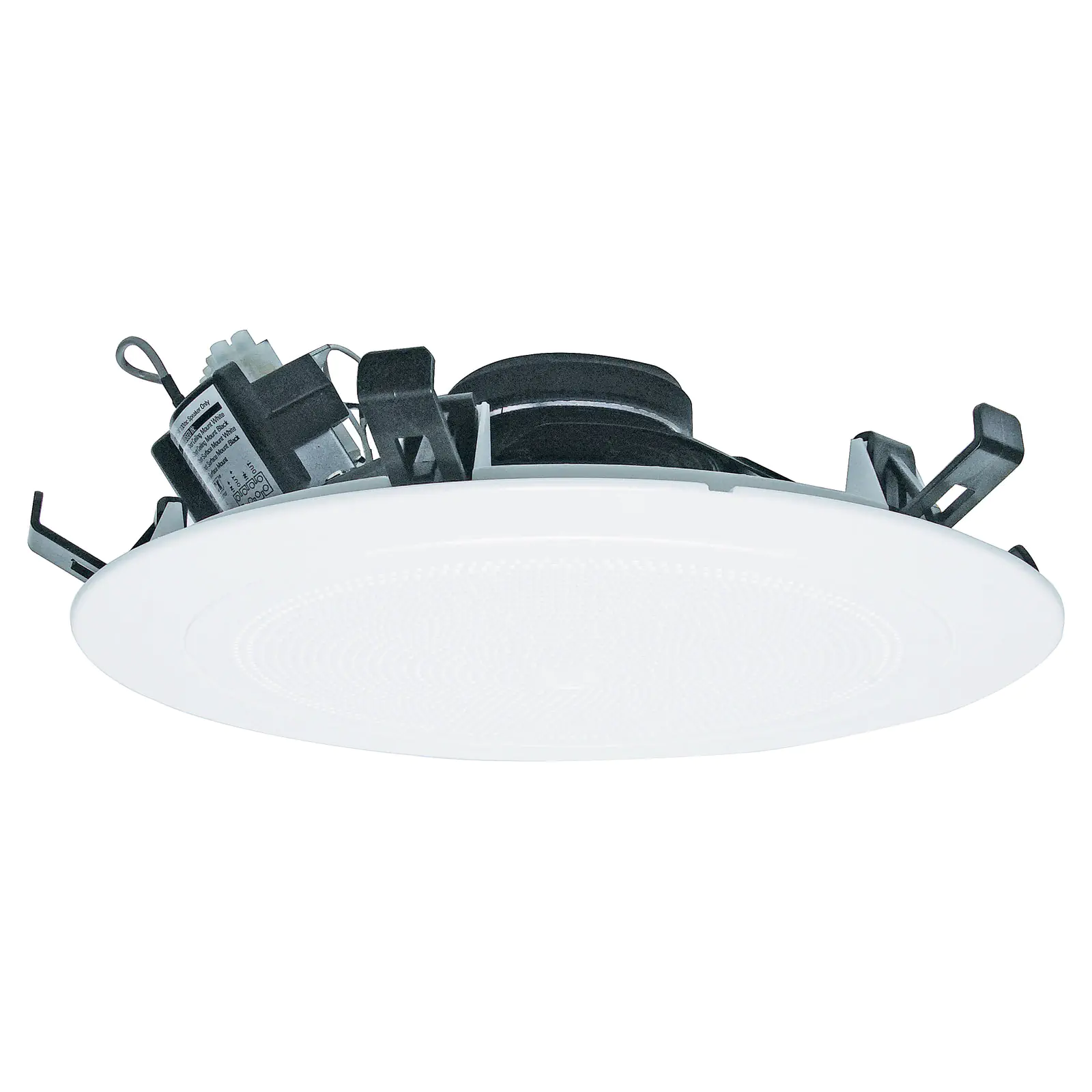

200mm (8") 5W 100V White EWIS One-Shot Ceiling Speaker

by: One-Shot
SKU: C2134C
Super fast installation & excellent speech intelligibility. Redback "One-Shot" speaker units install in seconds. They simply snap fit to any 10-13mm thickness ceiling by means of the integral pressure clips.
$52.27

All Prices Shown are (ex GST)
Bulk Pricing
ea $52.27
4+ $47.27
10+ $44.09
i h

Overview

This 200mm (8") One-Shot Redback PA ceiling speaker has been engineered to be EWIS compatible and offer fast installation. They are ideal for BGM, paging & emergency warning applications. The offset transformer mounting allows mounting in ceilings with limited recess space. Fitted with twin cone 200mm driver with 4 way wire protect terminal block & 22uf bipolar cap.



Features:

  • Excellent speech intelligibility.
  • Engineered to meet Australian Standard AS1670.4
  • High quality speaker driver developed for BGM, paging and emergency warning applications.
  • Patented 6 way latching ensures a neat, sag free installation.
  • Fitted with 4 way wire protect terminal block for loop in, loop out wiring as required by Australian Standards.
  • Fitted with cable restraint plate and transformer safety cover as required by Australian Standards.
  • Fitted with supervisory capacitor for line monitoring.
  • High impact styrene grille.
  • 5 year warranty.





Specifications:

Power taps: 0.33, 0.66, 1.25, 2.5, 5W

Frequency Response: 75Hz- 15kHz

SPL (1W @ 1M): 93dB

Size: 200mm

Hole Cutout (Ø): 246mm

Connection: 4 way terminal block + 22uf bipolar capacitor

Note: All SPL figures are measured at 1KHz +/- 2dB.





10 year warranty

Backed by an industry leading 5 Year Speaker Performance Warranty.

This speaker is covered by our 5 Year speaker performance warranty. Redback PA drivers are engineered and manufactured to stringent specifications ensuring maximum reliability under all operating conditions. Each driver has a power rating well above the max tapping of the transformer, ensuring reliable operation and excellent longevity.

Details

Products specifications

Warranty 5 Years
Speakers
Input 100 Volt Line Speakers
Size 8" (200mm)

Warranty

WARRANTY

We offer 5 Years warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.

Downloads

.pdf
Brochure
PDF
