The fire & evacuation safety standard has changed to AS ISO 7240.24: 2018. This new standard will be implemented in new building projects. Redback is releasing this new range of horn and ceiling speakers to meet this standard to ensure fire & evacuation installations in new buildings meet the required code.

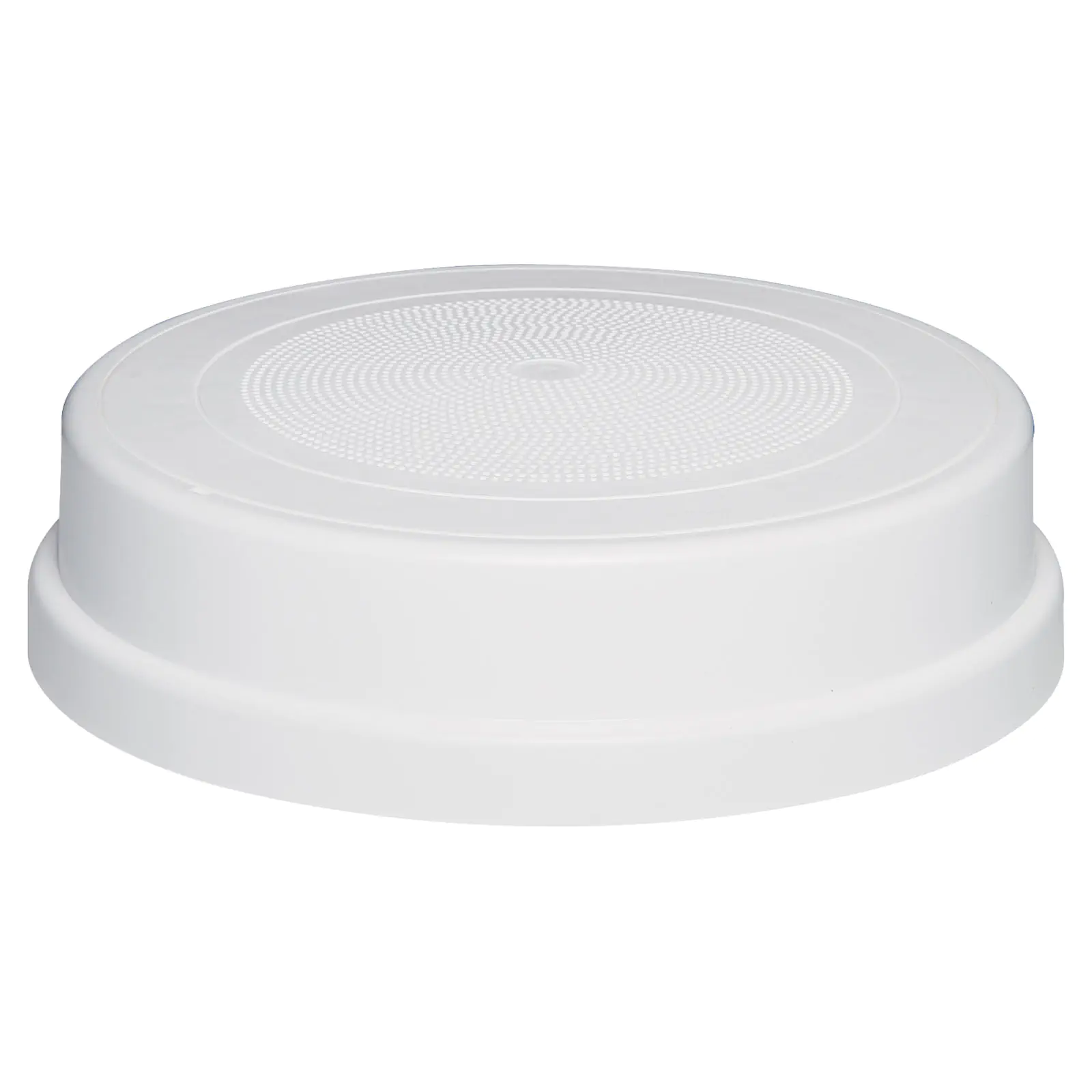

5W 100V 200mm (8”) Fire Speaker White AS ISO7240.24

Name: 5W 100V 200mm (8”) Fire Speaker White AS ISO7240.24
SKU: CF0715
Price: 109.09 AUD
Availability: InStock

by: One-Shot

SKU: CF0715

$109.09

All Prices Shown are (ex GST)

Bulk Pricing

ea	$109.09
4+	$97.27
10+	$88.18

i h

Overview
Details
Warranty
Downloads

Overview

Designed to meet AS ISO7240.24. Fire versions of our popular One-Shot C 0715 speaker. It features flame retardant housing material and a tuned PA driver to suit the new approval requirements. One-Shot design simply snap-fits in seconds to the surface mounting ring, reducing installation time considerably. The C 0713 adaptor plate enables the surface mounting ring to be fixed to a standard conduit junction box without the need for drilling into the slab.

Features:

Designed to meet AS ISO7240.24 standard for fire & evacuation warning systems
Excellent speech intelligibility
High quality speaker driver developed for BGM, paging and emergency warning applications
Patented 2 way latching system reduces installation time.
Fitted with 4 way wire protect terminal block for loop in, loop out wiring as required by Australian Standards.
Fitted with supervisory capacitor for line monitoring.
High impact fire retardant enclosure & grille.
Australian designed & assembled.
5 year warranty.

Specifications:

Rated Noise Power: 5 Watts (100V line)

Power Taps & Impedance (100V line): 0.33W (30kΩ), 0.66W (15kΩ), 1.25W (8kΩ), 2.5W (4kΩ), 5W (2kΩ)

Sensitivity: 93dB (1W@1M), 81dB (1W@4M)

Maximum Sound Pressure Level: 101dB (5W@1M), 89dB (5W@4M)

Frequency Response: 100 Hz - 15kHz; 500 - 4kHz O 8dB

Coverage Angle (-6dB): 500 Hz: > 180 o , 1000Hz: 81o , 2000Hz: 93o , 4000Hz: 58o

Environmental Type: A (for indoor applications as per standard)

Speaker Component: 200mm (8”) paper cone speaker

Mounting Method: Surface Attachment

Line Monitoring: Yes, 22μF bipolar capacitor

Applicable Cable: 2.5mm2 (14AWG) max conductor area

Connection: 4 way screw terminal

IP Rating: IP 21C

Dimensions: 310Ø x 85mm

Weight: 1.36kg

Finish:

White flame retardant ABS grille and housing (Taitalac 8540T)

Black Flame retardant ABS spring clips (Cycoloy C2950HF)

Backed by an industry leading 5 Year Speaker Performance Warranty.

This speaker is covered by our 5 Year speaker performance warranty. Redback PA drivers are engineered and manufactured to stringent specifications ensuring maximum reliability under all operating conditions. Each driver has a power rating well above the max tapping of the transformer, ensuring reliable operation and excellent longevity.

Details

Products specifications

Warranty	5 Years

Warranty

WARRANTY

We offer 5 Years warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.

Downloads

Datasheet

PDF

ActivFire Certificate of Conformity

PDF

Brochure

PDF
