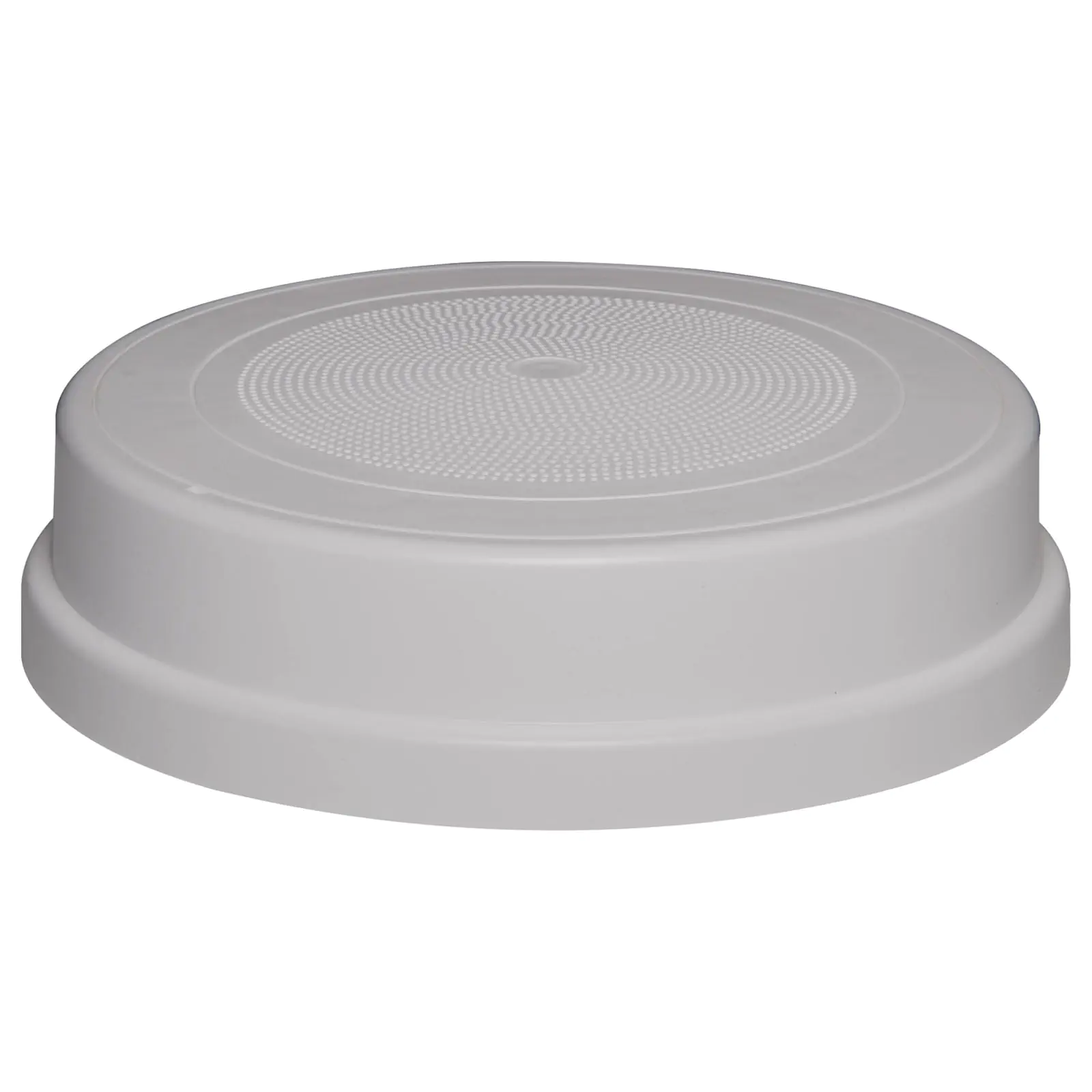

15W 100V 200mm (8”) Fire Speaker White AS ISO7240.24

by: One-Shot
SKU: CF0720
Designed to meet AS ISO7240.24 Fire versions of our popular One-Shot C 0720 speaker. It features flame retardant housing material and a tuned PA driver to suit the new approval requirements.
$140.91

All Prices Shown are (ex GST)
Bulk Pricing
ea $140.91
4+ $126.36
10+ $118.18
i h

Overview

Designed to meet AS ISO7240.24 Fire versions of our popular One-Shot C 0720 speaker. It features flame retardant housing material and a tuned PA driver to suit the new approval requirements. One-Shot design simply snap-fits in seconds to the surface mounting ring, reducing installation time considerably. The C 0713 adaptor plate enables the surface mounting ring to be fixed to a standard conduit junction box without the need for drilling into the slab.

Features:

  • Designed to meet AS ISO7240.24 standard for fire & evacuation warning systems
  • Excellent speech intelligibility
  • High quality speaker driver developed for BGM, paging and emergency warning applications
  • Patented 2 way latching system reduces installation time.
  • Fitted with 4 way wire protect terminal block for loop in, loop out wiring as required by Australian Standards.
  • Fitted with supervisory capacitor for line monitoring.
  • High impact fire retardant enclosure & grille.
  • Australian designed & assembled.
  • 5 year warranty.





Specifications:



Electrical:

Power taps: 1.25, 2.5, 5, 15W

SPL 1W @ 1m: 95dB @ 1kHz (+/- 2dB)

Frequency response: 80Hz-12kHz

Connection: 4 way terminal block + 22uF bipolar capacitor

Mechanical

Enclosure material: Flame retardant ABS

Driver construction: Paper twin cone

Enclosure diameter: 310mmØ

Depth: 85mm

Overall weight: 1.5kg

Colour: White



Environmental:

Operating temperature: -25°C to +55°C

Relative humidity: < 95%



Additional Installation Accessories:

C 0713 Conduit mounting plate












10 year warranty

Backed by an industry leading 5 Year Speaker Performance Warranty.

This speaker is covered by our 5 Year speaker performance warranty. Redback PA drivers are engineered and manufactured to stringent specifications ensuring maximum reliability under all operating conditions. Each driver has a power rating well above the max tapping of the transformer, ensuring reliable operation and excellent longevity.

Details

Products specifications

Warranty 5 Years

Warranty

WARRANTY

We offer 5 Years warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.

Downloads

.pdf
Datasheet
PDF
.pdf
Certificate Of Conformity
PDF
