This Noise-Filtering Network PoE Toner & Probe allows users to quickly locate and verify the cable status and troubleshoot wiring for continuity, shorts, opens and crossover on RJ45, Lan cable Cat5, 5e, 6 (UTP/STP), RJ11/12 telephone cable Cat. 3 (2/4/6 pin) & normal solid/stranded wire by alligator clips patch cord.

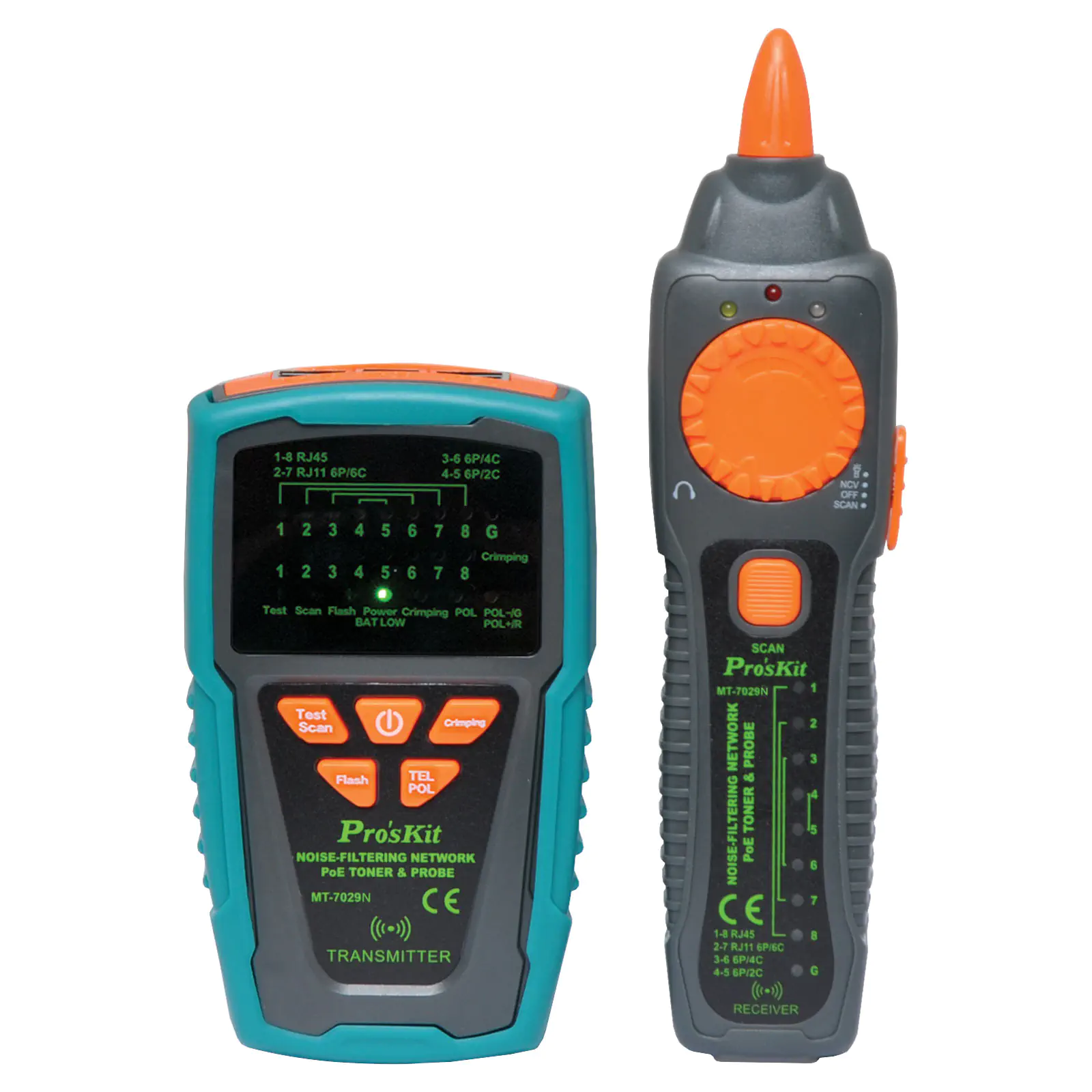

Professional Cable Tracer & PoE LAN Cable Tester

Name: Professional Cable Tracer & PoE LAN Cable Tester
SKU: Q1340B
Price: 271.82 AUD
Availability: InStock

by: Pros Kit

SKU: Q1340B

$271.82

All Prices Shown are (ex GST)

Bulk Pricing

ea	$271.82
2+	$245.45
4+	$226.36

i h

Overview
Details
Warranty
Downloads

Overview

This Noise-Filtering Network PoE Toner & Probe allows users to quickly locate and verify the cable status and troubleshoot wiring for continuity, shorts, opens and crossover on RJ45, Lan cable Cat5, 5e, 6 (UTP/STP), RJ11/12 telephone cable Cat. 3 (2/4/6 pin) & normal solid/stranded wire by alligator clips patch cord. Telephone line polarity and status (severed lines, the off-hook condition, or incoming call ringing) can be indicated and detected easily as well. Ideal for all installation and maintenance fields of telecommunication, networking, datacom, Audio/Video, cable TV, and all weather cabling, etc.

Specifications:

Transmitter

Signal frequency: 455KHz

Max. signal voltage: 8Vp-p

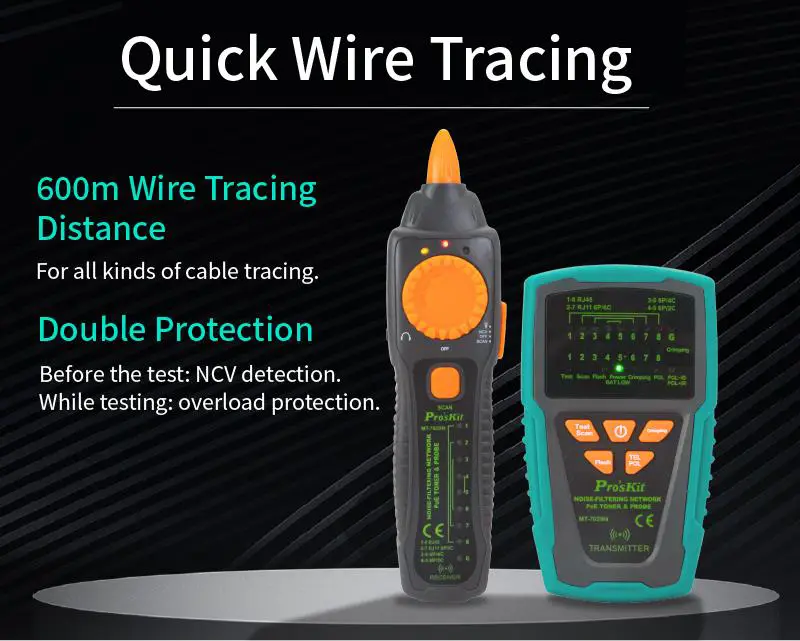

Tracing Distance: 600m

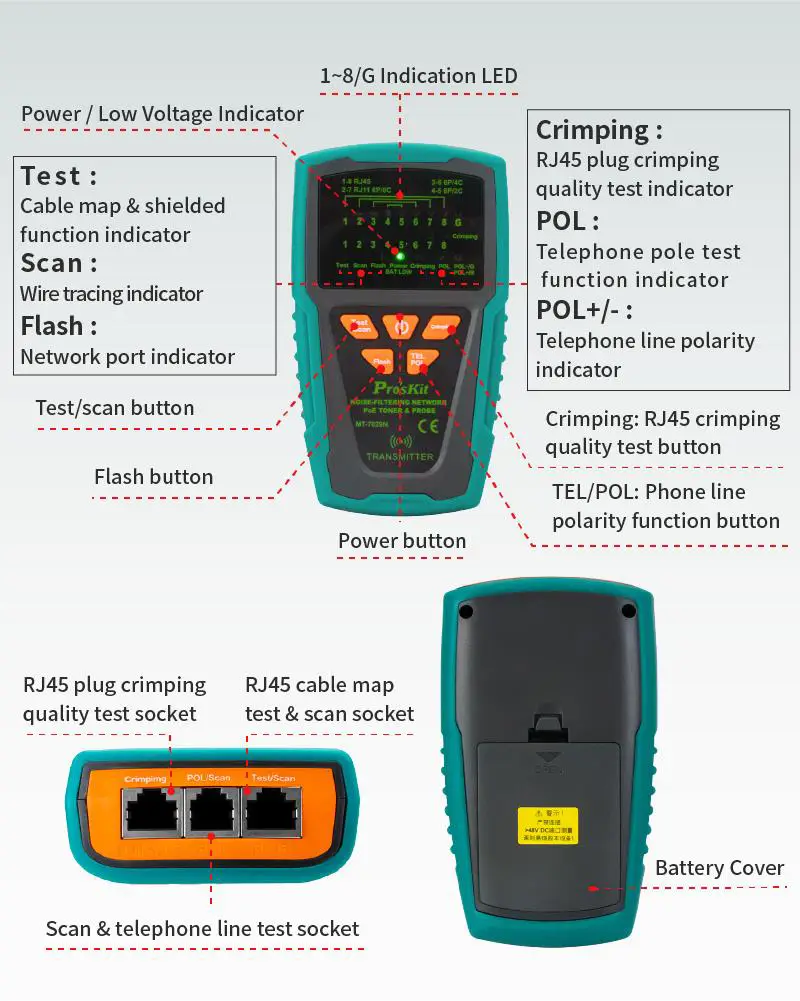

Cable map indication: 8 LEDs, Fast/Slow dual speed

Max. distance of cable map: 300m

Crimping test socket for RJ45/RJ11/RJ12 crystal plug

Crimping test: 8 LED indicators

Port Flash: 1 LED indicatior

Telephone line polarity, status indication: 1 Dual color LED

Low battery indication: About 7.0V

Voltage protection: DC 60V

Battery type DC 9.0V (NEDA 1604/ 6F22 DC9V ×1pce)

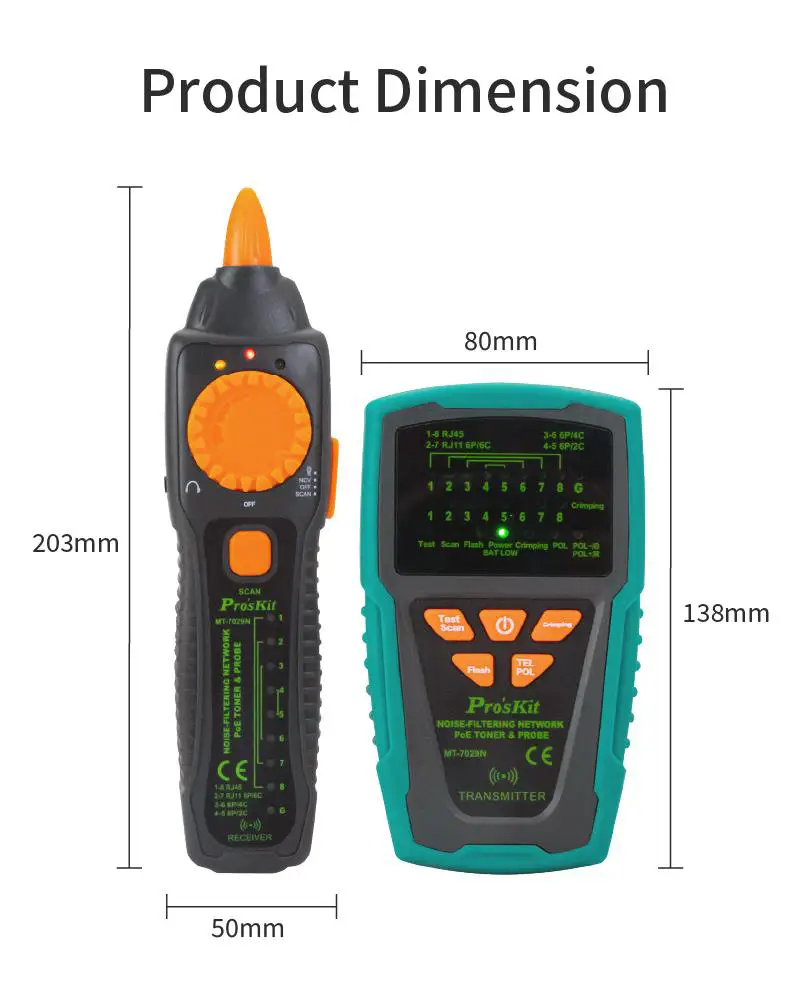

Dimension: 138L×80W×35D mm

Compatible connectors: For RJ45(8 pin)/RJ11(6 pin) cable map test. RJ45 SCAN socket : for RJ45 locating individual wire pairs RJ11 SCAN socket: for RJ11 locating individual wire pairs

Cable types: RJ45 Lan cable Cat 5, 5e, 6(UTP/ STP), RJ11/12 telephone cable Cat 3 (6P/2C/4C/6C)

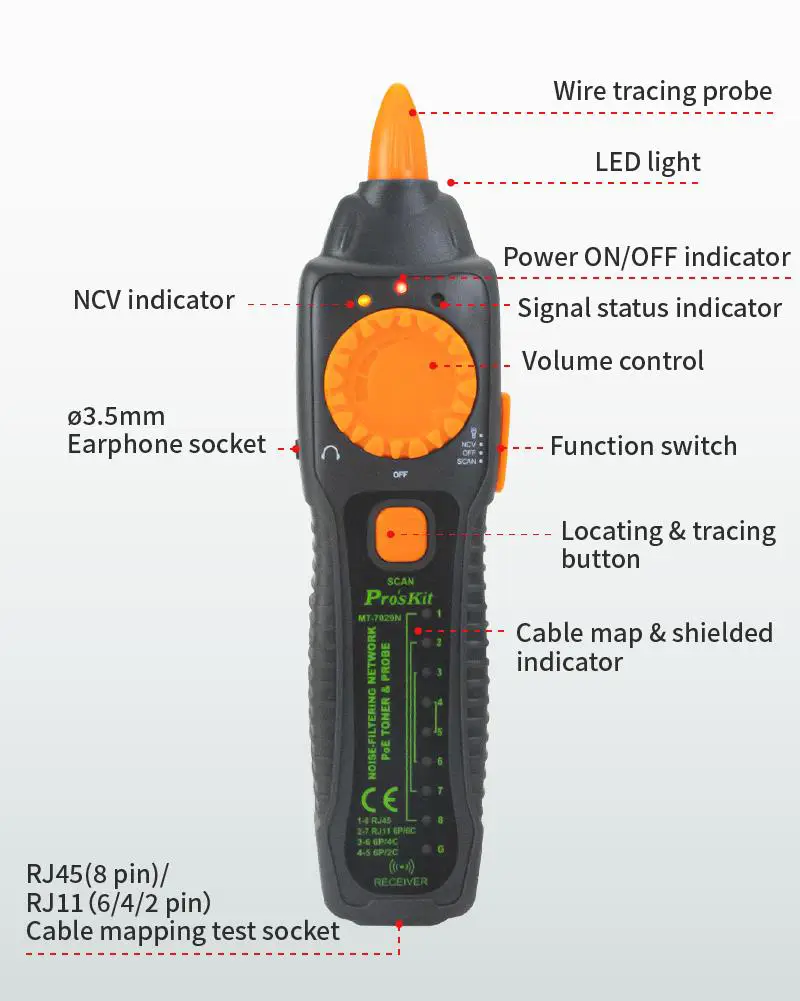

Receiver

Frequency: 455KHz

Tracing Indication: 1 LED indicator & speaker, anti-noise and sensitivity adjustable

Compatible connectors: RJ45 socket

Cable map indication: 8 LEDs

NCV indication; 1 LED (AC90~1000V,=50mm,=100mm)

Earphone jack: 1

LED illumination: 1 LED

Low battery indication: about 7.0V

Battery type: DC 9.0V (NEDA 1604/ 6F22 DC9V ×1pcs)

Dimension: 203L×50W×32D mm

General

Accessories: RJ45 cable patch cords, RJ11 cable patch cords, RJ11 to alligator clips patch cord, earphone, storage bag, user manual

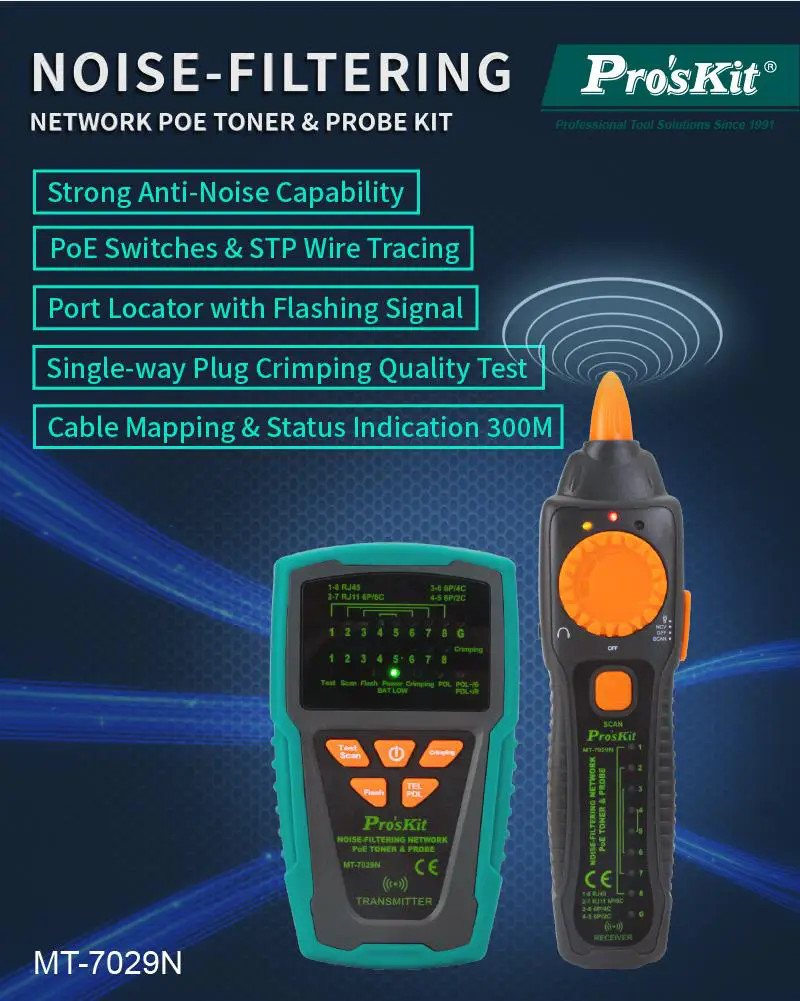

Features:

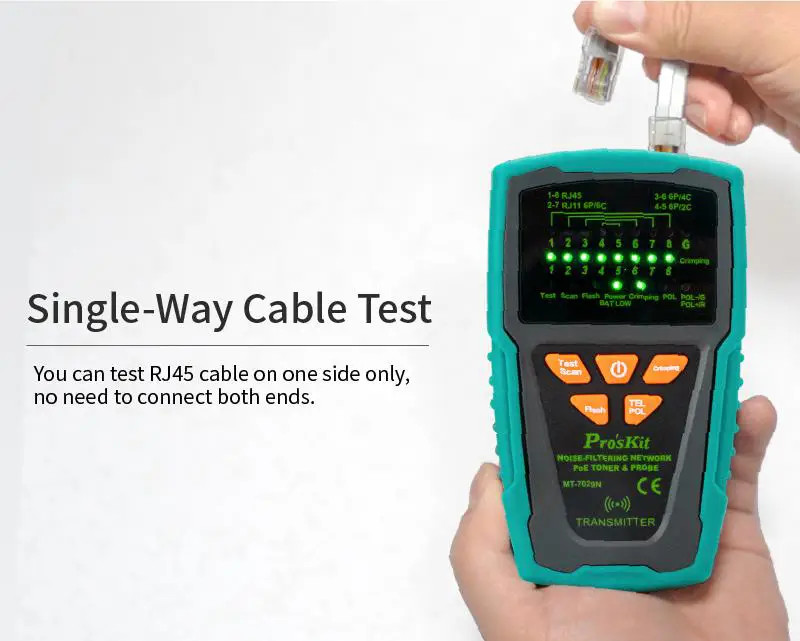

Single way to test plug crimping quality

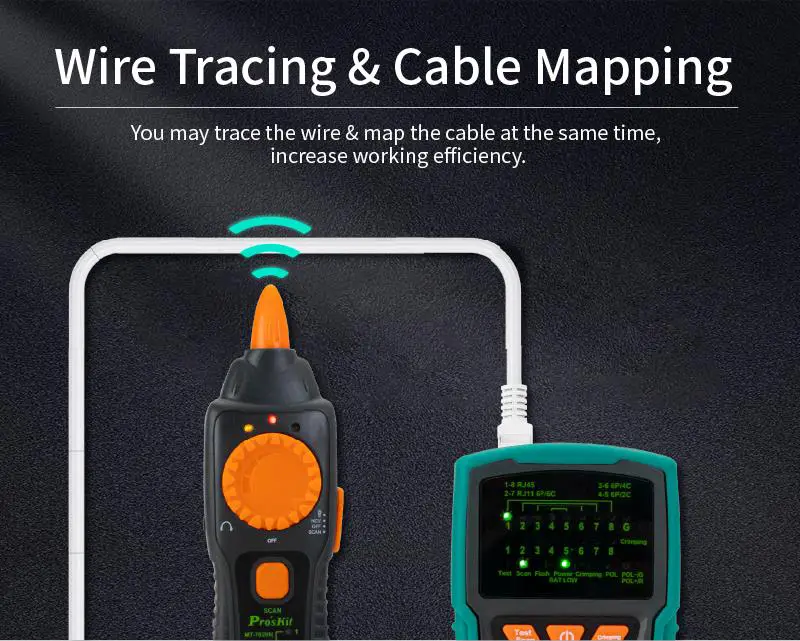

Wire tracing & cable mapping at the same time

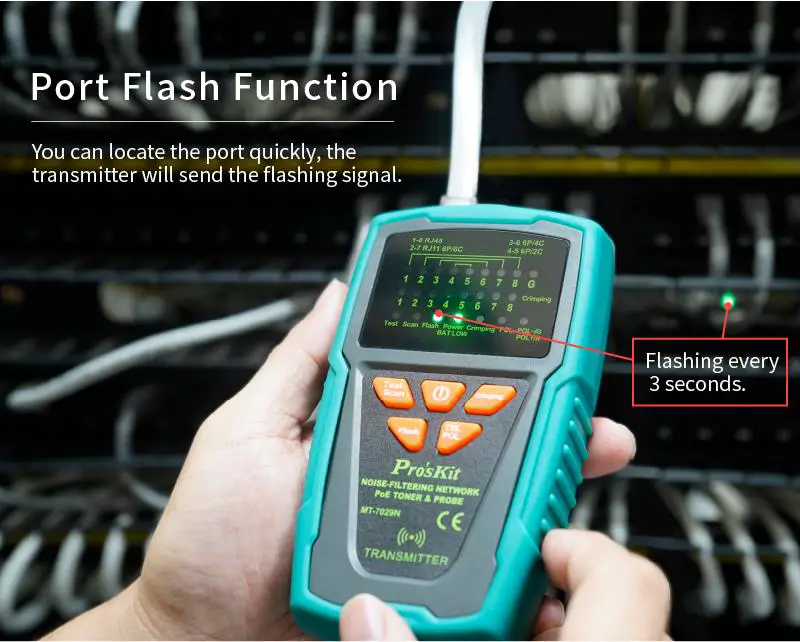

Easily locate the port with a flashing signal
PoE switches & STP wire tracing up to 3KM
Telephone line status/polarity indication
Cable mapping & status indication up to 300M for continuity, shorts, opens and crossover
Fast/slow scan function
Display cable status and troubleshoot wiring
Non- contact voltage detecting

Details

Products specifications

Warranty	2 Years

Warranty

WARRANTY

We offer 2 Years warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.

Downloads

User Manual

PDF
