NEW

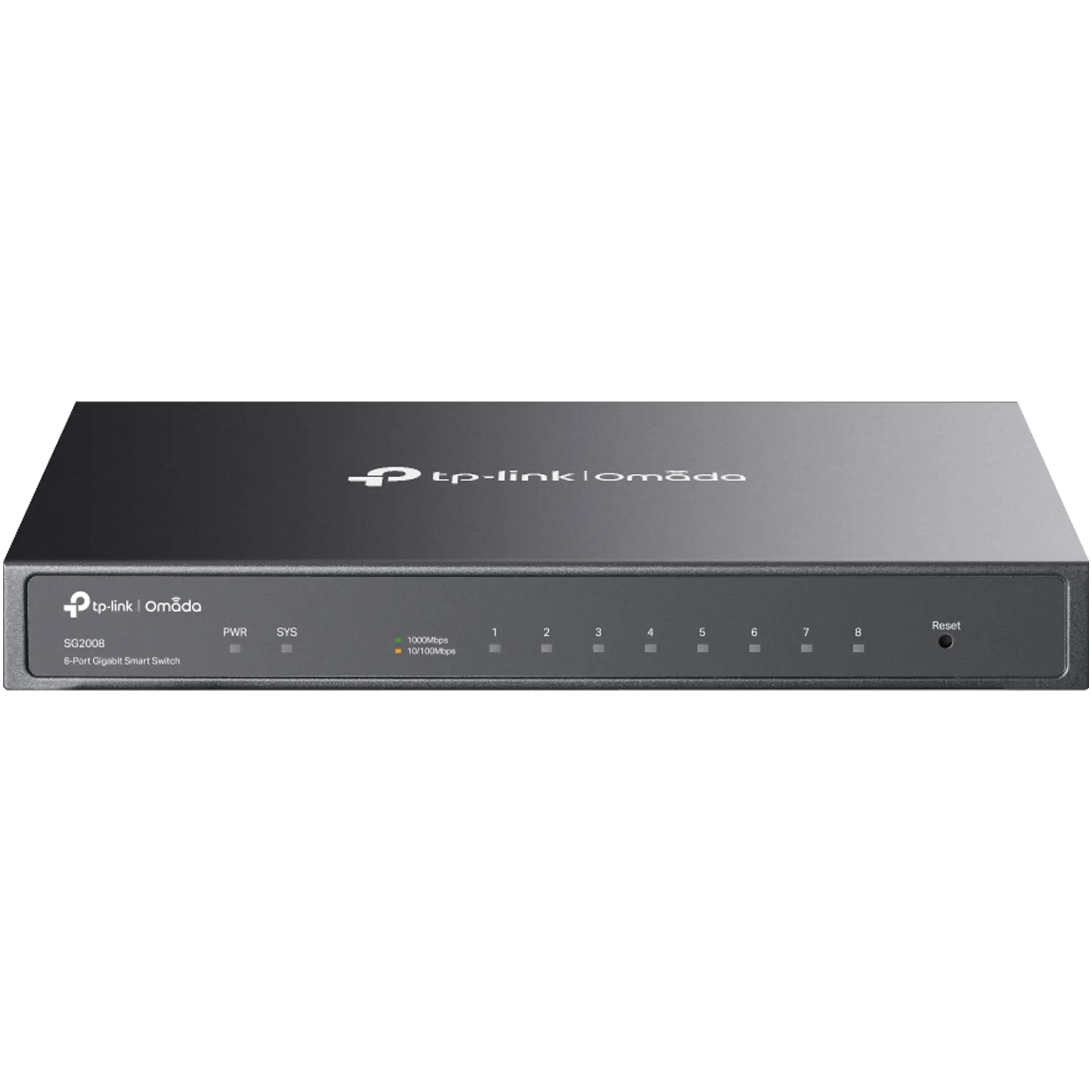

SG2008 Omada 8-Port Gigabit Smart Switch

by: TP-Link
SKU: D4187
The TP-Link Omada SG2008 is an 8-Port Gigabit Smart Switch designed for small to medium-sized business networks. With eight Gigabit RJ45 ports, including one Power Device (PD) port, it delivers fast, stable wired connections for a variety of devices.
$177.27

All Prices Shown are (ex GST)
Bulk Pricing
ea $177.27
i h

Overview

The TP-Link Omada ER7212PC is designed to meet the evolving demands of today’s business environments, combining reliable performance with robust security and adaptability. It supports a wide range of VPN protocols—such as IPSec, PPTP, L2TP, and OpenVPN—enabling secure remote connectivity for employees. Featuring high-speed NAT throughput reaching up to 942.1 Mbps for downloads and 940.2 Mbps for uploads, it provides fast and consistent Internet access across all connected devices. Its 110-watt PoE power capacity supports multiple PoE-enabled devices, offering a flexible networking setup. The fanless design contributes to noiseless operation, making it ideal for both office and quieter workspaces. Equipped with advanced encryption and security features, the Omada ER7212PC V1 delivers a dependable and secure networking solution for businesses aiming to improve both performance and protection.



Features

  • 3-in-1 Router: Integrates router, PoE switch, and Omada controller altogether to centrally manage up to 1 router, 2 switches, and 10 EAPs.
  • Professional Hardware: Dual-Core 1.2 GHz CPU with 1GB DDR3 memory provides stellar performance for up to 12× Gigabit ports.
  • Up to 4× WAN Ethernet Ports: Equipped with 2× Gigabit SFP WAN/LAN ports, 1× Gigabit RJ45 WAN port, and 1× Gigabit RJ45 WAN/LAN port.
  • 110W PoE Budget: 8× 802.3at/af-compliant PoE+ RJ45 LAN ports yield a total power supply of 110W*.
  • Centralised Management: Cloud access and the Omada app offer convenience and easy management.
  • Highly Secure VPN: Supports IPsec VPN, OpenVPN, and L2TP/PPTP VPN connections.
  • Easy Installation: Fanless and compact design for desktop and wall mounting.



Specifications

HARDWARE

Standards and Protocols: IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE 802.1q

TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, SNMP

Interface: 2 Gigabit SFP WAN/LAN ports, 1 Gigabit WAN port, 1 Gigabit LAN/WAN port, 8 Gigabit LAN ports



NETWORK MEDIA

10BASE-T: UTP category 3, 4, 5 cable (Max 100 m)

EIA/TIA-568 100Ω STP (Max 100 m)

100BASE-TX: UTP category 5, 5e cable (Max 100 m)

EIA/TIA-568 100Ω STP (Max 100 m)

1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m)



GENERAL

Fan Quantity: Fanless

Button: Reset Button

Power Supply: 53.5VDC/2.43A Adapter

PoE Budget: 8 ports PoE+ output, 110 W PoE Budget

Flash: 8Mb Nor + 4 GB EMMC

DRAM: 1 GB DDR3

Dimensions ( W x D x H ): 226 × 131 × 35 mm

Protection: 4 kV surge protection

Enclosure: Steel

Mounting: Desktop/Wall-mount



PERFORMANCE

Concurrent Session:    24,980

New Sessions /Second: 1,900

NAT (Static IP):    935.5 Mbps / 942.1 Mbps

NAT(DHCP):    940.2 Mbps / 941.7 Mbps

NAT(PPPoE):    913.1 Mbps / 935.2 Mbps

NAT (L2TP):    545.0 Mbps / 912.7 Mbps

NAT (PPTP):    523.0 Mbps / 912.8 Mbps

IPsec VPN Throughput (AES256):    168.5 Mbps

OpenVPN:    34 Mbps

L2TP VPN Throughput: Unencrypted: 845.3 Mbps, Encrypted: 333.2 Mbps

PPTP VPN Throughput: Unencrypted: 1012.6 Mbps, Encrypted: 401.4 Mbps

66 Byte Packet forwarding rate:    154,069 pps / 156,977 pps

1,518 Byte Packet forwarding rate:    81,193 pps / 81,193 pps



BASIC FUNCTIONS

WAN Connection Type: Static IP, Dynamic IP, PPPoE, PPTP, L2TP

DHCP: DHCP Server, DHCP Address Reservation, Multi-IP Interfaces, Multi-Net DHCP

IPv6: support

VLAN: 802.1Q VLAN

IPTV:: IGMP v2/v3 Proxy



ADVANCED FUNCTIONS

Advanced Routing: Static Routing, Policy Routing

Bandwidth Control: IP/Port-based Bandwidth Control, Load Balance, Intelligent Load Balance, Application Optimized Routing, Link Backup, Online Detection

NAT: Multi-Net NAT, Virtual Server, NAT-DMZ, FTP/H.323/SIP/IPSec/PPTP ALG, UPnP

Session Limit: IP-based Session Limit



VPN

IPsec VPN

- 20 IPSec VPN Tunnels

- LAN-to-LAN, Client-to-LAN

- Main, Aggressive Negotiation Mode

- AES128, AES192, AES256 Encryption Algorithm

- IKE v1/v2

- SHA1, SHA2 Authentication Algorithm

- NAT Traversal (NAT-T)

- Dead Peer Detection (DPD)

- Perfect Forward Secrecy (PFS)



PPTP VPN

- PPTP VPN Server

- PPTP VPN Client (10)

- 16 Tunnels

- PPTP with MPPE Encryption

L2TP VPN

- L2TP VPN Server

- L2TP VPN Client (10)

- 16 Tunnels

- L2TP over IPSec



OpenVPN

- OpenVPN Server

- OpenVPN Client (10)§

- 16 OpenVPN Tunnels



SECURITY

Filtering: URL Filtering

Attack Defense: TCP/UDP/ICMP Flood Defense, Block TCP Scan (Stealth FIN/Xmas/Null), Block Ping from WAN

Access Control:    Source/Destination IP Based Access Control



AUTHENTICATION

Web Authentication

- No Authentication

- Simple Password

- Hotspot (Local User / Voucher / SMS / Radius)

- External Radius Sever

- External Portal Sever

- Facebook



MANAGEMENT

Omada App: Yes

Cloud Access: Yes

Service:Dynamic DNS (Dyndns, No-IP)

Maintenance

- Web Management Interface

- Remote Management

- Export & Import Configuration

- SNMP v1/v2c/v3

- Syslog Support



Management Features

- Automatic Device Discovery

- Intelligent Network Monitoring

- Abnormal Event Warnings

- Unified Configuration

- Reboot Schedule

- Captive Portal Configuration

- Management up to 1 Router, 2 Switches and 10 EAPs



OTHERS

Certification: CE, FCC, RoHS

Package Contents

- ER7212PC

- Power Adapter

- Power Cord

- Quick Installation Guide

System Requirements

- Microsoft Windows 98SE, NT, 2000, XP, Vistaâ„¢ or Windows 7/8/8.1/10

- MAC OS, NetWare, UNIX or Linux

Details

Products specifications

Warranty 3 Years
Tech & Data
Type Wired Ethernet

Warranty

WARRANTY

We offer 3 Years warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.
