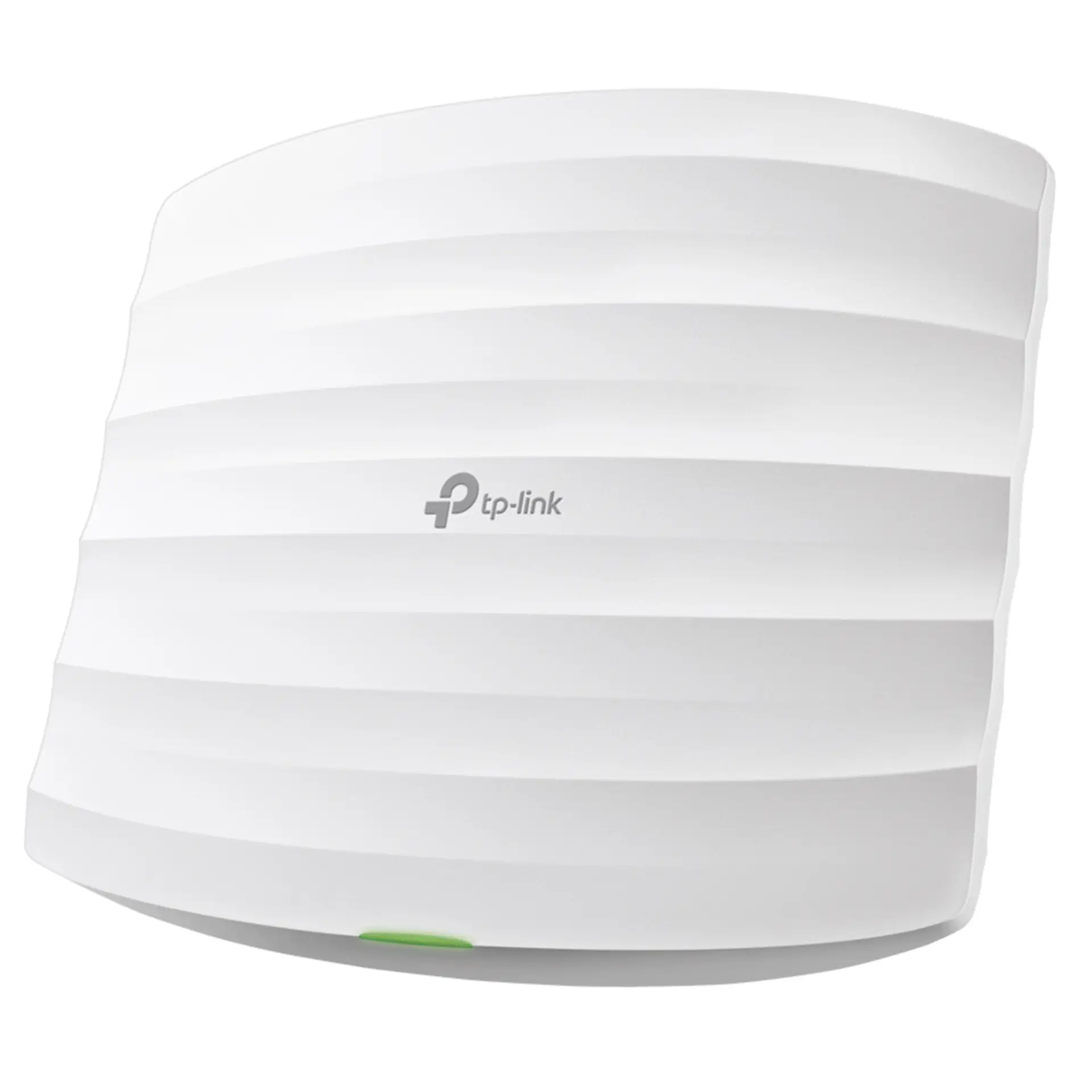

TP-Link EAP223 Omada AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point delivers robust, business-class Wi-Fi with dual-band speeds up to 1317 Mbps (450 Mbps on 2.4 GHz and 867 Mbps on 5 GHz).

EAP223 Wireless MU-MIMO Gigabit Ceiling Mount Access Point

Name: EAP223 Wireless MU-MIMO Gigabit Ceiling Mount Access Point
SKU: D4346A
Price: 151.14 AUD
Availability: InStock

by: TP-Link

SKU: D4346A

$151.14

All Prices Shown are (ex GST)

Bulk Pricing

ea $151.14

i h

Overview
Details
Warranty

Overview

TP-Link EAP223 Omada AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point delivers robust, business-class Wi-Fi with dual-band speeds up to 1317 Mbps (450 Mbps on 2.4 GHz and 867 Mbps on 5 GHz). Integrated with the Omada SDN platform, it offers centralized cloud management, zero-touch provisioning, and intelligent monitoring . Advanced features like MU-MIMO, Beamforming, and Airtime Fairness ensure optimal performance. Seamless roaming maintains uninterrupted connections during movement. Flexible PoE support (802.3af/at and Passive PoE) allows versatile installations. A secure guest network with multiple authentication options enhances user access control.

Features

Fast Dual-Band Wi-Fi: Simultaneous 450 Mbps on 2.4 GHz and 867 Mbps on 5 GHz totals 1317 Mbps Wi-Fi speeds.
Integrated into Omada SDN: Zero-Touch Provisioning (ZTP), Centralized Cloud Management, and Intelligent Monitoring.
Centralised Management: Cloud access and Omada app for ultra convenience and easy management.
Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations.
PoE Support: Support both standard 802.3af/at and Passive PoE (PoE adapter is not included) for flexible installations.
Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.
Advanced Wireless Tech: Optimize network performance with MU-MIMO, Band Steering, Airtime Fairness and Beamforming technologies.

Specifications

HARDWARE FEATURES

Interface: Gigabit Ethernet (RJ-45) Port×1 (Support IEEE802.3af/at PoE and Passive PoE)

Physical Security Lock: Yes

Button: Reset

Power Supply: 802.3af/at PoE- 48V Passive PoE (+4,5pins; -7,8pins. PoE Adapter IS NOT Included)

Power Consumption: 9.7W

Dimensions ( W x D x H ) 205.5 × 181.5 × 37.1mm

Antenna Type: 3 Internal Omni

- 2.4 GHz: 4 dBi

- 5 GHz: 5 dBi

Mounting: Ceiling /Wall Mounting (Kits included)

WIRELESS FEATURES

Wireless Standards: IEEE 802.11ac/n/g/b/a

Frequency: 2.4 GHz and 5 GHz

Signal Rate

- 5 GHz:Up to 867 Mbps

- 2.4 GHz:Up to 450 Mbps

Wireless Functions

- Multiple SSIDs (Up to 15 SSIDs, 8 for 2.4GHz band, 7 for 5GHz band)

- Enable/Disable Wireless Radio

- Automatic Channel Assignment

- Transmit Power Control (Adjust Transmit Power on dBm)

- QoS(WMM)

- Seamless Roaming*

- Omada Mesh*

- Band Steering

- Load Balance

- MU-MIMO

- Airtime Fairness

- Beamforming

- Rate Limit

- Reboot Schedule

- Wireless Schedule

- Wireless Statistics based on SSID/AP/Client

Wireless Security

- Captive Portal Authentication*

- Access Control

- Wireless Mac Address Filtering

- Wireless Isolation Between Clients

- SSID to VLAN Mapping

- Rogue AP Detection

- 802.1X Support

Transmission Power

- CE: ≤20 dBm(2.4 GHz, EIRP), ≤23 dBm(5 GHz, EIRP)

- FCC: ≤24 dBm(2.4 GHz), ≤22 dBm(5 GHz)

MANAGEMENT

Omada App: Yes

Centralized Management:

- Omada Hardware Controller OC300

- Omada Hardware Controller OC200

- Omada Software Controller

- Omada Cloud-Based Controller

Cloud Access: Yes, through

- OC300

- OC200

- Omada Software Controller

- Omada Cloud-Based Controller

Email Alerts: Yes

LED ON/OFF Control: Yes

Management MAC Access Control: Yes

SNMP: v1,v2c

System Logging: Local/Remote Syslog

SSH: Yes

Web-based Management: HTTP/HTTPS

L3 Management: Yes

Multi-site Management: Yes

Management VLAN: Yes

Zero-Touch Provisioning: Yes. Requiring the use of Omada Cloud-Based Controller

OTHERS

Certification: CE, FCC, RoHS

Package Contents

- AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point EAP223

- Mounting Kits

- Installation Guide

System Requirements Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux

Environment

- Operating Temperature: 0–40 ℃ (32–104 ℉)

- Storage Temperature: -40–70 ℃ (-40–158 ℉)

- Operating Humidity: 10–90% RH non-condensing

- Storage Humidity: 5–90% RH non-condensing
