Acrylic MegaStand for Arduino

by: Inventa
SKU: K9675

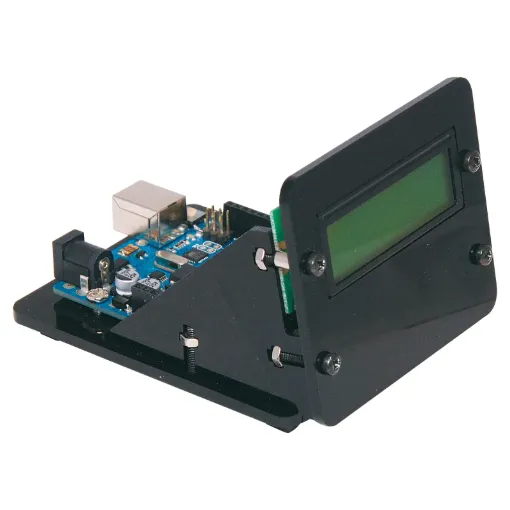

A cut down MegaBox which provides a backlit 16x2 LCD for simple readouts, plus room to customise the front panel with buttons or IR sensor. UNO (sold separately) fits neatly behind the screen and provides room for add-on shields as required.
$26.14

All Prices Shown are (ex GST)
Bulk Pricing
ea $26.14
4+ $24.77
i h

Overview

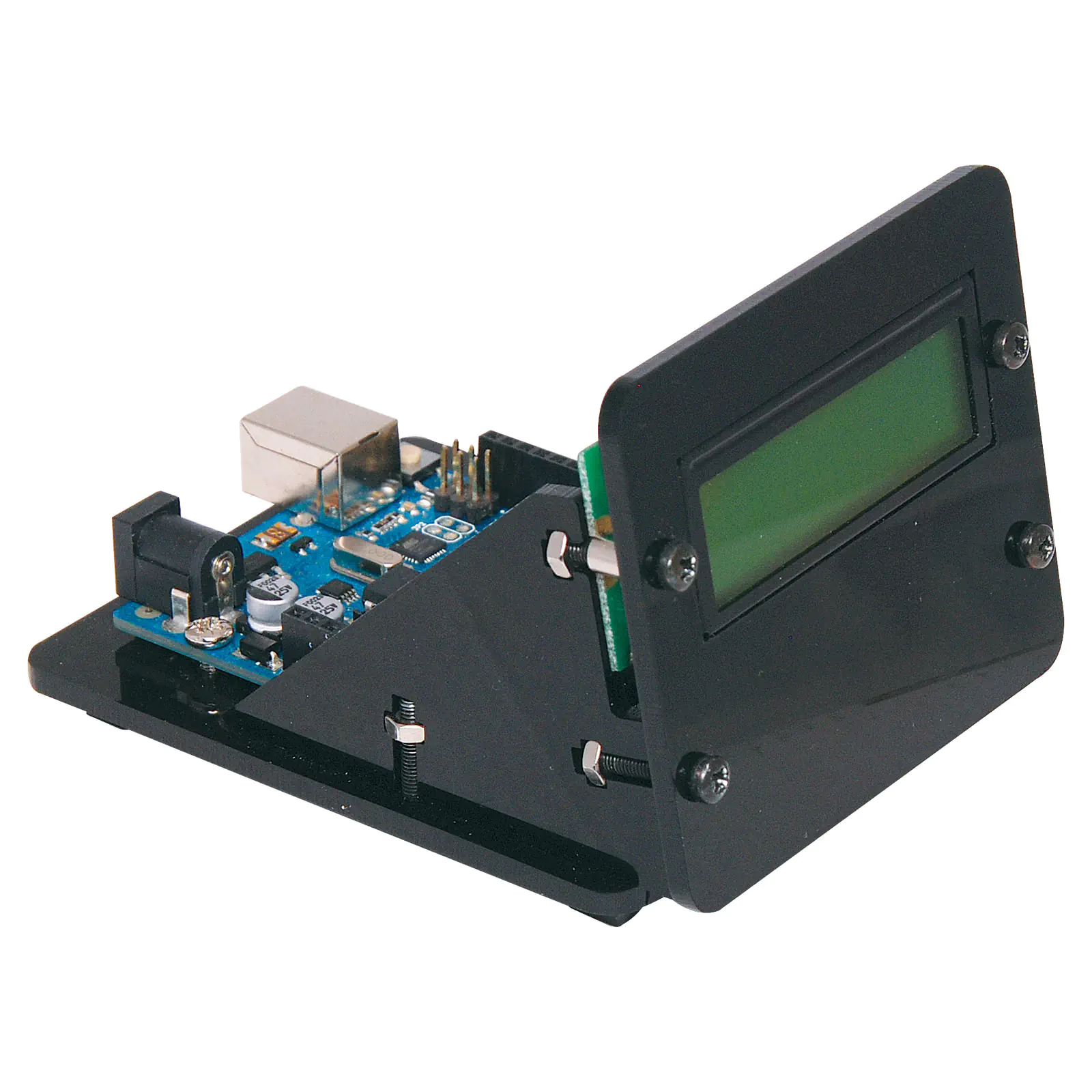

A cut down MegaBox which provides a backlit 16x2 LCD for simple readouts, plus room to customise the front panel with buttons or IR sensor. UNO (sold separately) fits neatly behind the screen and provides room for add-on shields as required. This kit does include the Z 7013 16x2 Compact Green LED Backlit Alphanumeric LCD Module. The specifications for this module can be downloaded below.

Please Note: Arduino boards and shield modules sold separately.



Features:

  • Easy to build from acrylic and M3 hardware.
  • Supplied in kit form.
  • Provides a neat desktop display for monitoring an Arduino project.
  • Plenty of clearance for shield mounting on rear.
  • Front panel can be drilled out to add in control buttons or switches.

Details

Products specifications

Warranty 12 Months

Warranty

WARRANTY

We offer 12 Months warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.

Downloads

.pdf
Z 7013 Specification Sheet
PDF
