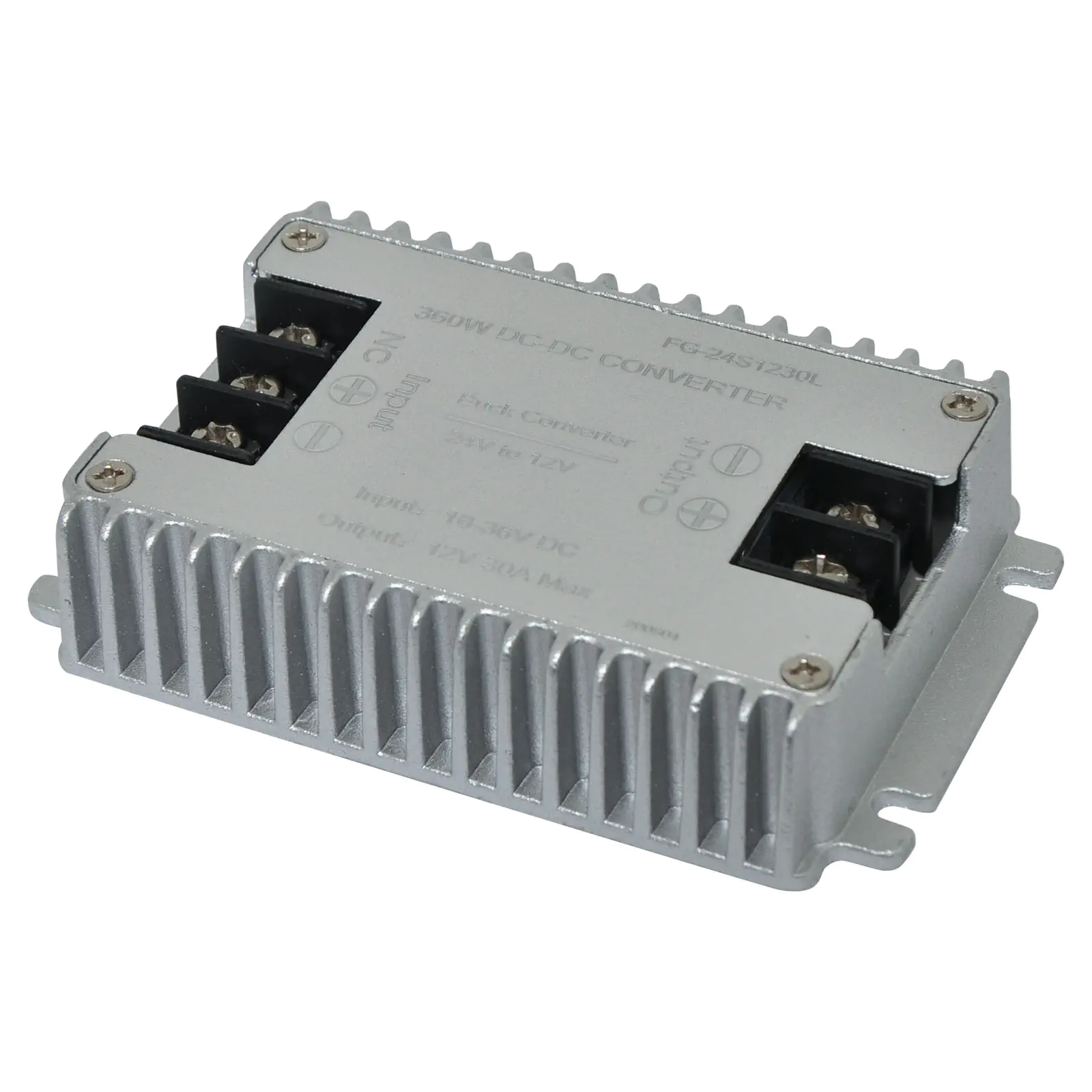

Step Down 24V to 12V 30A 360W DC-DC Converter

by: Powertran
SKU: M8169
This converter provides a regulated 12V d.c. output at a maximum of 30A from a typical 24V battery. Dimensions: 110x70x23mm
$81.77

All Prices Shown are (ex GST)
Bulk Pricing
ea $81.77
2+ $72.68
4+ $63.59
i h

Overview

Ideal for powering 12V automotive appliances from a 24V battery. This device converts a nominal 24V DC input to 13.8V DC. Suitable for use with stereos, CB radios, navigation equipment, lighting etc in trucks, buses, cars or boats. Epoxy sealed IP65 aluminium case is suitable for engine bay installation. 30A maximum output. Dimensions: 110x70x23mm





Specifications:



Input voltage: 24V DC nominal

Operation voltage range: 18-36V DC

No-load current: 50mA (max)

Fuse: 30A (built-in)

Under voltage shutdown: 18V

Under voltage recovery: 20V

Output voltage: 11.9-12.15V

Output current: 0-30A

Voltage regulation: ±1%

Load regulation: ±1%

Regulator Accuracy: ±1%

Recommended cabling: 14AWG (>50cm a larger gauge cable is recommended.)

Low voltage Protection

Short circuit protection

Over current protection



Features:

  • High efficiency: 95.5%
  • Input reversing polarity protection
  • Input transient absorption protection
  • Support -40°C environment
  • 100% full load burn in test
  • IP65 rating
  • Over current, over temperature and short circuit protection
  • Non-isolated module

Details

Products specifications

Warranty 12 Months

Warranty

WARRANTY

We offer 12 Months warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.
