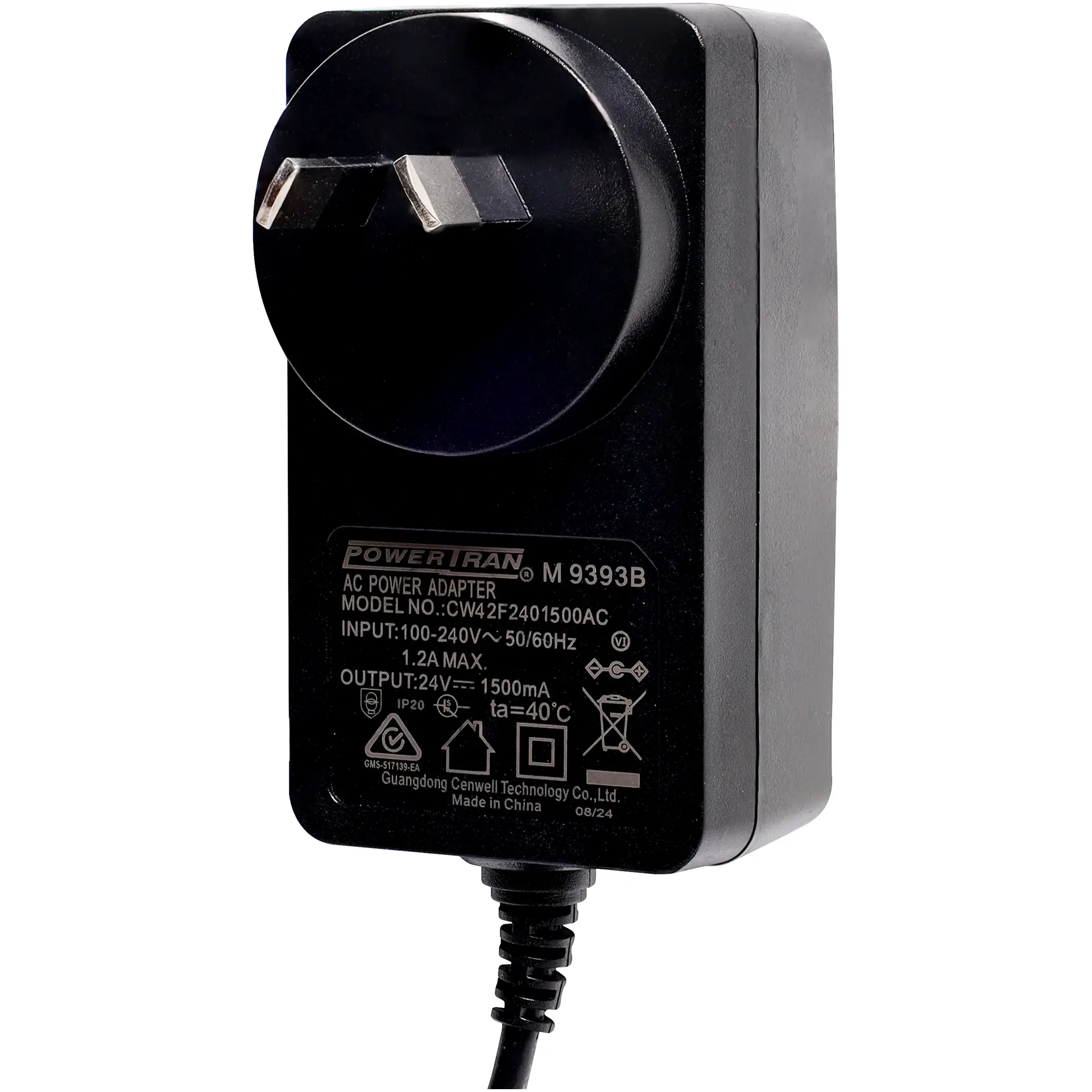

24V DC 1.5A Appliance Power Supply Adapter

by: Powertran
SKU: M9393B
24V DC Switchmode Plugpack Supplied with reversible polarity 2.1mm DC tip. Compact design with high current regulated output.
$29.55

All Prices Shown are (ex GST)
Bulk Pricing
ea $29.55
2+ $26.32
4+ $23.59
i h

Overview

24V DC, 1.5 Amp switch mode plug pack supplied with a fixed positive to tip 2.1mm DC jack (2.1ID x 5.5OD x 10L). Compact design with high current regulated output. Energy authority approved. MEPS approved.





Specifications:



Rated input voltage: 100-240Vac

Operating range: 90-264Vac

Rated input frequency: 50/60Hz

Variation Frequency: 50/60Hz +/- 3Hz

Rated input current: 0.8A Max.

Primary current protection: An adequate internal fuse on the AC input line is provide

Power consumption (no loading): 0.1W Max. (Input voltage 115V and 230V)

Configuration: II Conductor

AC Leakage Current: 0.25mA Max.At240Vac input

DC output voltage: 24V

Minimum load current: 0.01A

Rating load current: 1.5A

Rating output power: 36W

Line regulation: The line regulation is less than ±5% while measuring at rated load and +/-10% of input voltage changing.

Load regulation: The load regulation for +12V is less than ±5%, at measured output load from 0% to 100% rated load

Temperature: Operating: 0°C +40°C, Non-Operating: -20°C +80°C

Humidity: Operating: 10%~90% (Non Condensing), Non-Operating: 10%~90% (Non Condensing)

Barrel length: 10mm

Plug tip type: 5.5mm outer diameter and 2.1mm inside diameter

Polarity: Positive centre

Cable length: 1.8m

MEPS efficiency level: VI

Dimensions: 49W x 85H x 42D mm.



Features:

  • Australian standards compliant
  • Suitable for a range of electronic devices
  • Compatible with Australian mains power point

Details

Products specifications

Warranty 12 Months
Power
Tip 2.1mm Fixed Tip
Type AC to DC Power Adapters
