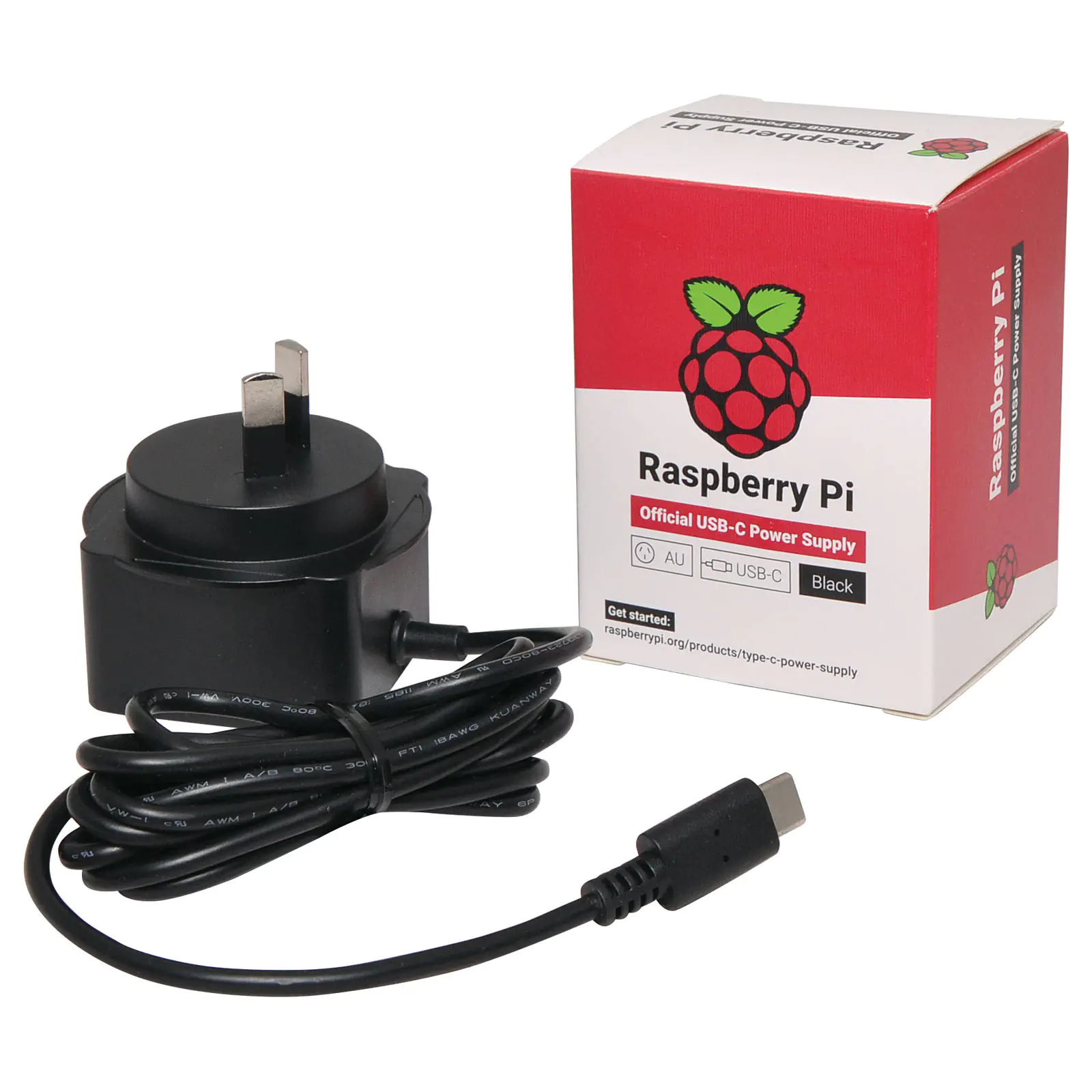

5.1V DC 3A Raspberry Pi 4 Power Supply

by: Raspberry Pi
SKU: M8821
Official Raspberry Pi power supply, ideal for use with the Raspberry Pi 4 Model B board. This power supply comes with USB Type C lead and AU mains plug. It supports up to 3A of current to power devices through four USB ports on the board.
$20.00

All Prices Shown are (ex GST)
Bulk Pricing
ea $20.00
i h

Overview

Official Raspberry Pi power supply, ideal for use with the Raspberry Pi 4 Model B board. This power supply comes with USB Type C lead and AU mains plug. It supports up to 3A of current to power devices through the USB ports on the board.





Specifications:



Output:

Output voltage: +5.1V DC

Minimum load current: 0A

Nominal load current: 3.0A

Maximum power: 15.3W

Load regulation: ±5%

Line regulation: ±2%

Ripple & noise: 120mVp-p

Rise time: 100ms maximum to regulation limits for DC outputs

Turn-on delay: 3000ms maximum at nominal input AC voltage and full load

Protection: Short circuit protection, Overcurrent protection, Over temperature protection

Efficiency: 81% minimum (output current from 100%, 75%, 50%, 25%), 72% minimum at 10% load

Output cable: 1.5m 18AWG

Output connector: USB Type-C



Input:

Voltage range: 100-240Vac (rated), 96-264Vac (operating)

Frequency: 50/60Hz ±3Hz

Current: 0.5A maximum

Power consumption (no load): 0.075W maximum

Inrush current: No damage shall occur and the input fuse shall not blow

Details

Products specifications

Warranty 12 Months
