NEW

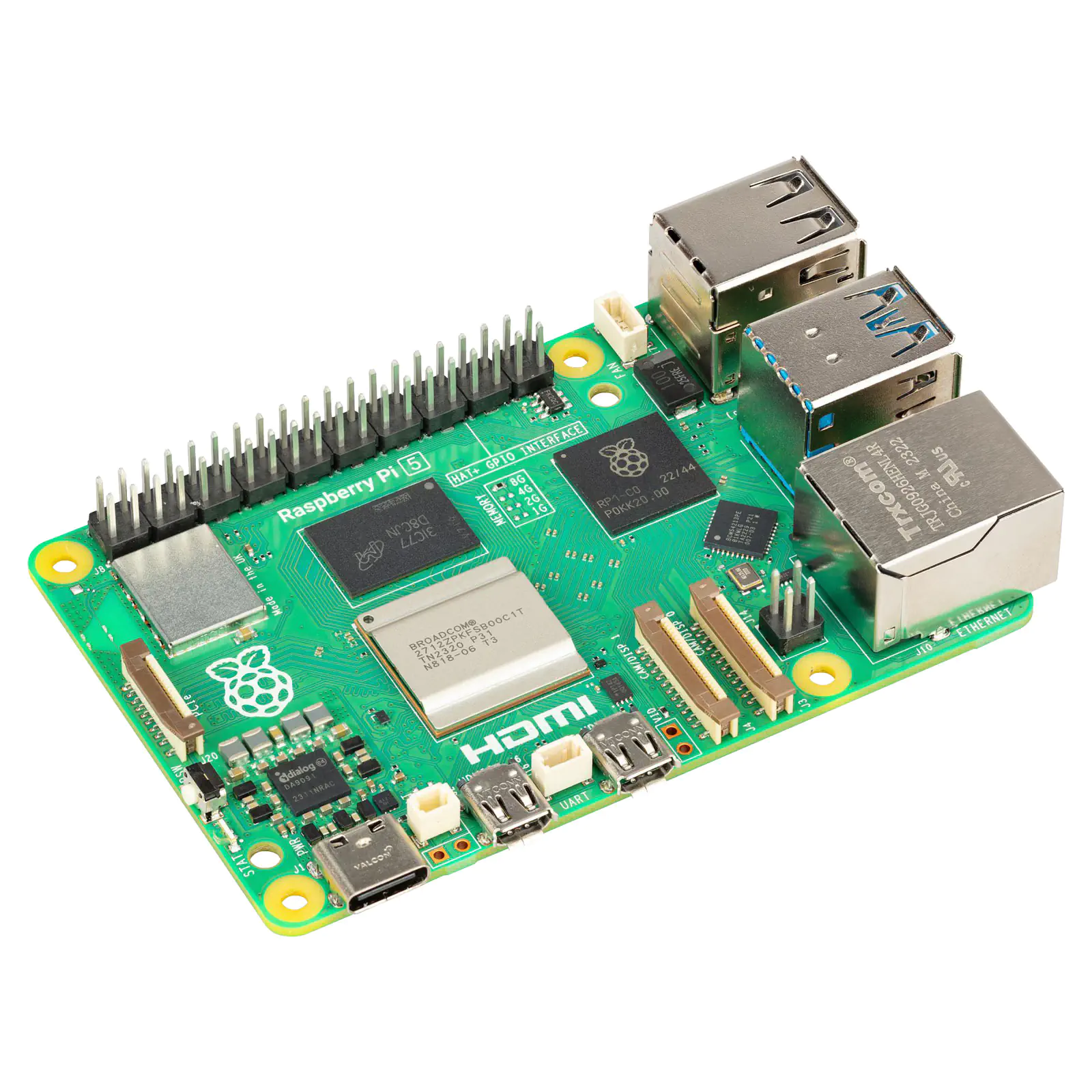

The Raspberry Pi 5 4GB single board computer. The bandwidth speed and performance of the new Raspberry Pi 5 is a step up from earlier models.

Raspberry Pi 5 Single Board Computer 4GB

Name: Raspberry Pi 5 Single Board Computer 4GB
SKU: Z6302J
Price: 205.45 AUD
Availability: InStock

by: Raspberry Pi

SKU: Z6302J

The Raspberry Pi 5 4GB single board computer. The bandwidth speed and performance of the new Raspberry Pi 5 is a step up from earlier models.

$205.45

All Prices Shown are (ex GST)

Bulk Pricing

ea $205.45

i h

Overview
Details
Warranty

Overview

The Raspberry Pi 5 is the latest product from Raspberry Pi. The speed and performance of the new Raspberry Pi 5 is a step up from earlier models. Whether you're editing documents, browsing the web with a bunch of tabs open, juggling spreadsheets or drafting a presentation, you'll find the experience smooth and very recognisable — but on a smaller, more energy-efficient and much more cost-effective machine. With the new model you can run two monitors at once in 4K. With the added feature of no fans the Raspberry Pi 5 is built using the RP1 I/O controller, a package containing silicon designed in-house at Raspberry Pi.

Specifications:

Broadcom BCM2712 2.4GHz quad-core 64-bit Arm Cortex-A76 CPU, with cryptography extensions, 512KB per-core L2 caches and a 2MB shared L3 cache

VideoCore VII GPU, supporting OpenGL ES 3.1, Vulkan 1.2

Dual 4Kp60 HDMI® display output with HDR support

4Kp60 HEVC decoder

LPDDR4X-4267 SDRAM (4GB)

Dual-band 802.11ac Wi-Fi®

Bluetooth 5.0 / Bluetooth Low Energy (BLE)

microSD card slot, with support for high-speed SDR104 mode

2 × USB 3.0 ports, supporting simultaneous 5Gbps operation

2 × USB 2.0 ports

Gigabit Ethernet, with PoE+ support (requires separate PoE+ HAT)

2 × 4-lane MIPI camera/display transceivers

PCIe 2.0 x1 interface for fast peripherals (requires separate M.2 HAT or other adapter)

5V/5A DC power via USB-C, with Power Delivery support

Raspberry Pi standard 40-pin header

Real-time clock (RTC), powered from external battery

Power button

Features:

Broadcom BCM2712 quad-core Arm Cortex A76 processor @ 2.4GHz
RAM variants up to 8GB
Interchangeable Camera and DSI display connectors
Dual 4Kp60
Real-time clock
Power button
UART debug port

RP1

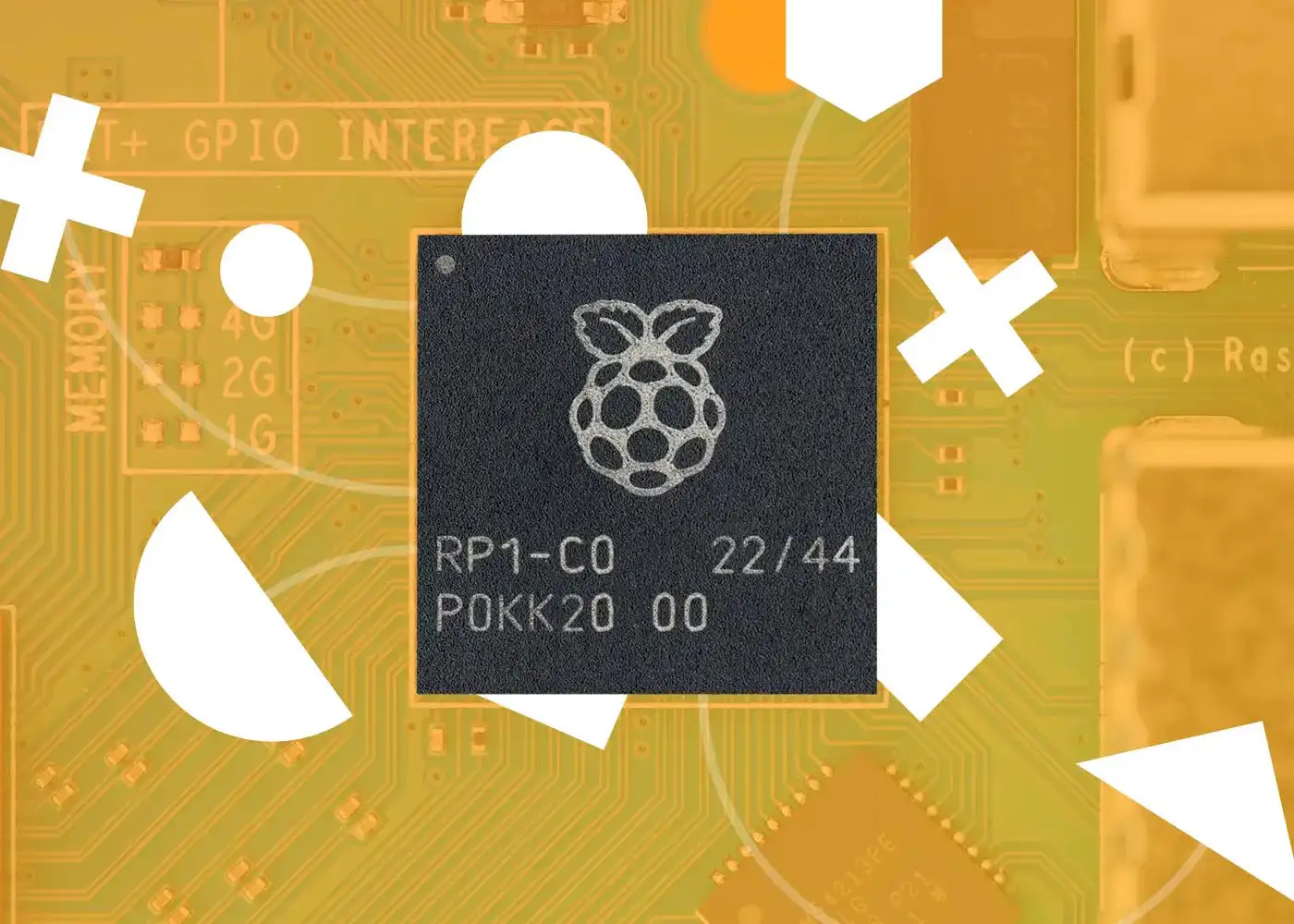

Raspberry Pi 5 is built using the RP1 I/O controller, a package containing silicon designed in-house at Raspberry Pi.
USB 3 has more total bandwidth, for much faster transfer speeds. Camera and DSI display connectors are interchangeable, so you can have one of each, or two the same.

More than twice as fast and infinitely smoother.

Raspberry Pi 5 features the Broadcom BCM2712 quad-core Arm Cortex A76 processor @ 2.4GHz, making it up to three times faster than the previous generation. With RAM variants up to 8GB, this is the fastest, smoothest Raspberry Pi experience yet.

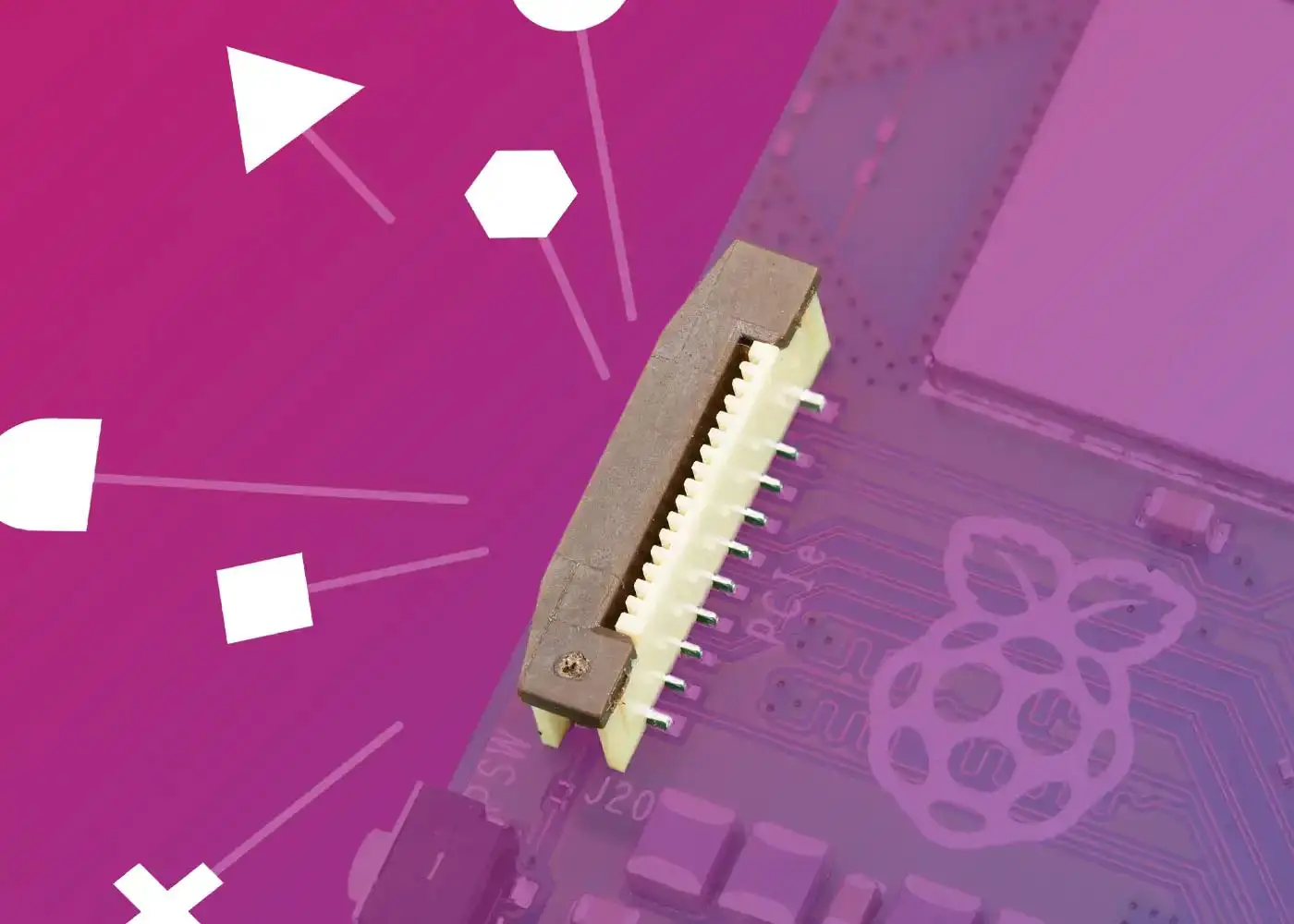

All aboard the PCI express.

This addition to Raspberry Pi allows you to connect an M.2 SSD to your Raspberry Pi, giving you speedy data transfer and super-fast boot.

Details

Products specifications

Warranty	12 Months

Warranty

WARRANTY

We offer 12 Months warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.
