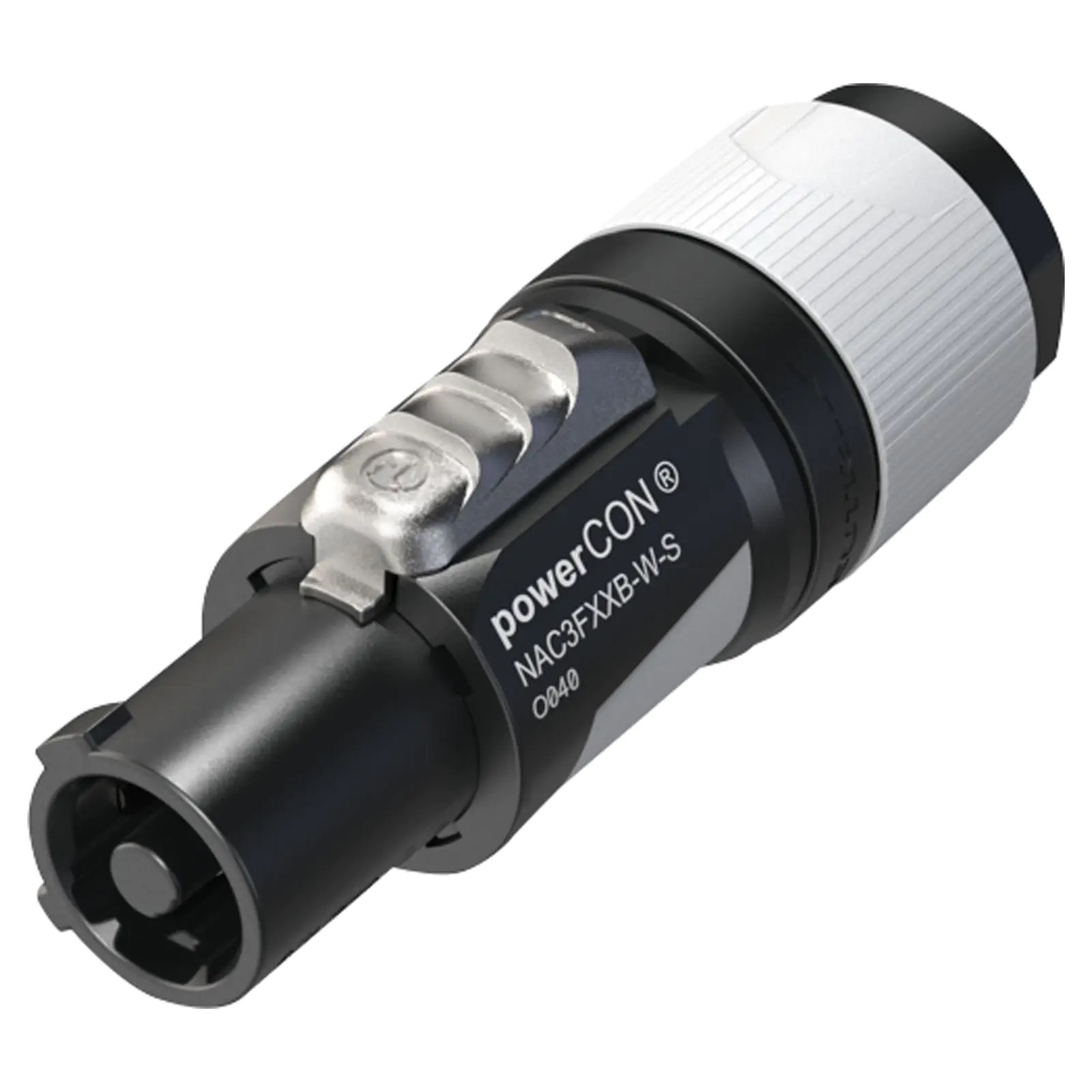

Powercon Female Line 240V Mains Power Out 16A NAC3FXXB-W-S

by: Neutrik
SKU: P0772A
Extra heavy duty Neutrik Powercon connector as used in commercial lighting and audio applications. Power Out version. NAC3FXXB-W-S 20A 240V. SAA approved.
$23.18

All Prices Shown are (ex GST)
Bulk Pricing
ea $23.18
5+ $21.77
10+ $21.36
i h

Overview

Extra heavy duty Neutrik Powercon connector as used in commercial lighting and audio applications. Power Out version. NAC3FXXB-W-S. SAA approved.





Specifications:



Electrical

Contact resistance: = 2 mΩ

Dielectric strength: > 3 kVac (after mating cycles)

Insulation resistance: > 10 GΩ (initially)

Number of electrical contacts: 2 + PE

Rating Europe: EN 60320-1: 16 A 250 V AC, CBC

Rating USA / Canada: cUL 60320-1: 20 A 127 V AC, CBC



Mechanical

Cable O.D.: 6 - 12 mm

Lifetime: typically 5’000 mating cycles

Wiresize (mm²): 1.5 – 2.5 mm²

Wiresize (AWG): 16 – 12 AWG, see above cable list

Locking device: Twist lock

Termination: Screw type terminals



Material

Contact plating: Ag

Contacts: Copper Alloy

Insert: Polyamide (PA6.6)

Locking element: Zinc diecast

Shell: Polyamide (PA6) / TPE

Strain relief: Polyketone

Bushing: Polypropylene / TPE



Environmental

Temperature range: -33 °C to + 80 °C

Protection class: IP20

Flammability acc. to UL94: V-0



Features:

  • Locking 240 V ac appliance coupler
  • 3 contacts for line, neutral and premating safety ground
  • Fast and easy twist lock latching system
  • Extremely robust and reliable
  • Ergonomic design
  • User friendly latch design for easy handling
  • Unique Neutrik chuck type strain relief





When connecting to mains power this must be installed by a licensed electrician.

To be installed in accordance to the latest issue of AS/NZ 3000 and by a licensed electrician as ruled in the state of installation.
