Neutrik NC3FD-L-1 3 Pin XLR Female Chassis Mount

by: Neutrik
SKU: P0850

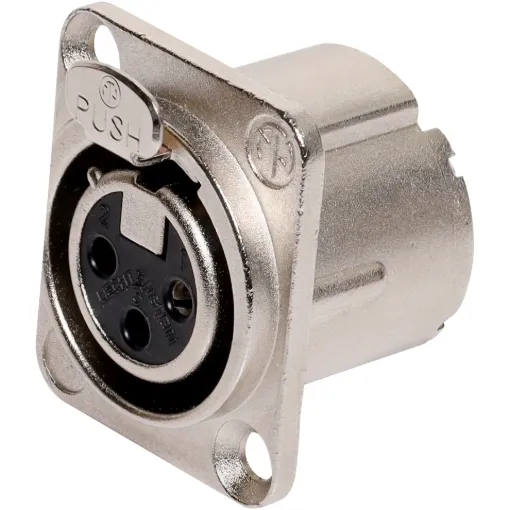

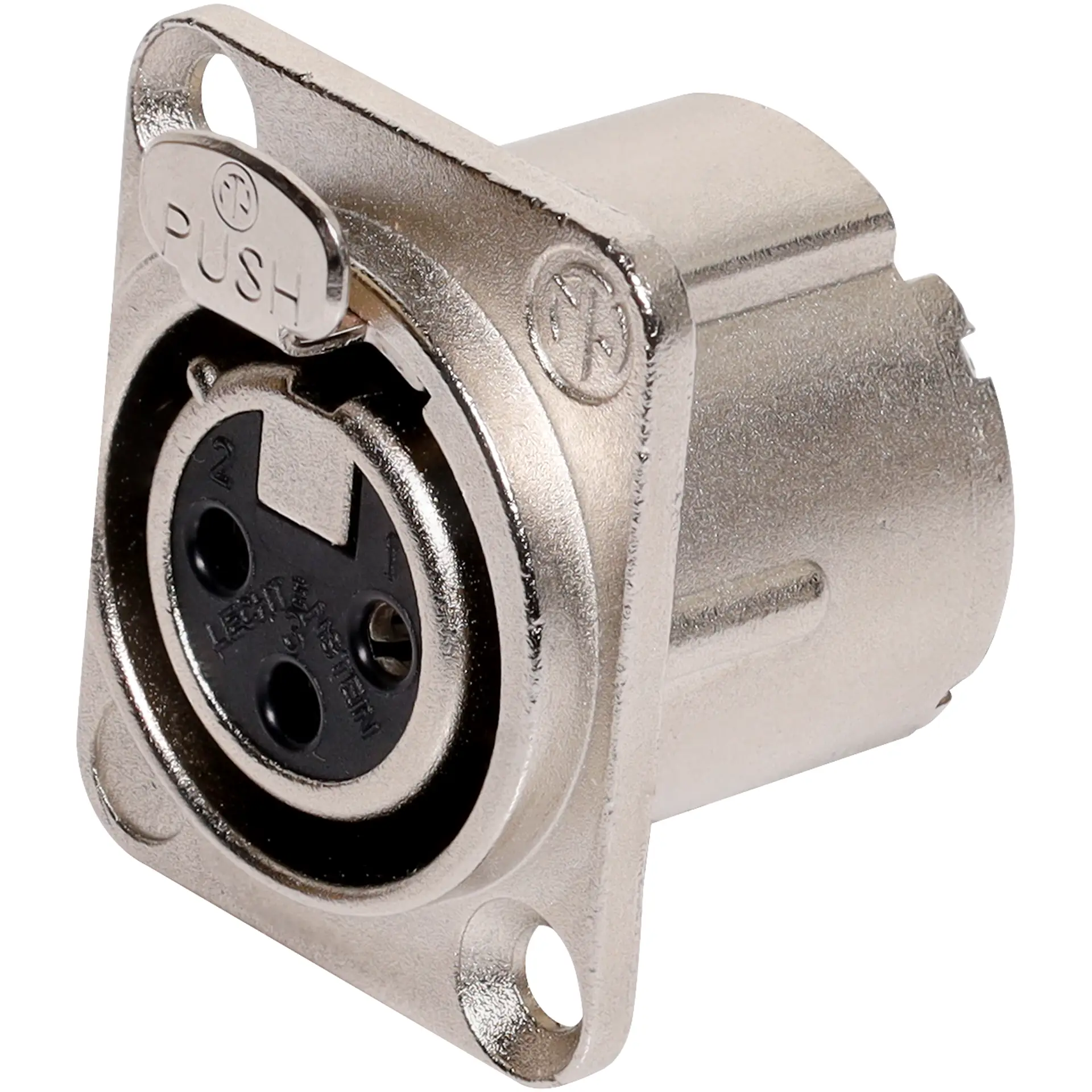

Neutrik NC3FD-L-1 3 Pin XLR female panel mount connector. Neutrik connectors are made from rugged diecast aluminium and are designed to be compact yet stand up to the rigours of everyday use. RF shielding via 3 point contact to shell. Fitted with M3 mounting holes.
$11.77

All Prices Shown are (ex GST)
Bulk Pricing
ea $11.77
10+ $11.14
40+ $10.23
i h

Overview

Neutrik NC3FD-L-1 3 Pin XLR female panel mount connector. Neutrik connectors are made from rugged diecast aluminium and are designed to be compact yet stand up to the rigours of everyday use. RF shielding via 3 point contact to shell. Fitted with M3 mounting holes.





Specifications:



Electrical

Capacitance between contacts: ≤ 4 pF

Contact resistance: ≤ 5 mΩ (inner)

Dielectric strength: 1,5 kVdc

Insulation resistance: > 2 GΩ (initial)

Rated current per contact: 16 A

Rated voltage: < 50 V



Mechanical

Insertion force: ≤ 20 N

Withdrawal force: ≤ 20 N

Lifetime: > 1000 mating cycles

Wire size max.: 2.5 mm²

Wire size max.: 14 AWG

Wiring: Solder contacts

Locking device: Latch lock

Chassis shape: D



Material

Contact plating: 2 µm Ag over 2 µm Ni

Contacts: Bronze (CuSn8)

Insert: Polyamide (PA 6.6 30 % GR)

Locking element: Steel Ck67

Shell: Zinc diecast (ZnAl4Cu1)

Shell plating: Nickel



Environmental

Approvals: UL

Flammability: UL 94 HB

Standard compliance: IEC 61076-2-103

Protection class: IP 40

Solderability: Complies with IEC 68-2-20

Temperature range: -30 °C to +80 °C



Features:

  • Robust "D" metal shell
  • Standardized D sized 24 mm panel cutout
  • Solder cups on 3 - 7 pole version

Details

Products specifications

Warranty 12 Months
Connectors
Gender Sockets

Warranty

WARRANTY

We offer 12 Months warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.

Downloads

.pdf
Dimension Drawing
PDF
