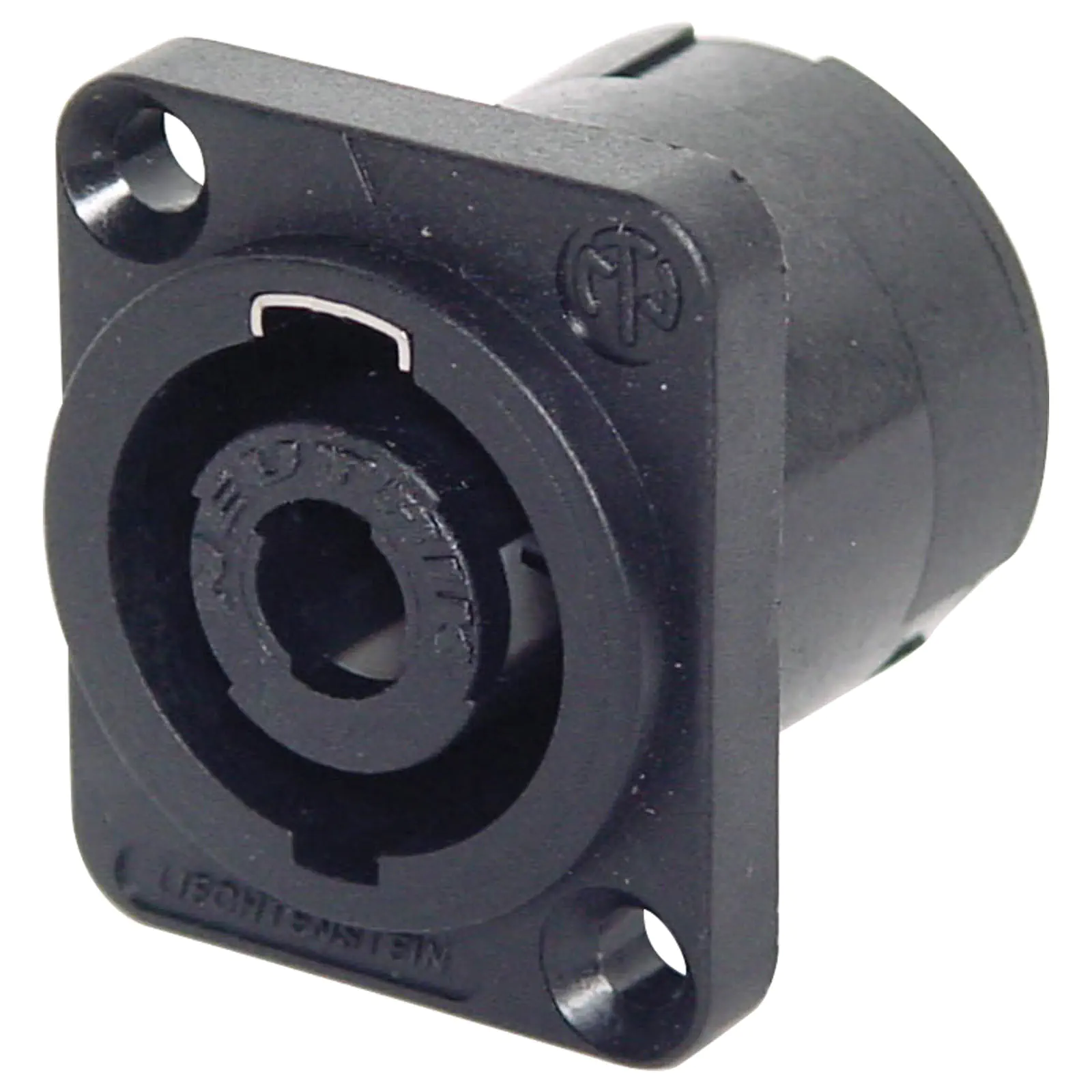

Speakon Socket Chassis Mount NL4MP

by: Neutrik
SKU: P0792
Heavy duty 4 pin connectors as used on professional amplifiers and speaker boxes. Handles up to 30A current. Genuine Speak-On connector manufactured by Neutrik.
$8.86

All Prices Shown are (ex GST)
Bulk Pricing
ea $8.86
5+ $8.41
20+ $6.59
i h

Overview

Heavy duty 4 pin Neutrik SpeakOn NL4MP connectors as used on professional amplifiers and speaker boxes. Handles up to 30A current. Genuine SpeakOn connector manufactured by Neutrik.

Attention: speakON is NOT to be used as an AC mains or power supply connector!







Specifications:



Electrical

Contact resistance: = 3mΩ (inner) (after lifetime)

Dielectric strength: 4kVdc (peak)

Insulation resistance: >1 GΩ (after damp heat)

Rated current per contact: 30A rms continuous

Rated current per contact: 40A audio signal, duty cycle 50 %

Rated voltage: 250V (Insulation)

Lifetime: >5000 mating cycles

Locking device: Quick Lock

Chassis shape: D

Layouts: Standard hole position, through holes



Material

Contact plating: 4µm Ag

Contacts: Bronze (CuSn6)

Shell: Polyamide (PA 6 30 % GR) black



Environmental

Flammability: UL 94 HB

Solderability: Complies with IEC 68-2-20

Temperature range: -30 °C to +80 °C



Features:

  • Current rating 30A RMS
  • Glass reinforced materials make it extremely robust and dependable
  • Precise keyway for secure mating
  • Accurate twist lock latching system
  • Metal insert in locking area
  • Airtight design - optimised for speaker applications



Details

Products specifications

Warranty 12 Months
Connectors
Gender Sockets
Type Speakon Connectors

Warranty

WARRANTY

We offer 12 Months warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.

Downloads

.pdf
Dimension Drawing
PDF
