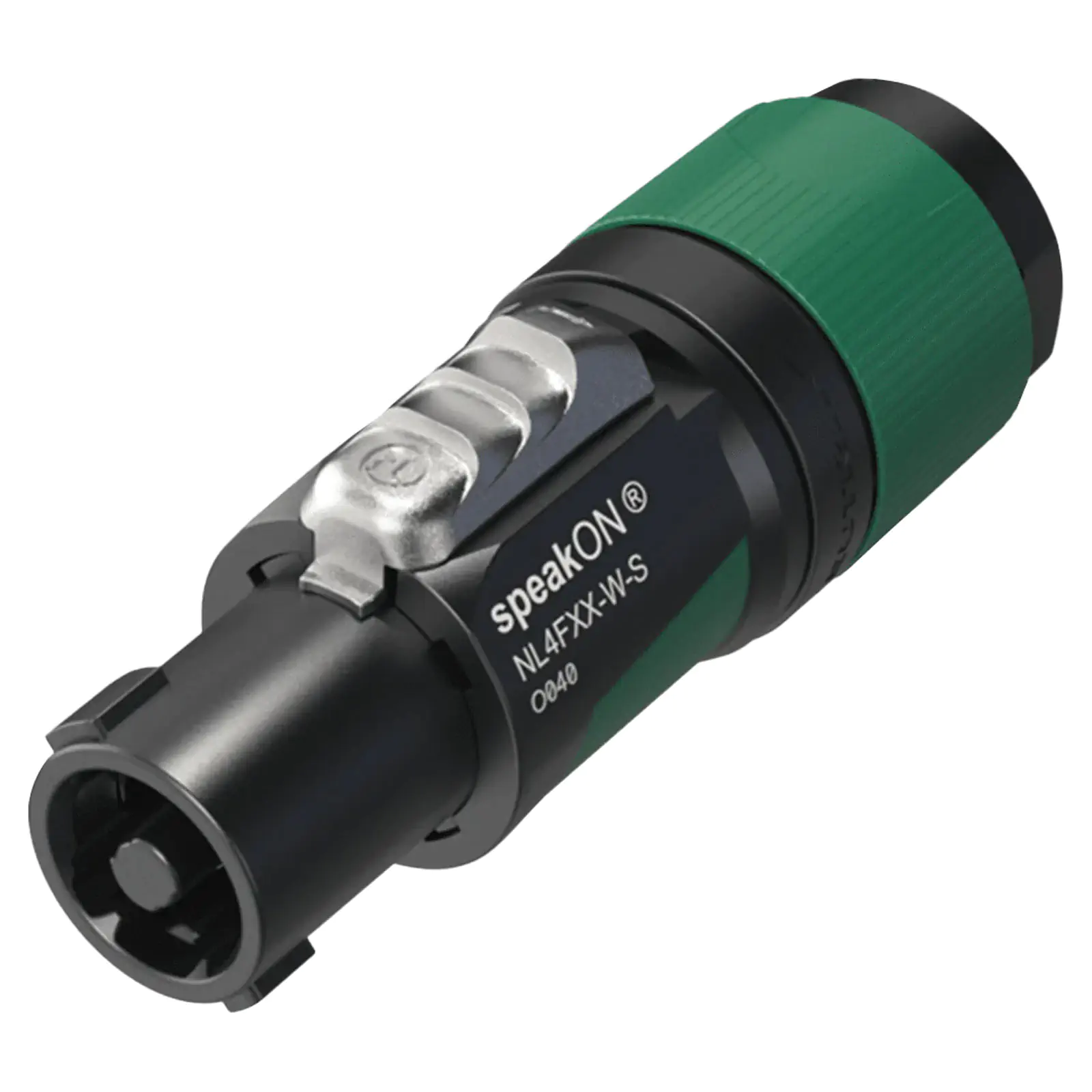

Speakon 4 Pole Line Plug Connector NL4FXX-W-S

by: Neutrik
SKU: P0795A
The Neutrik NL4FXX-W-S 4-pole speakON cable connector has a screw terminal assembly and chuck type strain relief for cable diameters 6 to 12 mm.
$21.82

All Prices Shown are (ex GST)
Bulk Pricing
ea $21.82
5+ $19.05
20+ $17.95
i h

Overview

The all-new Neutrik NL4FXX-W-S 4-pole speakon connector replaces the NL4FX. The Neutrik NL4FXX-W-S 4-pole speakON cable connector has a screw terminal assembly and chuck type strain relief for cable diameters 6 to 12 mm.

Neutrik speakON connectors are the industry-standard for loudspeaker connections. This product series offers extremely reliable and robust cable connectors with a proven twist lock system. speakON cable connectors feature solid contacts with screw-type terminals including a stranded wire protection

Attention: speakON is NOT to be used as an AC mains or power supply connector!





Specifications:



Electrical

Contact resistance = 2 mΩ

Dielectric strength 2.8 kVac

Insulation resistance > 10 GΩ (initially)

Number of electrical contacts 4

Rating Europe IEC 61984: 37 A 250 V AC

Rating USA UL1977: 35 A 250 V AC

Rating Canada CSA C22.2 No.182.3: 24 A 250 V AC



Mechanical

Cable O.D. 6 – 12 mm

Lifetime typically 5000 mating cycles

Wiresize (mm²) 1.5 – 4 mm²

Wiresize (AWG) 17 – 11 AWG

Locking device Twist lock

Termination screw type terminals



Material

Contact plating Ag

Contacts Copper Alloy

Insert Polyamide (PA6.6)

Locking element Zinc diecast

Shell Polyamide (PA6) / TPE

Strain relief Polyketone

Bushing Polypropylene / TPE



Environmental

Temperature range -33 °C to +80 °C

Protection class IP20

Flammability acc. to UL94 V-0



Features:

  • Up to 37 A rms current rating
  • Unique Neutrik locking bushing and strain relief for cable diameters 6 mm to 12 mm
  • IEC 61984 certified, thus accepted as a component of equipment acc. to IEC 62368-1
  • Superior NEUTRIK quality standard, extremely robust and reliable
  • Easy to assemble because the strain relief locks with the insert mechanically and aligns with the housing
  • Easy and reliable twist lock system
  • Ergonomic design with slip-proof two-component molded housing
  • Improved kink protection by two-component bushing
