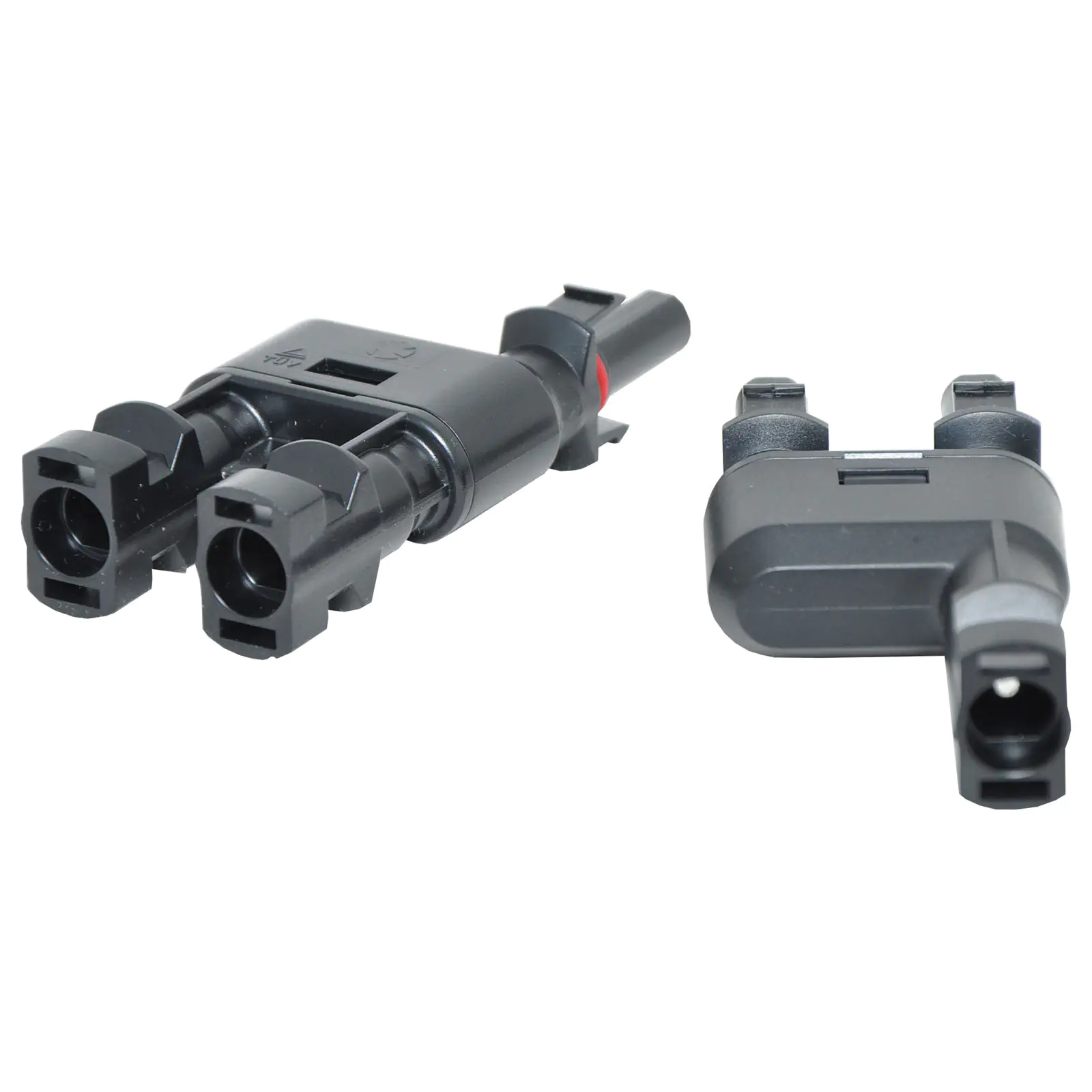

IP67 MC4 Style Solar Panel 30A Y Adapter Pair

SKU: P8611
MC4 style dual line plug adaptor designed for use when daisy chaining solar (PV) panels together. Fully sealed connectors suitable for use in exposed installations.
$24.50

All Prices Shown are (ex GST)

Bulk Pricing
ea $24.50
4+ $23.18
10+ $21.77
i h

Overview

MC-4 style dual line plug adaptor designed for use when daisy-chaining solar panels together. Water & dust proof - IP67 rated. Commonly used on photovoltaic solar panel arrays. Fully sealed design is suitable for use in exposed installations. Rated 30A @ 1000VDC (70°C).





Specifications:



Contact Material: Copper, Silver Plated

Insulation Material: PPO

Rated Current: 30A (2-4mm2)

Rated Voltage: DC 1000V TUV

Test Voltage: 6000V (50Hz, 1min)

Contact Resistance: 0.5mΩ

Protection Requirement: IP67

Safety Class: II

Flame Class: UL94 - V0

Insertion Force: = Withdrawal Force: >= 50N

Temperature Range: -40 ~ +90°C

Over Voltage Category/Pollution Degree: CATIII/2
