NEW

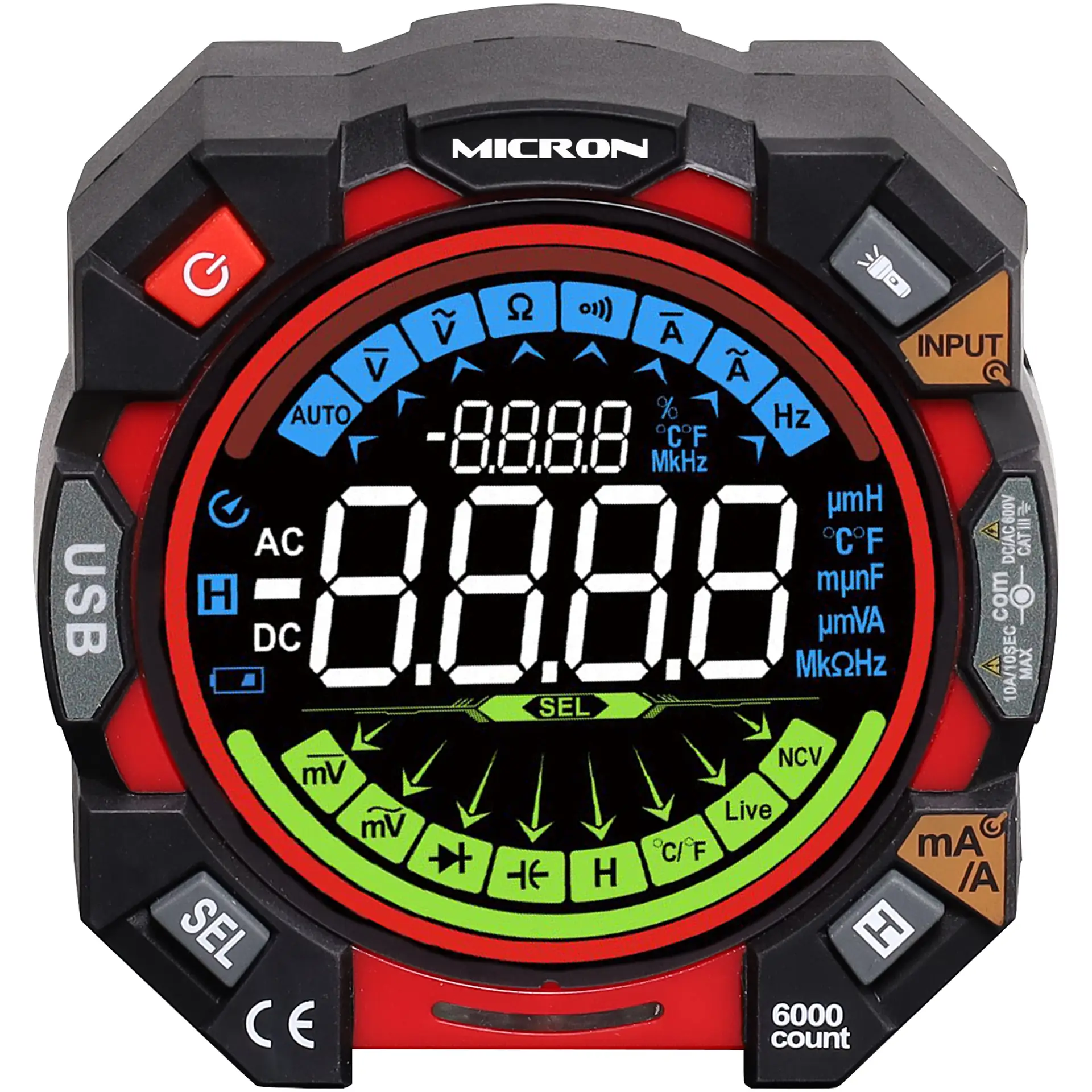

6000 Count Autoranging Digital Multimeter

by: Micron
SKU: Q1060
Delivers accurate, safe, and versatile testing with auto-ranging, NCV detection, and temperature measurement. Compact, rechargeable, and packed with features.
$63.59

All Prices Shown are (ex GST)
Bulk Pricing
ea $63.59
2+ $57.23
5+ $50.86
i h

Overview

A versatile 6000 Count Autoranging Digital Multimeter designed for reliable and accurate electrical measurements in professional and DIY applications. With auto-ranging, non-contact voltage detection, temperature measurement, and a built-in flashlight, it offers both convenience and safety. Its rechargeable lithium battery, overload protection, and clear LCD display all make it a dependable tool, perfect for a serious electronics enthusiast, electrical tradesperson or service tech.

Features:

  • Auto-ranging & multifunction: Measures AC/DC voltage, current, resistance, capacitance, frequency, duty cycle, diode, continuity, and temperature.
  • Non-Contact Voltage (NCV) detection with visual and audible alerts.
  • Live wire testing for safe identification of live conductors.
  • Data hold function to lock readings on-screen.
  • Built-in flashlight & backlight for low-light environments.
  • Rechargeable 1000mAh lithium battery with USB-C charging.
  • Auto power-off after 15 minutes to conserve energy.
  • Overload protection across measurement ranges.
  • Includes K-type thermocouple for temperature measurement up to 250°C.
  • CAT II 600V safety rated for reliable operation.



Specifications:



Maximum allowable voltage between the measurement terminals and ground: 1000V DC or 600V AC

Maximum operating altitude: 2000m

Display: LCD

Maximum display value: 6000 digits

Polarity Indication: Automatic, with '-' indicating negative polarity

Overrange display: "OL" or "-OL"

Sampling rate: Approximately 3 times per seond

Unit display: Functional and battery unit indicators

Auto power-off time: 15minutes

Power Source: 1000mAh lithium battery

Low battery indication: LCD display symbol

Temperature coefficient: Less then 0.1 x accuracy/°C

Operating Temperature: 0°C to 40°C

Storage Temperature: -20°C to 60°C

Details

Products specifications

Warranty 12 Months
Test and Measurement
Type Digital Multimeters

Warranty

WARRANTY

We offer 12 Months warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.

Downloads

.pdf
Instructions
PDF
