This combination 60W soldering iron and 90W vacuum desoldering station provides hobby enthusiasts and technicians with everything they need for soldering on the workbench in one compact unit.

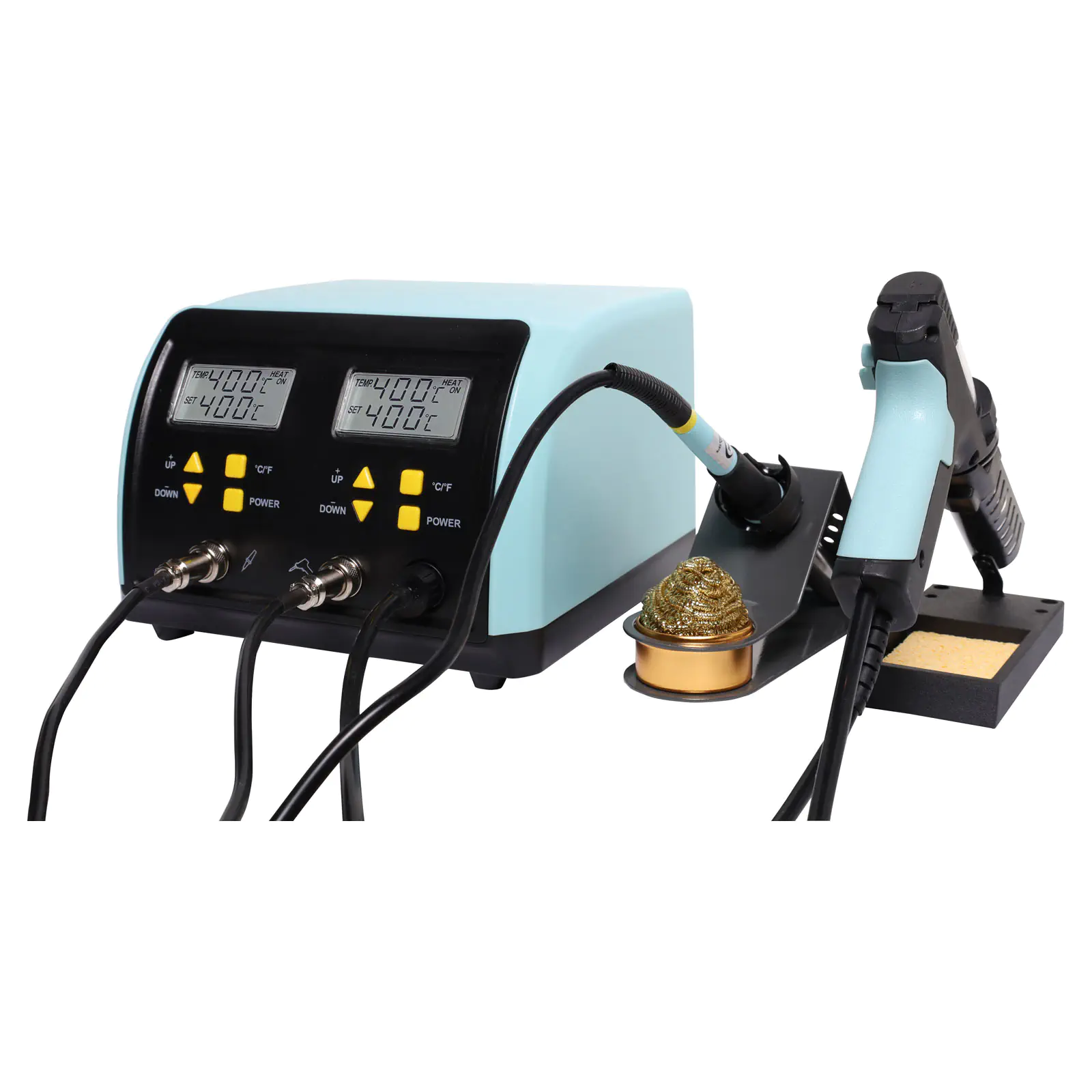

Combination 60W Soldering & 90W Vacuum Desoldering Station

Name: Combination 60W Soldering & 90W Vacuum Desoldering Station
SKU: T2052
Price: 453.64 AUD
Availability: InStock

by: Micron

SKU: T2052

This combination 60W soldering iron and 90W vacuum desoldering station provides hobby enthusiasts and technicians with everything they need for soldering on the workbench in one compact unit.

$453.64

All Prices Shown are (ex GST)

Bulk Pricing

ea	$453.64
2+	$435.45

i h

Overview
Details
Warranty
Downloads

Overview

This combination 60W soldering iron and 90W vacuum desoldering station provides enthusiasts and technicians with everything they need for soldering on the workbench in one compact unit. On the desoldering side, a powerful vacuum pump desolders through-hole parts quickly and efficiently. Simply place the tip over the solder join and hold down the trigger, the molten solder is sucked off the board and into a canister in the handle for disposal. The temperature of the iron is electronically controlled and utilises a ceramic heater to rapidly reach its operating temperature in just 20 seconds. The iron includes a burn resistant rubber lead and ergonomic ‘pencil’ design to ensure your comfort and safety. The easy to read white backlit display on each unit provides a useful indication of set temperature and heater temperature. The soldering iron and desoldering gun units can be switched on/off individually. Includes 0.5mm fine point soldering tip. Includes 1.0, 1.2 and 1.5mm desoldering tips.

Specifications:

Voltage input: 220 - 240V AC

Heater: 24V ceramic element

Soldering nominal power: 60W

Desoldering nominal power: 90W

Temperature range: 160°C to 480°C

Tip to ground resistance: <0.1 Ohm

Soldering heat up time: ≈22 sec to 400°C

Desoldering heat up time: ≈80 sec to 400°C

Dimensions: 220W x 215D x 160Hmm

Weight: 6kg

Features:

Combination 60W soldering iron and 90W soldering gun
Ceramic heating elements
Burn proof rubber leads
160°C to 480°C temperature adjustable
Dual reading backlit display
Easy clean solder reservoir
High suction vacuum pump
Includes three desolder tips & nozzle cleaners
ESD safe
Slimline pencil iron handle with rubberised grip
Two individual stands with integrated tip cleaners
RoHS compliant

What makes a desoldering station such a vital workbench tool?

Recycle: It’s a satisfying experience to recover useful parts from old and broken boards. A desoldering station is particularly useful for salvaging hard to find or expensive components.

Speed: Manual desoldering with braid or handheld pumps is a finicky slow process. A vacuum desoldering unit turns it into a single handed job, melting and sucking the solder at the same time.

Fix: Soldered in a capacitor the wrong way around? No problem! Quickly fix assembly mistakes with minimum of fuss. Great for schools, engineering labs and soldering workshops.

Details

Products specifications

Warranty	2 Years
Tools
Type	Desoldering Stations, Soldering Iron Stations

Warranty

WARRANTY

We offer 2 Years warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.

Downloads

Instructions

PDF
