This compact 8MP dome/turret camera utilises a 1/2.8' SONY Starvis Back-Illuminated CMOS Sensor for a crisp clear view day or night.

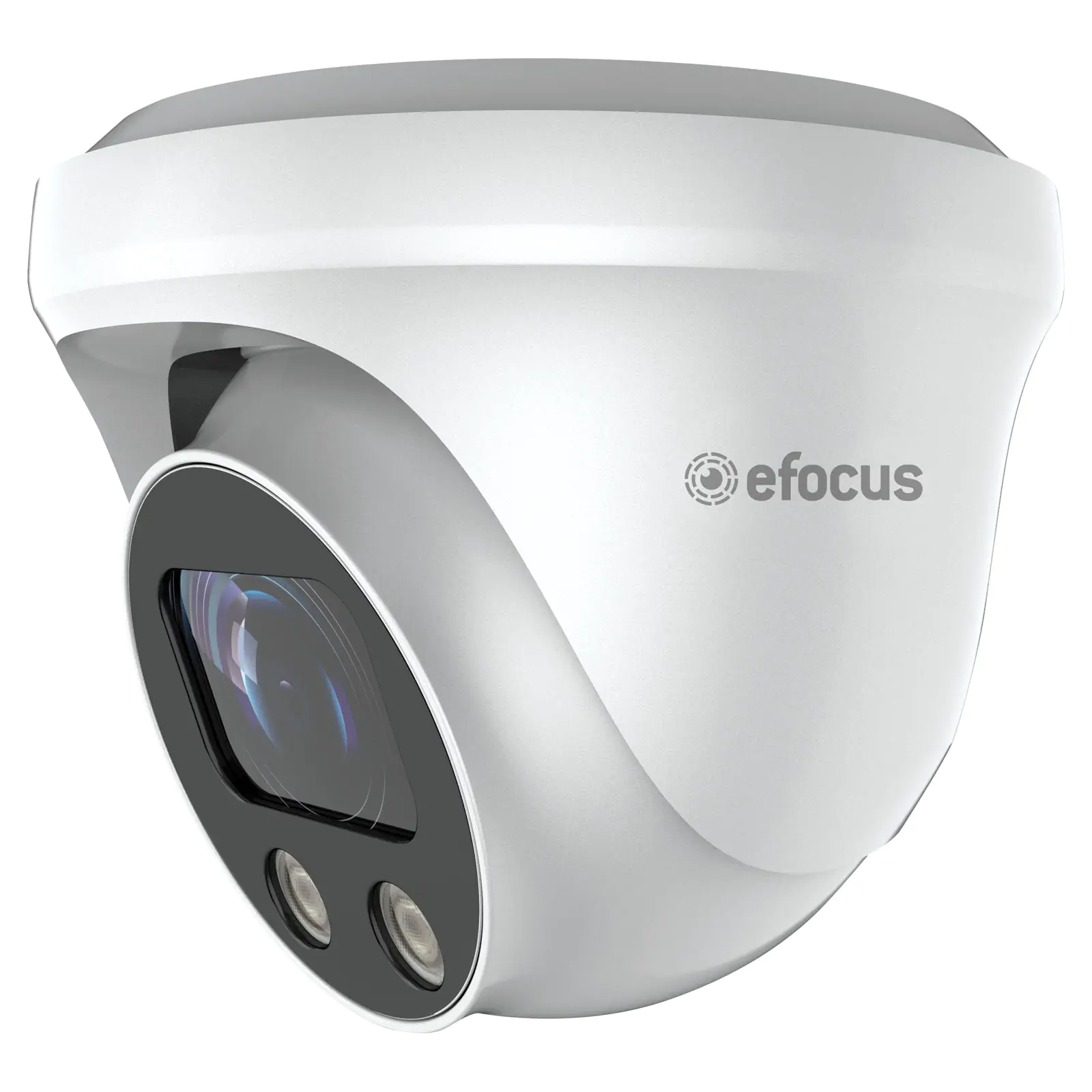

8.0 Megapixel Motor Zoom IP Dome Camera

Name: 8.0 Megapixel Motor Zoom IP Dome Camera
SKU: S9833B
Price: 244.55 AUD
Availability: InStock

by: eFocus

SKU: S9833B

Save $90.90 $244.55 ~~$335.45~~

All Prices Shown are (ex GST)

Bulk Pricing

ea	$244.55 $335.45
3+	$244.55 $304.55
6+	$244.55 $271.82

i h

Overview
Details
Warranty

Overview

This compact 8MP dome/turret camera utilises a 1/2.8" SONY Starvis Back-Illuminated CMOS Sensor for a crisp clear view day or night. It offers multi-codec compression support with H.264/H.265 streams up to 3840x2160 resolution. The front mount infra-red LEDs offer up to 25m coverage at night time. An in-built PoE receiver makes it easy to hook up to PoE ready NVRs. Supports ONVIF protocol for integration with most network video recorders. The camera has an SD card slot which supports maximum of 512GB SD cards.

Specifications:

Camera

Image Sensor: 1/2.8" SONY Starvis Back-Illuminated CMOS Sensor

Resolution: 8MP

Effective Pixels: 3894(H)*2192(V)

Compression: H.264/H.264+/H.265/H.265+/JPEG/AVI /MJPEG

TV System: PAL/NTSC

Electronic Shutter Time: Auto: PAL 1/25-1/10000Sec; NTSC 1/30-1/10000Sec

Minimum Illumination: 0.01Lux

S/N Ratio: =52dB

Scanning System: Progressive

Video Output: Network

Reset Button: Optional

Lens

Focus Length: 2.7-13.5mm Motor Zoom

Focus Control: Auto

Lens Type: Auto

Pixels: 8MP

Night Vision

Infrared LED: 42µ x 2pcs

Infrared Distance: 25m

IR Status: Auto Control

IR Power On: Smart, Manual and Timed mode.

Network

Ethernet: RJ-45 (10/100Base-T)

Protocol: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, UDP

ONVIF: Support ONVIF 2.4 (Profile S/T)

P2P: Yes, Support QR Code

POE: Internal, support IEEE 802.3af

Video Delay: 0.3 seconds (within the LAN)

Main Stream 1: 3840*2160@20fps

Main Stream 2: 2592*1944@30fps, 2560*1440@30fps

Main Stream 3: 1920*1080@30fps, 1280*720@30fps

Sub Stream 1: 720*480@30fps

Sub Stream 2: 352*288@30fps

Tri Stream: 1280*720@30fps, 720*480@30fps, 352*288@30fps

IR Browser: IE8-11, Google Chrome, Firefox, Mac Safari

Smart Phone: iPhone, iPad, Android, Android Pad

Camera Features

Day/Night: Colour/B&W (IR-CUT)

Image Configuration: Saturation/Brightness/Contrast /Sharpness, Mirror, 3D NR, White Balance, FLK(Flicker Control), Video Tampering, HLC, Distortion

Corridor Pattern: Support

Defog Mode: Support

ROI: Support

BLC: Support

WDR: HDR: 120dB

Motion Detection: Support

Privacy Masking: 3 Rectangular Zone

Recording Mode: NVR/CMS/Web

Language: Chinese Simplified, Chinese Traditional, English, Bulgarian, Polish, Arabic, German, Russian, French, Korean, Portuguese, Japanese, Turkish, Spanish, Hebrew, Italian, Netherlands, Czech, Vietnamese

Interface

Audio: Audio IN/OUT by line

Alarm: 1 Channel Input/Output

SD Card Slot: Support up to 512GB (max)

General

Housing: Metal, IP67

Anti-Cut Bracket: Optional Wall Bracket

IR Cut Filter: Yes

Operating Temperature: -20°C ~ +60°C, RH 95% (max)

Storage Temperature: -20°C ~ +60°C, RH 95% (max)

Power Source: 12V DC ±10%, 700mA

Weight: 800g

Dimensions: ¢128 x 108(H)mm

Features:

Pro IP Dome
1/2.8" SONY Starvis Back-illuminated CMOS sensor
H.265+/H.265/H.264+/H.264 Compression Method
2.7-13.5mm Motorized Lens
IR Distance 25M Max.
With Internal POE and External SD Card Slot

Details

Products specifications

Warranty	12 Months
CCTV & Security
Output	IP Cameras
Type	Dome Cameras
Resolution	4K (8MP)

Warranty

WARRANTY

We offer 12 Months warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.
