RGB LED Adhesive Zig Zag Strip Lighting 5050 Chip

by: Genlamp
SKU: X3328
Uniquely shaped design allows you to run LED strips around corners seamlessly without any joiners or plugs.
$63.59

All Prices Shown are (ex GST)
Bulk Pricing
ea $63.59
4+ $57.23
6+ $50.86
i h

Overview

Unique zig zag design allows you to run LED strips around corners seamlessly without any joiners or plugs. Also known as ''snake'' strip lighting, it can be bent up to 90° whilst stay flat and securely adhered to cabinetry, metal and plastic surfaces. LED strip lighting with red, green, blue variable colours for indoor use.

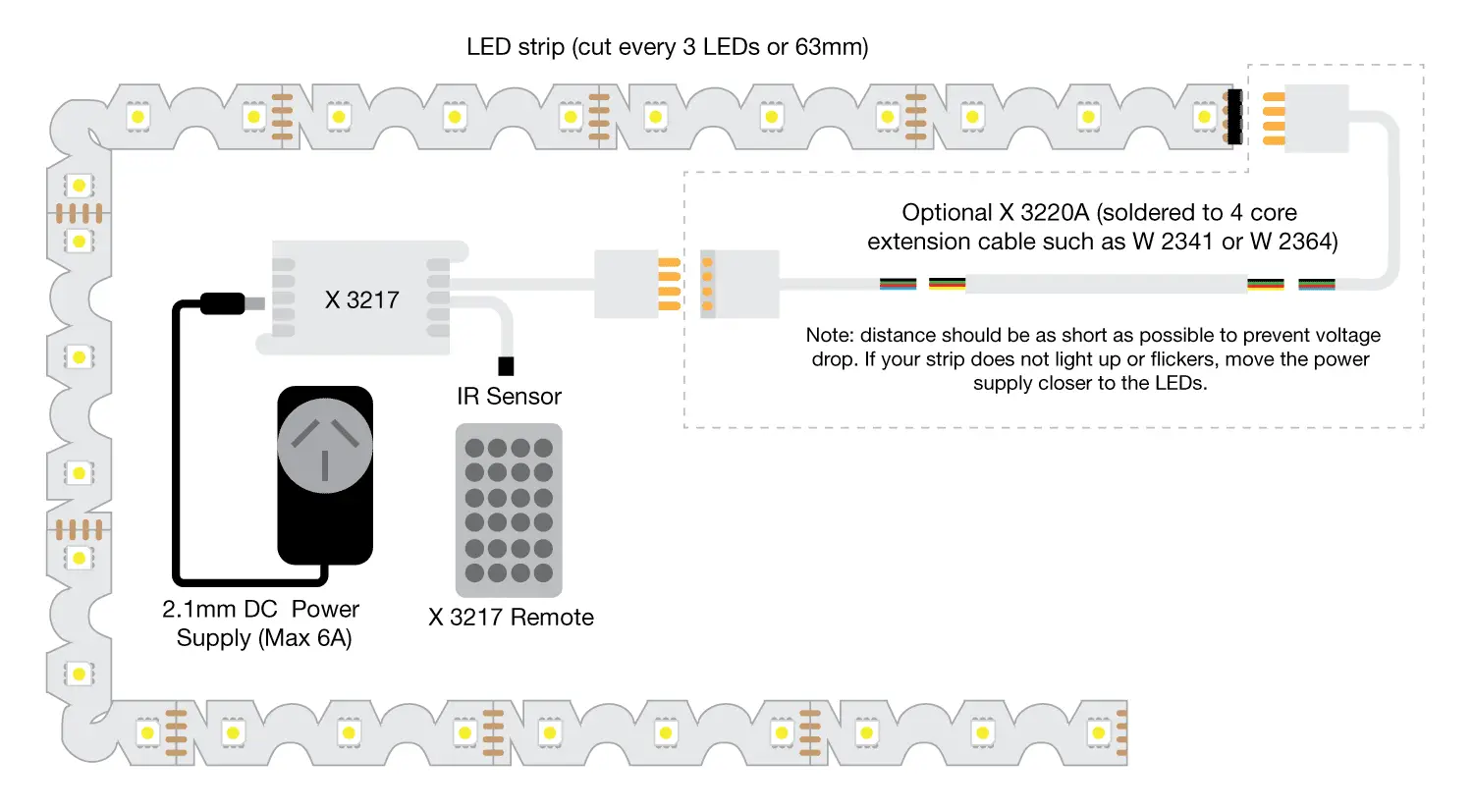

A controller & remote are available separately for varying timing of the colour change.Remote control offers 16 selectable colours, adjustable brightness, speed of colour change, and 4 effects (flash, strobe, fade and smooth transition). Controller will power 5m of lighting per unit. Backed with 3M adhesive tape for easy installation. Strips can be cut every 3 LEDs (or 63mm). 5050 chip size. Sold as 5m reels.





Specifications:



Power Consumption: 7W per metre

Current: R: 170mA/m, G: 200mA/m, B: 200mA/m, Total: 570mA/m

(Note: To produce any selected colour, a combination of chips will be required so a ''Total'' approximate max current is provided, which is all 3 chips combined)

Luminous Intensity: 200-230lm per metre (white)

LED Type: SMD5050

LED Quantity: 48 LEDs per metre

Wavelength: Red 625-630nm, Green 515-520nm, Blue 460-465nm

Beam Angle: 120 degrees

Input Voltage: 12V DC

Width: 10mm

IP Rating: IP30

Length: 5 metre

Backing: 3M adhesive



Details

Products specifications

Warranty 12 Months
LED Lighting
Chip Size 5050
Colour RGB
Type Indoor

Warranty

WARRANTY

We offer 12 Months warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.
