An advanced lighting module for addressable LED strips. It utilises an open source WLED control protocol compatible with popular LED strips using WS2811, WS2812B, WS2814A, SK6812, and others.

ESP32 Advanced Wi-Fi / Ethernet WLED Digital LED Controller

Name: ESP32 Advanced Wi-Fi / Ethernet WLED Digital LED Controller
SKU: X3332
Price: 52.73 AUD
Availability: InStock

SKU: X3332

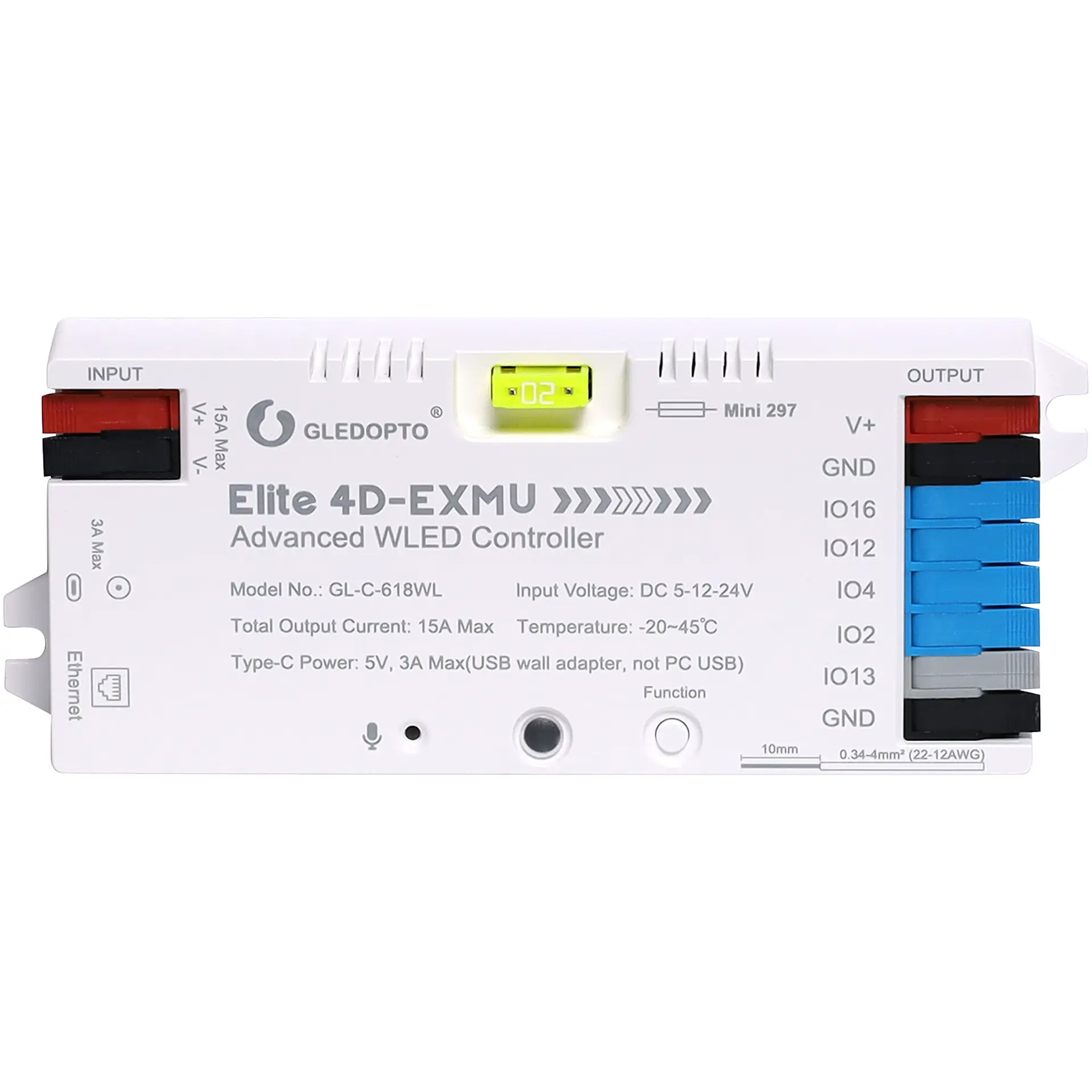

The GL-C-618-WL is an advanced lighting module for up to 4 channels of addressable LED strips. It utilises open source WLED control firmware compatible with popular LED strips using WS2811, WS2812B, WS2814A, SK6812, and others.

$52.73

All Prices Shown are (ex GST)

Bulk Pricing

ea	$52.73
2+	$50.91
4+	$49.09

i h

Overview
Details
Warranty

Overview

This Wi-Fi and ethernet based ESP32 LED controller is an advanced lighting module for addressable LED strips. It utilises open source WLED firmware compatible with popular LED strips using WS2811, WS2812B, WS2814A, SK6812, and others. This model provides connectivity via either Wi-Fi or wired ethernet and supports up to 4 LED channels. LEDs can then be controlled and programmed using a PC or smart device (WLED app) allowing you to design your own flexible and scheduled lighting solutions for around the home or business. An in-built microphone allows for dynamic lighting effects by triggering to the beat of the music. The unit is fitted with USB-C UART connection for programming. Power is provided using the terminals provided or 2.1mm DC jack socket.

Features:

Supports most addressable LED strip types (including Altronics X3222A, X3223A and X3216A).
Supports connection for four LED channels/strips.
10A max current load per channel.
Wired Ethernet or Wi-Fi connection (2.4GHz).
20A Pluggable Fuse
Plug and Play ethernet port
Push button switch input.
DIY programmable lighting effects.
Stable and fast data transfer with UART download over USB C.
Microphone for music triggering.
Can be programmed and controlled via PC or smart device (WLED app).

Specifications:

Input Voltage: DC 5-12-24V
Total Output Current: 15A Max
Type-C Voltage: 5V
Type-C Current: 3A Max
Protocol: WLED
Connectivity: Wi-Fi & Wired Ethernet
Supported chips: WS2805, WS2811, WS2811F, WS2812B, WS2814A, WS2815, SK6812, SM16703, SM16703SP3, FL19038, FW1935, UCS2903B etc.
Material: Flame Retardant PC
Weight: 0.11kg
IP Rating: IP20
Size: 129x50x23mm

Details

Products specifications

Warranty	12 Months

Warranty

WARRANTY

We offer 12 Months warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.
