NEW

This Wi-Fi ESP32 PWM digital LED controller supports most addressable LED strips and provides the ability to customise LED lighting effects. It utilises an open source WLED control protocol compatible with popular LED strips using WS2811, WS2812B, WS2814A, SK6812, and others.

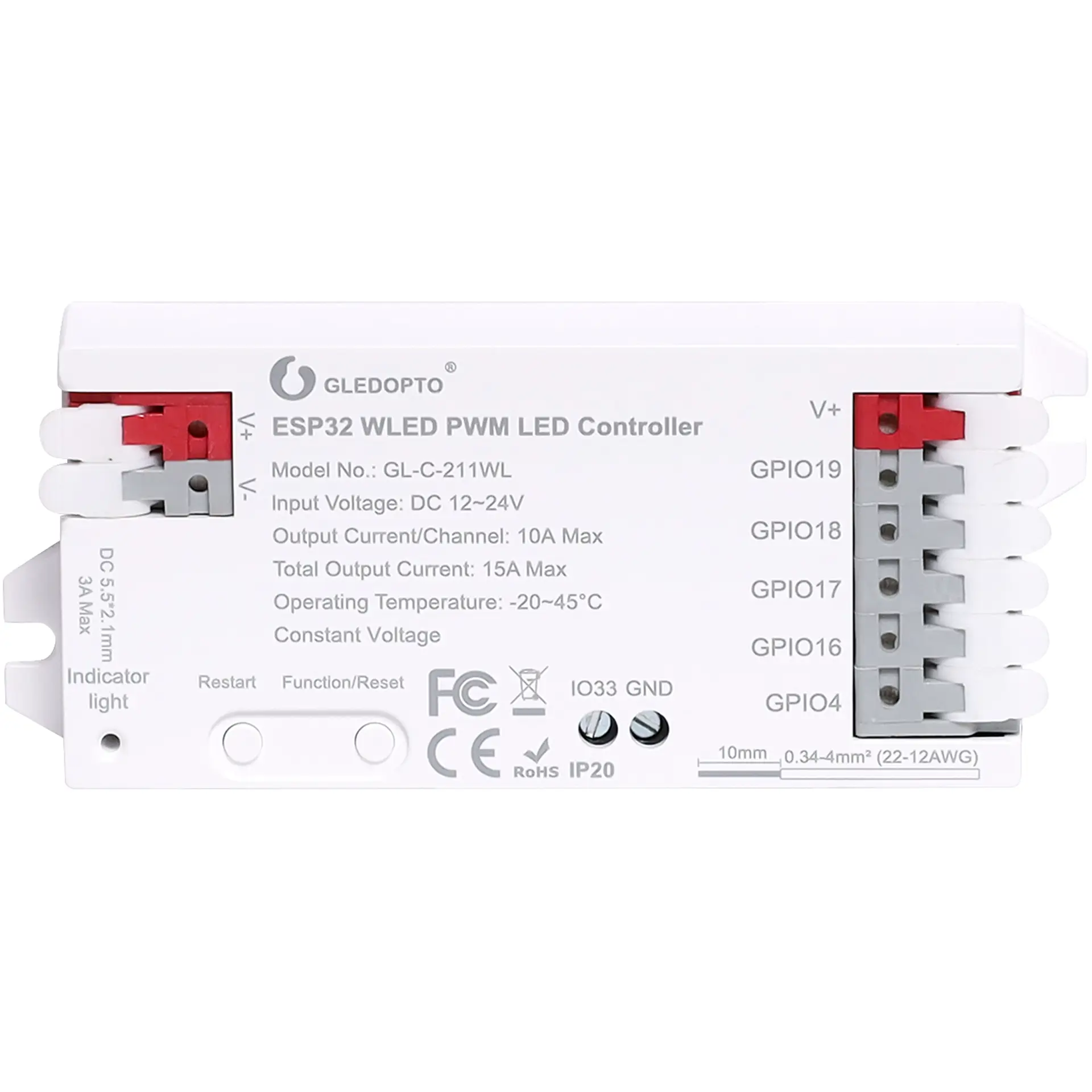

ESP32 Wi-Fi WLED PWM LED Controller

Name: ESP32 Wi-Fi WLED PWM LED Controller
SKU: X3333
Price: 33.64 AUD
Availability: InStock

SKU: X3333

The GL-C-211WL is a Wi-Fi ESP32 PWM digital LED controller supporting 12-24V dimmable LED strip (single colour / RGB / RGBW / RGBWW / CCT) and provides the ability to customise LED lighting effects. It utilises open source WLED firmware for in app control.

$33.64

All Prices Shown are (ex GST)

Bulk Pricing

ea	$33.64
2+	$31.82

i h

Overview
Details
Warranty

Overview

This Wi-Fi ESP32 PWM digital LED controller supports 12-24V dimmable LED strips (single colour / RGB / RGBW / RGBWW / CCT) and provides the ability to customise LED lighting effects. It utilises open source WLED firmware for in app, coding free LED control. LEDs can be controlled over Wi-Fi using a smart device (WLED app) allowing you to design your own flexible and scheduled lighting solutions for around the home or business. Power is provided using the terminals provided or 2.1mm DC jack socket.

Features:

Supports almost any 12-24v dimmable LED strip (single colour / RGB / RGBW / RGBWW / CCT).
10A max current load per channel.
Wi-Fi connection (2.4GHz).
Push button switch input.
DIY programmable lighting effects.
Can be programmed and controlled via smart device (WLED app).
Reverse polarity protection
Synchronized light effects

Specifications:

Input Voltage: DC 5-12-24V
Total Output Current: 15A Max
Output Current/Channel: 10A Max
Protocol: WLED
Connectivity: Wi-Fi
Application: RGB, RGBW, RGBCCT, CCT, and Single-Color Strips
Material: Flame Retardant PC
Weight: 0.57kg
IP Rating: IP20
Size: 108x45x18mm

Details

Products specifications

Warranty	12 Months

Warranty

WARRANTY

We offer 12 Months warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.
