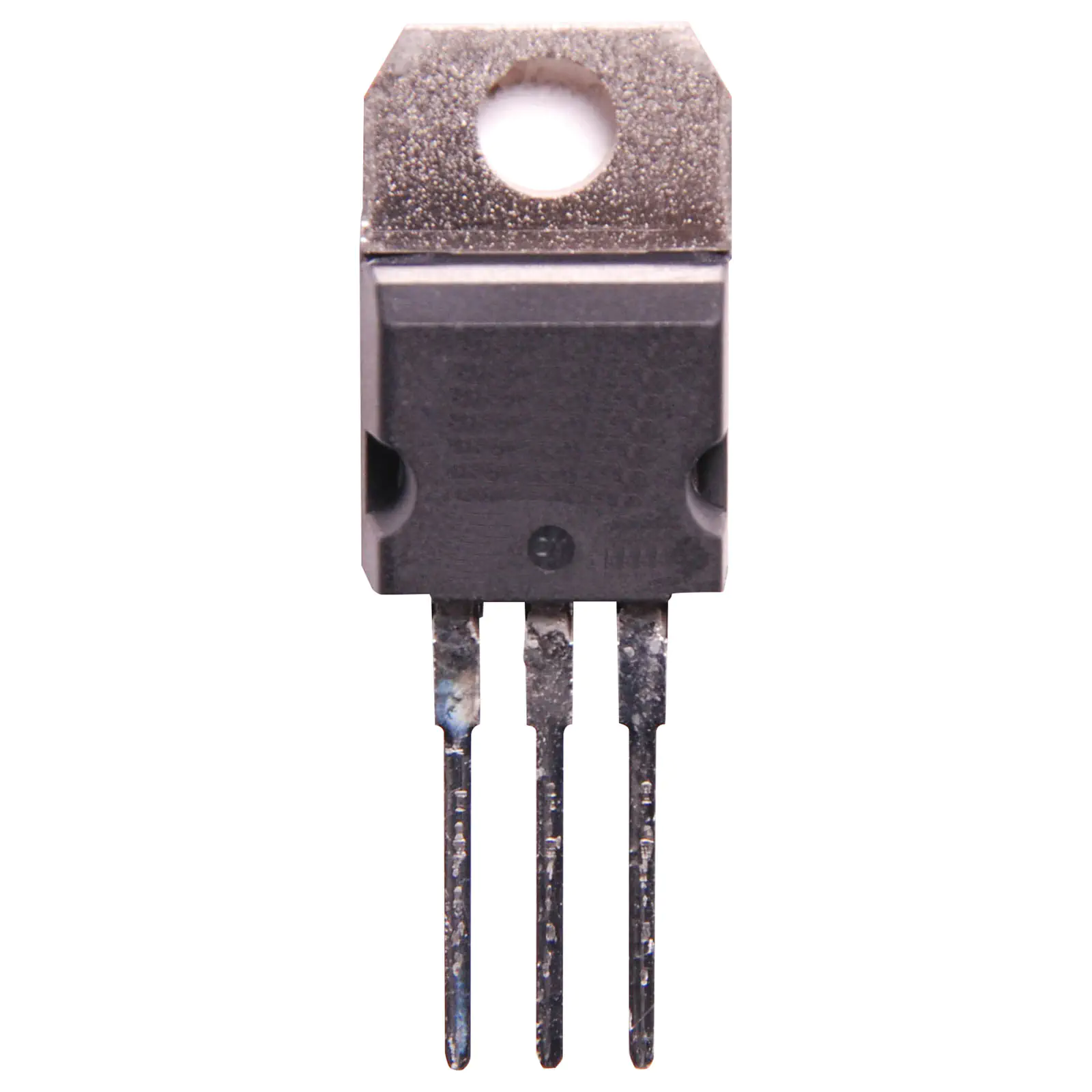

IRF9540NPBF TO-220 P-Channel MOSFET

SKU: Z1543
IRF9540 Mosfet Rating: -100V -23A Package: TO-220
$1.77

All Prices Shown are (ex GST)
Bulk Pricing
ea $1.77
10+ $1.41
25+ $1.14
i h

Overview

IRF9540 MOSFET (MOSFET P-CH 100V 23A TO-220AB)

Rating: -100V -23A
Package: TO-220





Specifications:



FET Type: P-Channel

Technology: MOSFET (Metal Oxide)

Drain to Source Voltage (Vdss): 100V

Current - Continuous Drain (Id) @ 25°C: 23A (Tc)

Drive Voltage (Max Rds On, Min Rds On): 10V

Vgs(th) (Max) @ Id: 4V @ 250µA

Gate Charge (Qg) (Max) @ Vgs: 97nC @ 10V

Input Capacitance (Ciss) (Max) @ Vds: 1300pF @ 25V

Vgs (Max): ±20V

Power Dissipation (Max): 140W (Tc)

Rds On (Max) @ Id, Vgs: 117 mOhm @ 11A, 10V

Operating Temperature: -55°C ~ 150°C (TJ)

Mounting Type: Through Hole

Supplier Device Package: TO-220AB

Package / Case: TO-220-3

Details

Products specifications

Warranty 12 Months
Components
Type NPN Transistors
Application MOSFET
Package TO-220

Warranty

WARRANTY

We offer 12 Months warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.
