DC-DC Buck Boost Module 1A / 1.25V-26V DC

SKU: Z6337
Utilises the LM2596S and LM2577 to accept a 3.5-28V input and output 1.25-26V (adjustable) at a max current of 1A. Includes brass standoffs. Ideal for small projects where regulated power is required. Size:󈍕L x 38W x 21Hmm.
$18.14

All Prices Shown are (ex GST)
Bulk Pricing
ea $18.14
2+ $16.32
4+ $14.50
i h

Overview

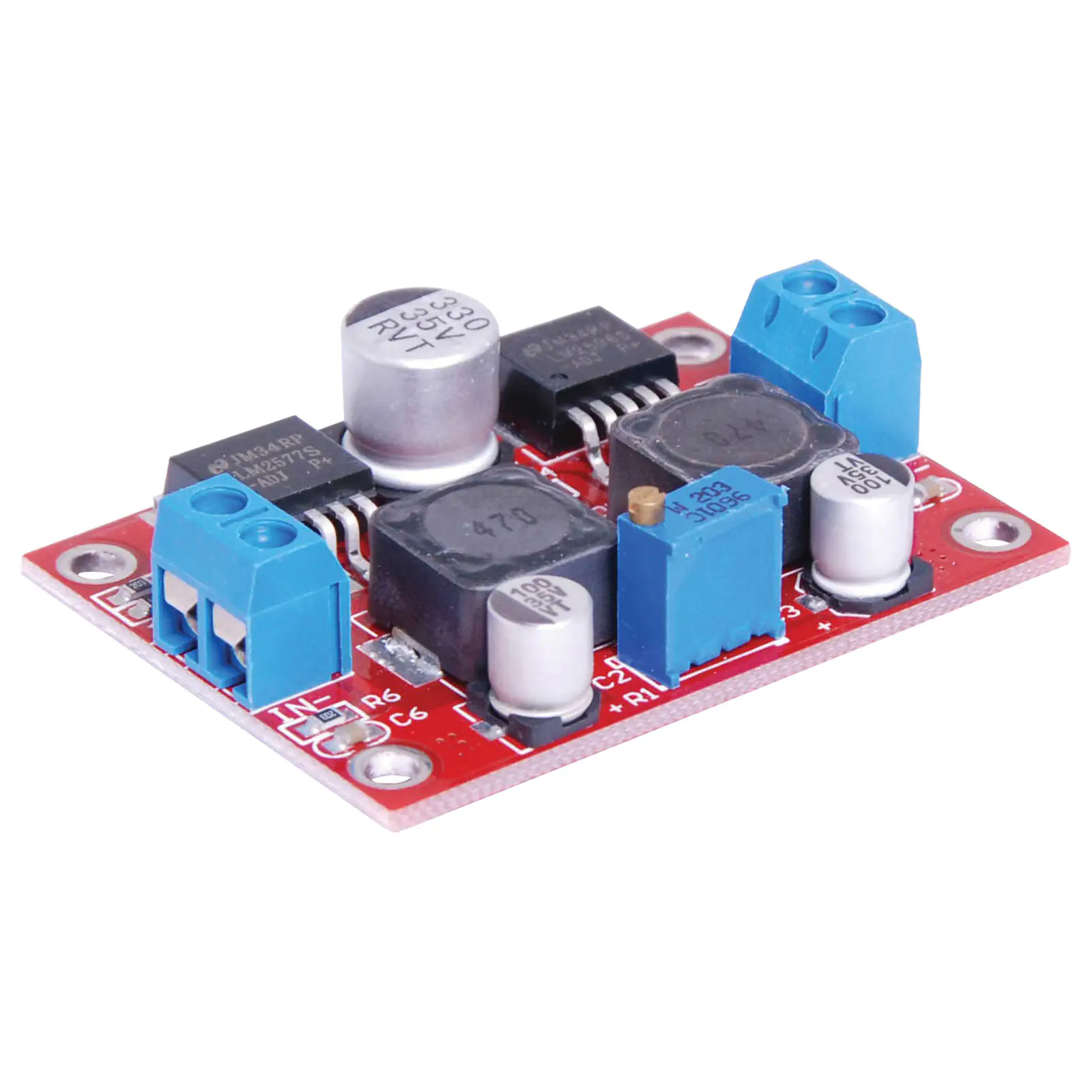

A DC-DC buck module utilising the LM2596S and LM2577 to accept a 3.5-28V input and output 1.25-26V (adjustable) at a max current of 1A. Includes brass standoffs. Ideal for small projects where regulated power is required. Size: 53L x 38W x 21H mm.

ALWAYS check the output voltage with a multimeter prior to connecting your device to the output.

Note: The output voltage (any value between 1.25V-26V) is irrelevant to the input voltage (input 3.5V-28V arbitrary value), the module automatically lifts and drops.





Specifications:



Dual Chip: LM2577S + LM2596S

Size: 53x38x15mm



Boost Mode:

Input Voltage: 3.5-28V

Output Voltage: 1.25V-26V

Note: The output voltage is not related to the input voltage (that is, input any value of 3.5V-28V, output any value of 1.25V-26V)



Buck Mode:

Current Input Maximum: 3A.

Output Maximum: 3A.

Rated Input: 1A,

Rated Output: 1A

Details

Products specifications

Warranty 12 Months

Warranty

WARRANTY

We offer 12 Months warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.
