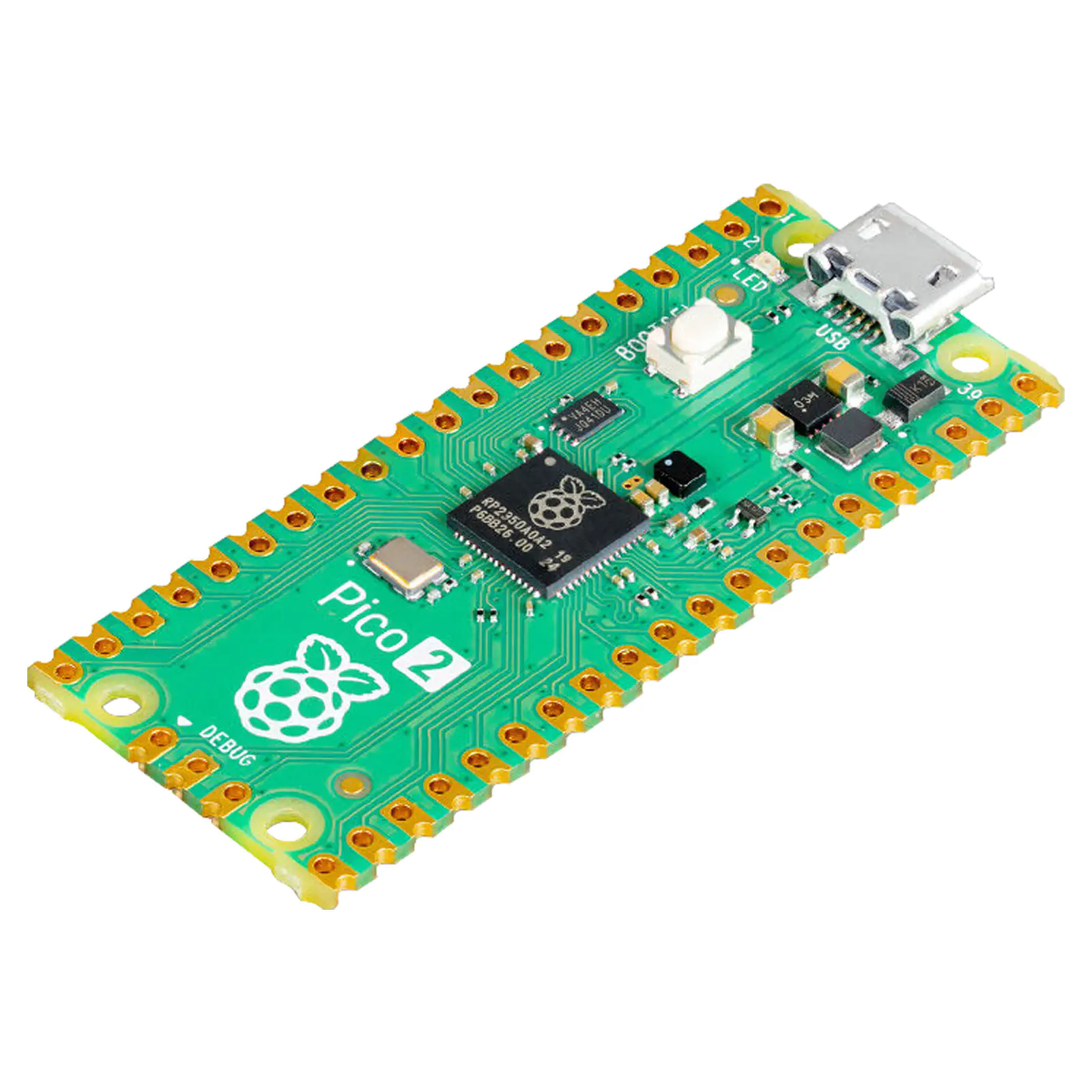

Raspberry Pi Pico 2 RP2350 Development Board

Name: Raspberry Pi Pico 2 RP2350 Development Board
SKU: ZA6421
Price: 13.86 AUD
Availability: InStock

by: Raspberry Pi

SKU: ZA6421

Raspberry Pi Pico is a tiny, fast, and versatile board built using RP2350, a brand new microcontroller chip designed by Raspberry Pi in the UK. From controlling appliances to operating a light display, Raspberry Pi Pico puts the technology that underpins countless everyday operations into your hands.

$13.86

All Prices Shown are (ex GST)

Bulk Pricing

ea $13.86

i h

Overview
Details
Warranty

Overview

The Raspberry Pi Pico 2 is a tiny, fast, and versatile board built using RP2350, a brand new microcontroller chip designed by Raspberry Pi in the UK. From controlling appliances to operating a light display, Raspberry Pi Pico puts the technology that underpins countless everyday operations into your hands.

The Raspberry Pi Pico 2 offers a significant performance upgrade with its increased core clock speed, double the memory, enhanced Arm cores, optional RISC-V cores, new security features, and improved interfacing capabilities. Despite these enhancements, it remains compatible with earlier models in the Raspberry Pi Pico series.

Programmable in C/C++ and Python, Pico is adaptable to a vast range of applications and skill levels, and getting started is as easy as dragging and dropping a file.

More experienced users can take advantage of Raspberry Pi Pico’s rich peripheral set, including SPI, I2C, and eight Programmable I/O (PIO) state machines for custom peripheral support.

The Pico features a dual-core Arm Cortex-M0+ processor with 264KB internal RAM and support for up to 16MB of off-chip Flash. It features a 2MB on-board QSPI Flash. A wide range of flexible I/O options includes I2C, SPI, and — uniquely — Programmable I/O (PIO). These support endless possible applications for this small and affordable package.

Whether you prefer MicroPython or C++, here are some handy links to get you started with your Raspberry Pi Pico:

Raspberry Pi overview page
MicroPython SDK / Guide
C/C++ SDK / Guide

NOTE: The PICO is not supplied with header pins. For suitable header pins please see our P 5430 40 Way Header Strip. This is easily snapped in half to form 2 x 20 pin lengths for your PICO.

Specifications:

RP2350 microcontroller chip designed by Raspberry Pi in the United Kingdom

Dual-core ARM Cortex M-33 processor, flexible clock running up to 150 MHz

Dual RISC-V Hazard3 cores

520kB of SRAM, and 4MB of onboard Flash memory

Castellated module allows soldering directly to carrier boards

USB 1.1 Host and Device support

Improved Low-power sleep and dormant modes

Drag & drop programming using mass storage over USB

26 multi-function GPIO pins, including 4 that can be used for ADC

2 × SPI, 2×I2C, 2×UART, 12-bit ADC, 16×controllable PWM channels

Temperature sensor

Accelerated floating point libraries on-chip

12 × Programmable IO (PIO) state machines for custom peripheral support

Form factor: 21 mm × 51 mm

Features:

Ultra compact form factor
Dual core ARM Cortex M0+ processor
Two SPI controllers
Two I2C controllers
16 PWM channels
26 multifunction GPIO pins
Three analogue inputs
On board USB controller
In-built temperature sensor
Castellated module allows soldering direct to carrier boards
Drag-and-drop programming using mass storage over USB
Low-power sleep and dormant modes
Accurate on-chip clock
Accelerated integer and floating-point libraries on-chip
