Australian Made

This compact half rack distributor comprises of a single 3 pin balanced XLR input to four 3 pin balanced XLR outputs. Great for splitting a single audio source out to multiple zones without interference between channels.

1 In to 4 Out Audio Distributor

Name: 1 In to 4 Out Audio Distributor
SKU: A4414
Price: 453.64 AUD
Availability: InStock

by: Redback

SKU: A4414

$453.64

All Prices Shown are (ex GST)

Bulk Pricing

ea	$453.64
2+	$390.00
2+	$359.09

i h

Overview
Details
Warranty
Downloads

Overview

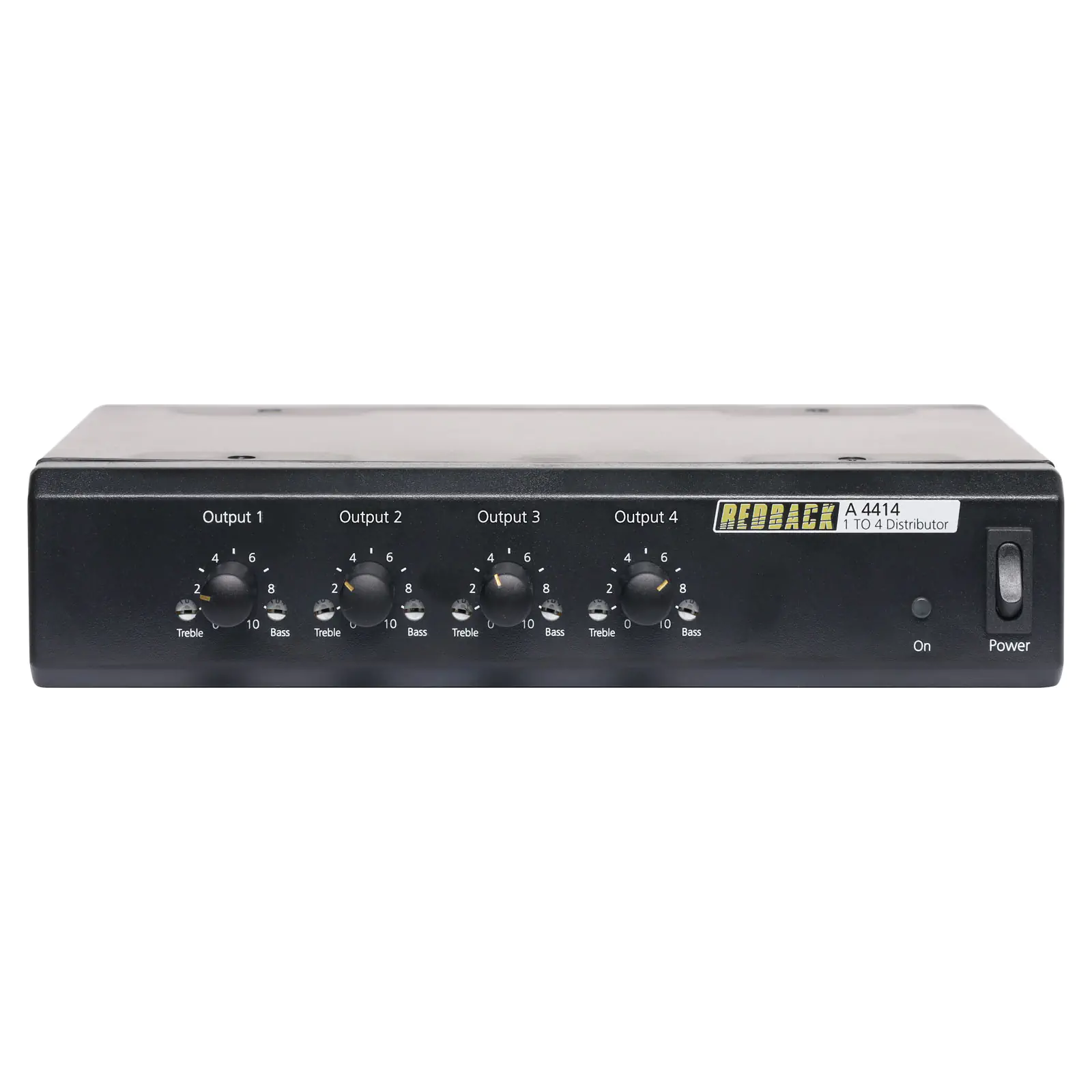

This compact half rack distributor comprises of a single 3 pin balanced XLR input to four 3 pin balanced XLR outputs. Great for splitting a single audio source out to multiple zones without interference between channels. The input and all outputs can be configured individually for either mic or line level operation. Front panel volume and recessed treble and bass controls are provided for each output. A “loop” output 3 pin XLR socket is provided to connect additional units to increase the total number of outputs as required. It is housed in a half rack 1RU cabinet and powered by 24V DC power source (power supply included).

Features:

Balanced input and outputs
3 pin XLR connections
Mic or line level operation for individual input/outputs
Loop output for connection to multiple distributors
Compact half rack 1RU cabinet
24V DC operation
Australian designed and manufactured

Specifications:

Connections:

Inputs: 1 x 3 pin XLR balanced female

Outputs: 4 x 3 pin XLR balanced male

Loop Output: 1 x 3 pin XLR balanced male

Controls:

Power switch

Volume (outputs 1 to 4)

Bass & treble adjustment

Sensitivity selectors (rear mounted DIP switch)

General:

Power Supply: 24V DC @ 1 Amp

Dimensions: 210W x 122D x 44H

Weight: 0.4 kg

Backed by an industry leading 10 Year Manufacturer Warranty.

Our Redback products have a long tried and tested history of bulletproof reliability. Altronics offers a 10 Year Warranty on all Australian Made Redback products. Our local in-house service department has all the know how to answer technical queries and provide timely service.

100% developed, designed & assembled in Australia.

Since 1974 Redback PA products have been manufactured in Perth, Western Australia by Altronics. With over 50 years experience in the commercial audio industry, we offer consultants, installers and end users reliable products of high build quality with local product support.

Details

Products specifications

Warranty	10 Years
Professional Audio
Type	Public Address Mixers

Warranty

WARRANTY

We offer 10 Years warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.

Downloads

Instructions

PDF
