PowerShield’s Simple Network Managment Protocol (SNMP) cards offer a choice of remote management options. Control and monitor one or multiple UPS systems and perform management tasks including scheduled shutdowns, startups, and reboots by simply installing the Lite, V4 or Cyber Secure SNMP Card.

SNMP Communications Card Lite V1

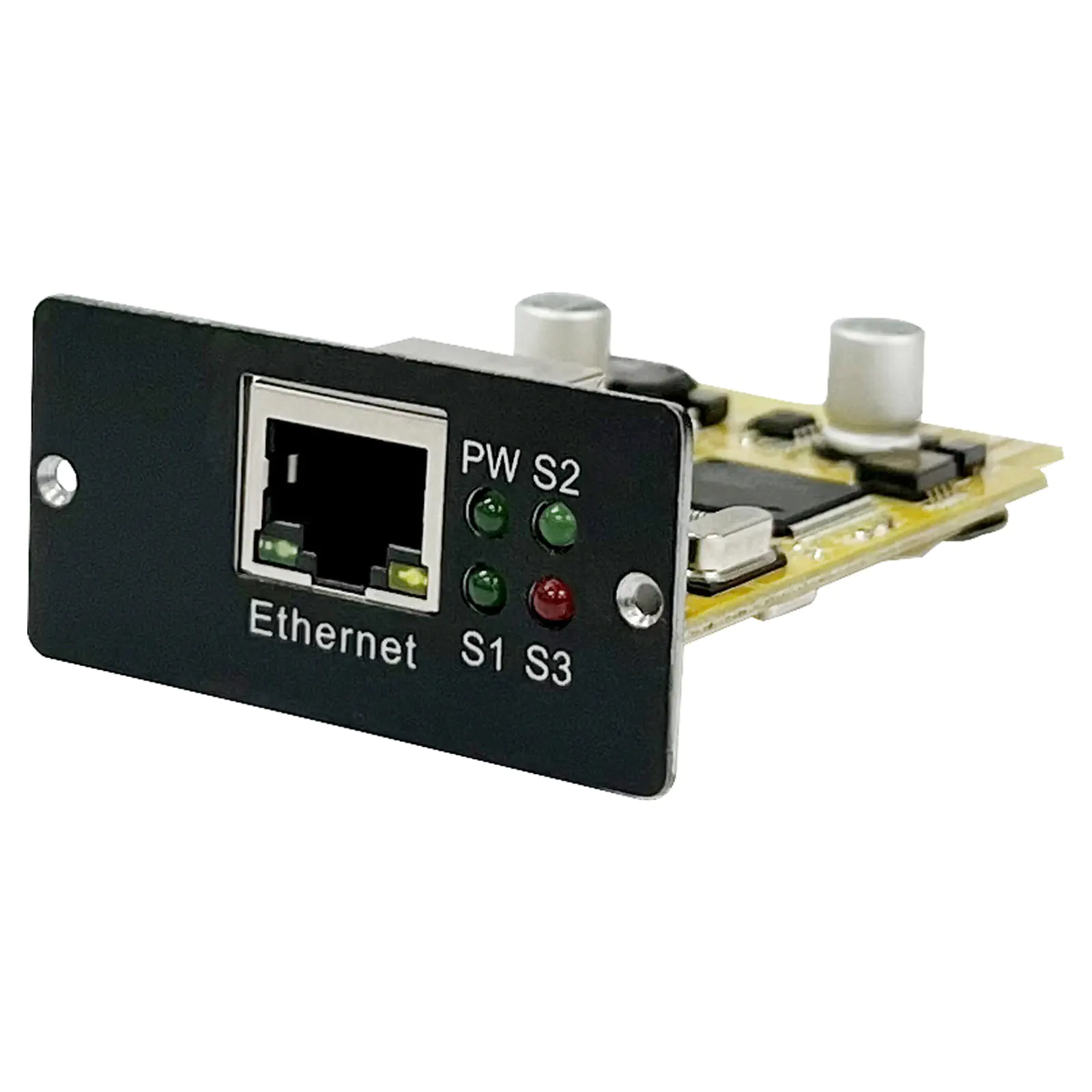

Name: SNMP Communications Card Lite V1
SKU: DA0891
Price: 280.00 AUD
Availability: InStock

by: PowerShield

SKU: DA0891

PowerShield’s Simple Network Managment Protocol (SNMP) cards offer a choice of remote management options. Control and monitor one or multiple UPS systems and perform management tasks including scheduled shutdowns, startups, and reboots by simply installing the Lite, V4 or Cyber Secure SNMP Card.

$280.00

All Prices Shown are (ex GST)

Bulk Pricing

ea $280.00

i h

Overview
Details
Warranty
Downloads

Overview

Specifications:

Technical

CPU: ARM Cortex-M4 micro-controller

RAM: 160KB SDRAM

Flash: 512KB Flash

Network Port: 10/100mbps high speed Ethernet adaptive

Serial Port: A high speed asynchronous RS232 serial port be used for UPS communication and upgrade process

Support Browser: Chromium based browsers, Chrome &Edge.

SNMP MIB: Support MIB-II(RFC1213,RFC1315,RFC1316),PPC MIB

Network Protocol: TCP/IP, UDP, SNMP etc.

Input Power(DC): Rated:12V Allowed Range:8Volt-14Volt

LED Indicator Light: Power, Status,LAN 10/100M Link/Active

Working Current: 70mA~150mA MAX:1W

System Security: Supply filtering mechanism based on IP, user ID and password protect of system operation and control management

General

Power Consumption: 12V (min 9V, 14V Max) 150mA

Dimensions: 42 x 80 x 26mm (L x W x H)

Operating Environment

Environment Temperature: 0C~40C

Relative Humidity: 20-95% non-condensing

Features:

Stand-alone embedded system
User configurable accessibility rights
The built-in optimised IP Power communication protocol ensures real-time performance of data collection and can be used together with IP Power SE software to realise remote centralised monitoring.
Supports WEB browser configuration management modes.
Users can remotely control UPS shutdown, self-test, and restart.
Supports standard UPS MIBs (RFC1628) and PPC MIBs.
10/100Mbps Ethernet network
Support TLS/SSL protocol
Automatically sends event and alert notifications via E-mail, SNMP Trap and IP Power messages
With IP Power SE software installed, Network servers/workstations can be safely and smoothly shut down to avoid data loss and equipment damage caused by utility power failure.
Support SSL/STARTTLS encrypted mailbox protocol (For example, Gmail, Outlook, etc.)
2 years warranty

Details

Products specifications

Warranty	12 Months

Warranty

WARRANTY

We offer 12 Months warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.

Downloads

Manual

PDF
