Heavy Duty Red 22mm Momentary Push Button Switch activates only while pressed and returns to its original position when released.

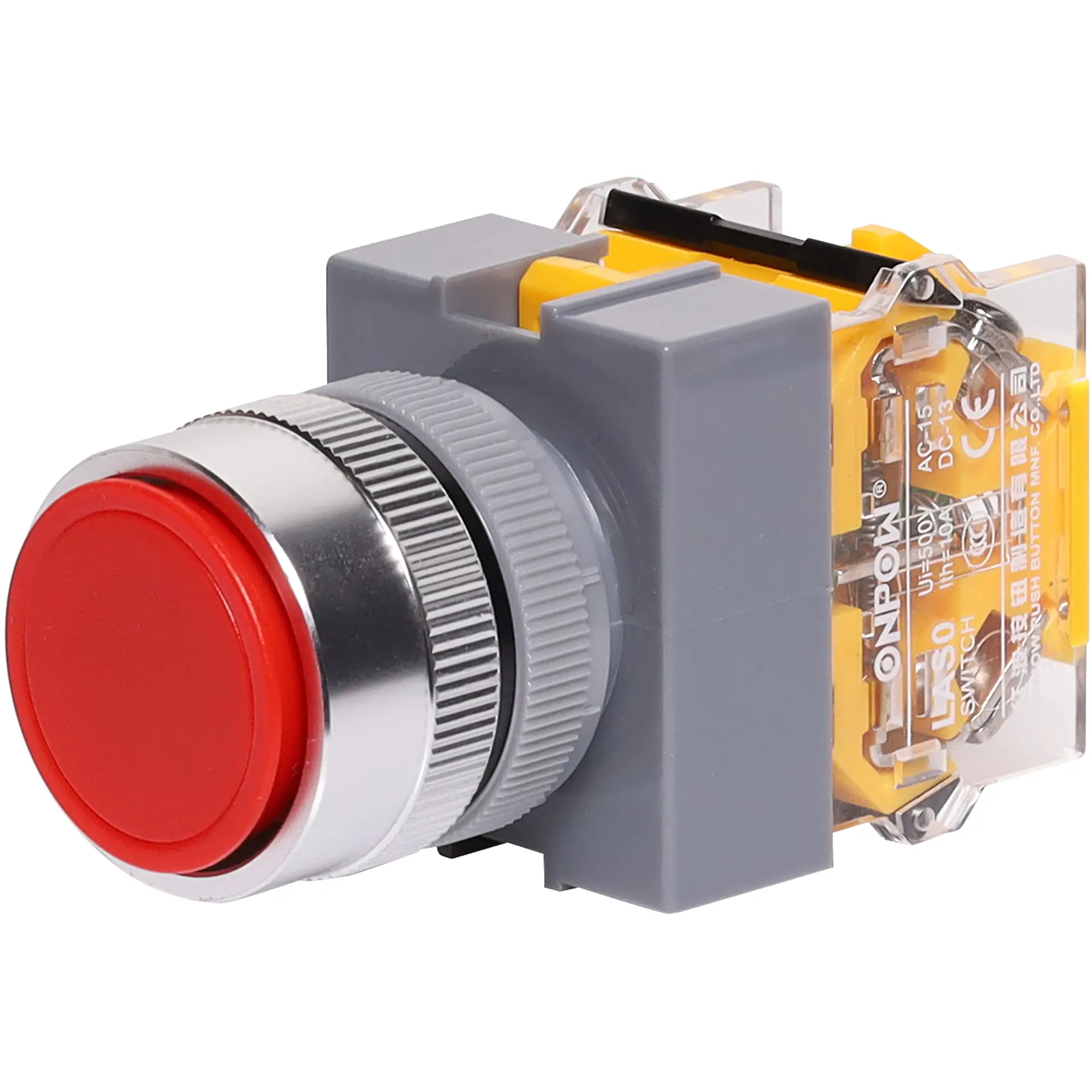

Round Red Momentary Heavy Duty Switch

Name: Round Red Momentary Heavy Duty Switch
SKU: S0827
Price: 18.14 AUD
Availability: InStock

SKU: S0827

Heavy Duty Red M22 / 22mm Momentary Push Button Switch activates only while pressed and returns to its original position when released.

$18.14

All Prices Shown are (ex GST)

Bulk Pricing

ea	$18.14
10+	$16.82
25+	$15.91

i h

Overview
Details
Warranty

Overview

This Heavy Duty Red 22mm Momentary Push Button Switch activates only while pressed and returns to its original position when released, unlike a "latching" switch which stays in the pressed position. It’s ideal for applications requiring temporary control, such as machinery start/stop functions. The bold red button provides clear visibility, while the rugged construction ensures durability under heavy use.

Specifications:

Button Colour: Red

Switch rating: 500V 10A

Mechanical Life: ≥1000,000 cycles (momentary), ≥500,000 cycles (latching)

Electrical Life: ≥50,000 cycles

Contact Resistance: ≤200mΩ

Insulation Resistance: ≥100MΩ (500V DC)

Power Frequency withstand voltage: 3,000V, RMS 50Hz, 1min

Operating temperature: -25°C to 55°C (no freezing, keep the air flowing around push button)

Torque: ~0.6Nm applied to nut

Operating force: ~10N

Operating travel: ~5mm

Front Panel protection degree: IP40

Terminal type: Thread connection

Diameter of welded wire: 2 x 1.5mm² Max

General Tolerance: 0-18mm=±0.25, 18-80mm=±0.52

Materials:

Contact: Silver Alloy

Button: POM

Body: ABS

Base: PC

Details

Products specifications

Warranty	12 Months
Switches
Action	Momentary
Connection	Screw Terminals
Type	Panel Mount Switches
Contacts	DPDT

Warranty

WARRANTY

We offer 12 Months warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.
