A secure heavy duty key-operated switch for industrial control. Features 1NO1NC contacts to safely manage two circuits at once.

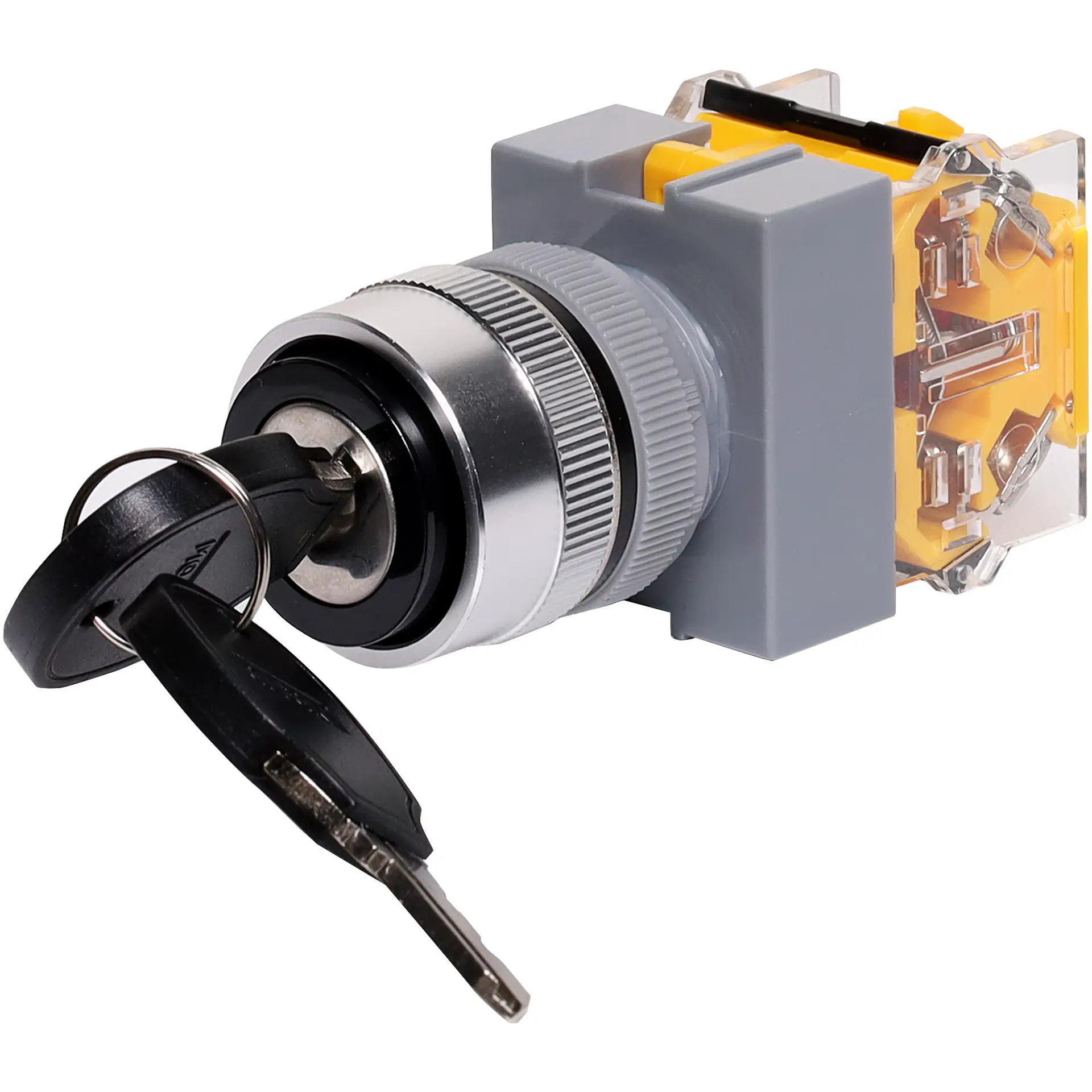

2 Position 1NO1NC Heavy Duty Keyswitch

Name: 2 Position 1NO1NC Heavy Duty Keyswitch
SKU: S0825
Price: 18.14 AUD
Availability: InStock

SKU: S0825

A secure heavy duty M22 / 22mm key-operated switch for industrial control. Features 1NO1NC contacts to safely manage two circuits at once.

$18.14

All Prices Shown are (ex GST)

Bulk Pricing

ea	$18.14
10+	$16.82
25+	$15.91

i h

Overview
Details
Warranty

Overview

This 2 Position Heavy Duty Keyswitch acts as a secure, industrial-grade, and durable on/off switch for control applications, requiring a key for activation to prevent accidental or unauthorized use. The "1NO1NC" configuration means it has one Normally Open (NO) contact and one Normally Closed (NC) contact, allowing it to control two separate circuits or components simultaneously while the key is turned between its two positions, making it a versatile choice for machinery and equipment panels.

Features:

Key mechanism provides security preventing unauthorized use

2-position maintained action – ON/OFF control

1NO + 1NC Contact configuration

Switch is built with rugged, industrial-grade materials to withstand harsh environments and continuous operation.

Specifications:

Switch rating: 500V 10A

Mechanical Life: ≥1000,000 cycles (momentary), ≥500,000 cycles (latching)

Electrical Life: ≥50,000 cycles

Contact Resistance: ≤50mΩ

Insulation Resistance: ≥100MΩ (500V DC)

Power Frequency withstand voltage: 3,000V, RMS 50Hz, 1min

Operating temperature: -25°C to 55°C (no freezing, keep the air flowing around push button)

Operating requirement: 90°C rotation requires rotation in place

General Tolerance: 0-18mm=±0.25, 18-80mm=±0.52

Materials:

Contact: Silver Alloy

Head: PA/Al-Alloy/Stainless Steel

Body: ABS

Base: PC

Details

Products specifications

Warranty	12 Months
Switches
Connection	Solder Tail
Type	Panel Mount Switches
Contacts	DPDT

Warranty

WARRANTY

We offer 12 Months warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.
