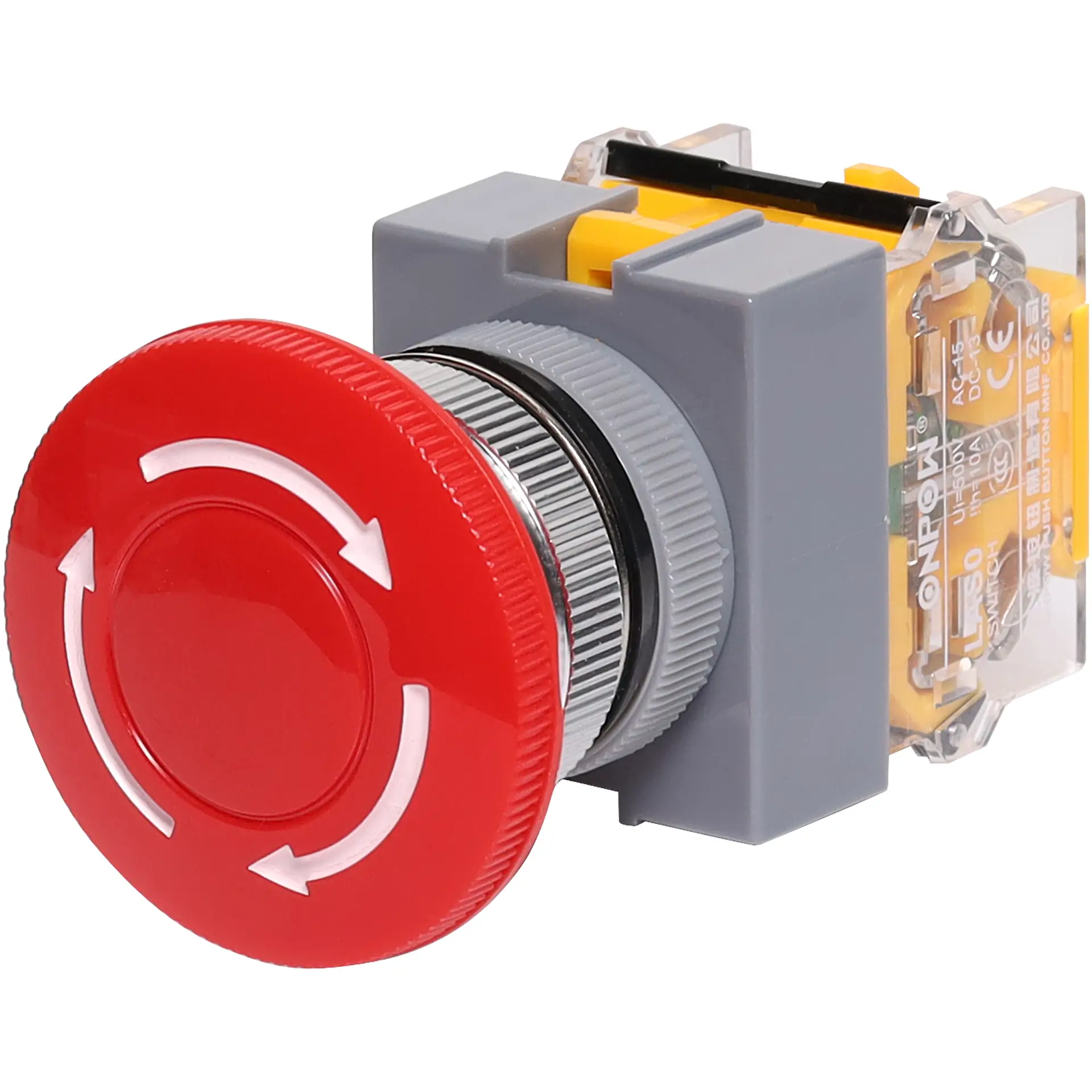

Emergency Stop Push Lock Turn Reset Switch

SKU: S0824
1NO1NC Emergency Stop Switch in M22 / 22mm size rated at 500V/10A. Push-to-lock, twist-to-reset design ensures safe, dependable emergency shutdown for machinery and control panels.
$18.14

All Prices Shown are (ex GST)
Bulk Pricing
ea $18.14
10+ $16.82
40+ $15.91
i h

Overview

The 1NO1NC Emergency Stop Push Lock Turn Reset Switch provides a fast and secure way to shut down equipment in emergency situations. The "Push Lock Turn" mechanism ensures the button stays latched in the stop position until deliberately reset by a twist, preventing accidental restarts and enhancing safety. Ideal for use in machinery, automation systems, and industrial control



Features:

  • 1NO1NC contacts for versatile control applications.

  • Push-to-lock mechanism for secure emergency shutdown.

  • Bright red button for quick identification and operation.

  • Durable construction designed for industrial environments.

  • Panel-mount design for easy installation in control systems.

  • Enhanced operator safety by preventing accidental equipment restarts.



Specifications:



Switch type: 1NO1NC

Switch rating: 500V 10A

Mechanical Life: ≥1000,000 cycles (momentary), ≥500,000 cycles (latching)

Electrical Life: ≥50,000 cycles

Contact Resistance: ≤200mΩ

Insulation Resistance: ≥100MΩ (500V DC)

Power Frequency withstand voltage: 3,000V, RMS 50Hz, 1min

Operating temperature: -25°C to 55°C (no freezing, keep the air flowing around push button)

Torque: ~0.6Nm applied to nut

Operating force: ~10N (1NO 1NC)

Operating travel: ~5mm

Front Panel protection degree: IP40

Terminal type: Thread connection

Diameter of welded wire: 2 x 1.5mm² Max

General Tolerance: 0-18mm=±0.25, 18-80mm=±0.52



Materials:

Contact: Silver Alloy

Button: POM

Body: ABS

Base: PC



Details

Products specifications

Warranty 12 Months
Switches
Connection Solder Tail
Type Panel Mount Switches
Contacts DPDT

Warranty

WARRANTY

We offer 12 Months warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.
