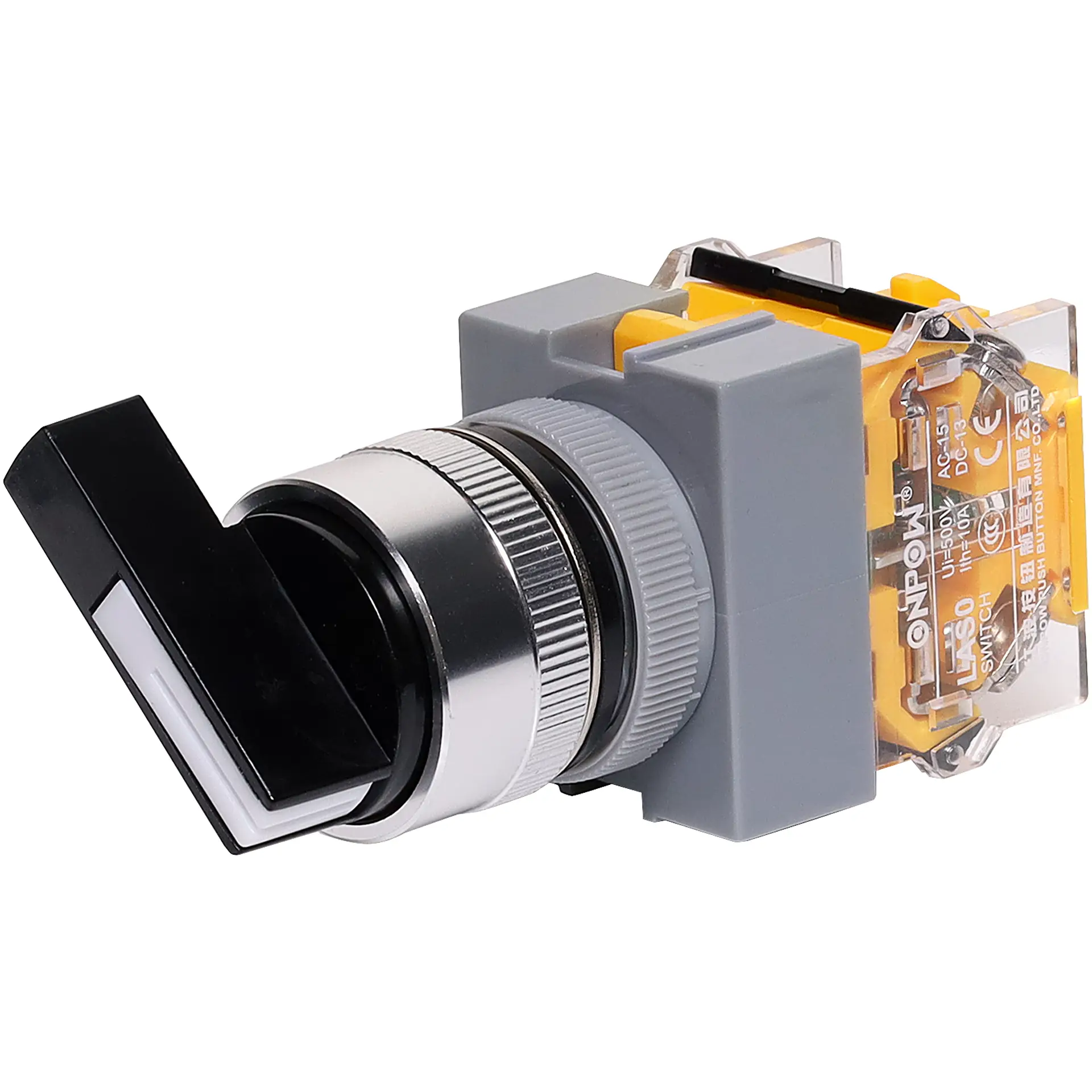

Heavy Duty Lever Switch

SKU: S0826
This 22mm / M22 lever operated switch provides a clear, responsive, and intuitive interface for users to control machinery.
$18.14

All Prices Shown are (ex GST)
Bulk Pricing
ea $18.14
10+ $16.82
25+ $15.91
i h

Overview

This 22mm / M22 lever operated switch provides a clear, responsive, and intuitive interface for users to control machinery, regulate large electrical switching currents.



Specifications:



Switch rating: 500V 10A

Mechanical Life: ≥1000,000 cycles, ≥500,000 cycles

Electrical Life: ≥50,000 cycles

Contact Resistance: ≤200mΩ

Insulation Resistance: ≥100MΩ (500V DC)

Power Frequency withstand voltage: 3,000V, RMS 50Hz, 1min

Operating temperature: -25°C to 55°C (no freezing, keep the air flowing around push button)

Torque: ~0.6Nm applied to nut

Front Panel protection degree: IP40

Terminal type: Thread connection

Diameter of welded wire: 2 x 1.5mm² Max

General Tolerance: 0-18mm=±0.25, 18-80mm=±0.52

Operating requirement: 90°C rotation requires rotation in place

General Tolerance: 0-18mm=±0.25, 18-80mm=±0.52



Materials:

Contact: Silver Alloy

Button: POM

Body: ABS

Base: PC



Details

Products specifications

Warranty 12 Months
Switches
Connection Solder Tail
Action Alternate
Type Panel Mount Switches
Contacts DPDT
