This Heavy Duty Green 22mm Alternate Push Button Switch stays in its activated state after being pressed once, and requires a second press to return to the original state.

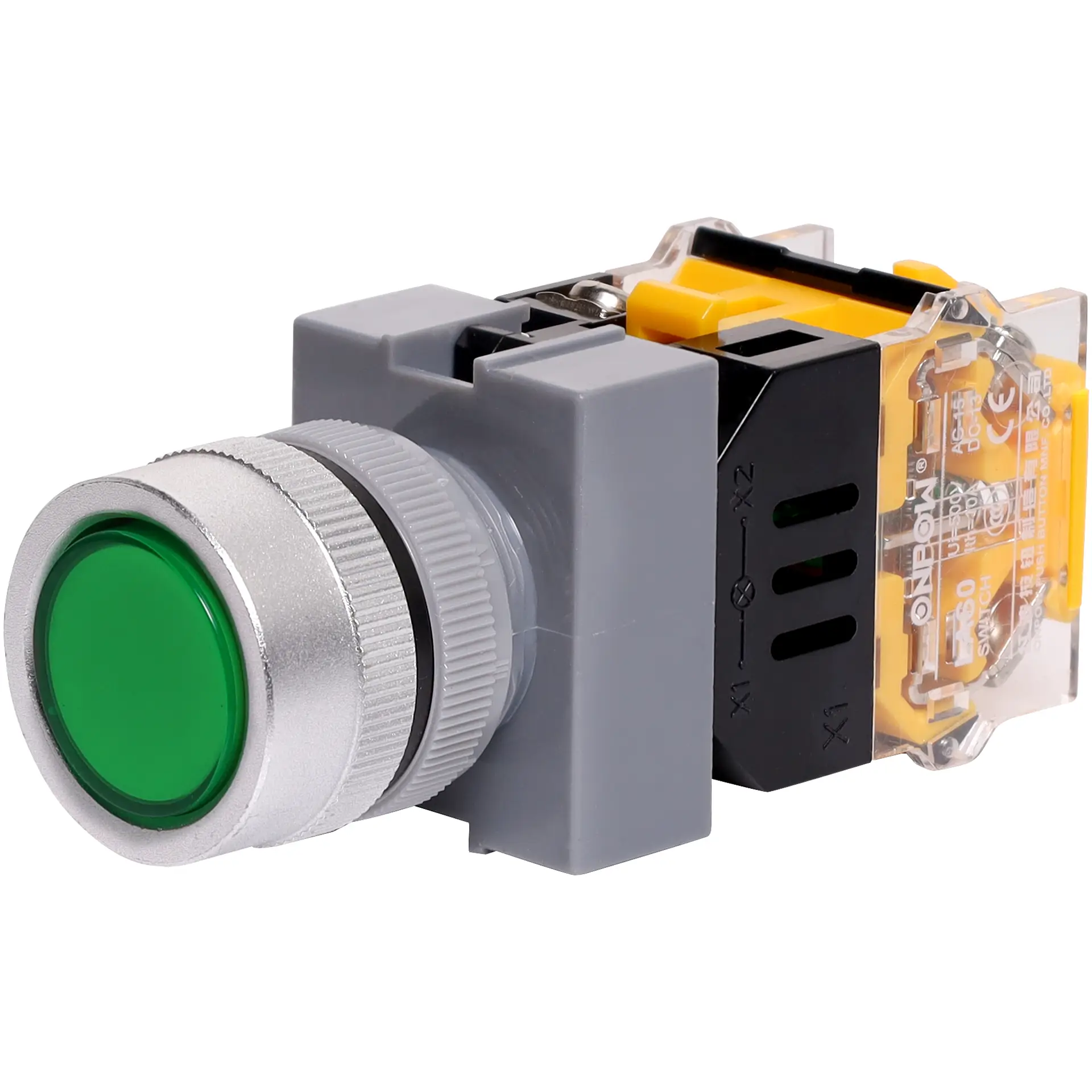

Round Green Alternate Heavy Duty Switch

Name: Round Green Alternate Heavy Duty Switch
SKU: SA0828
Price: 20.45 AUD
Availability: InStock

SKU: SA0828

This Heavy Duty Green M22 / 22mm Alternate Push Button Switch stays in its activated state after being pressed once, and requires a second press to return to the original state.

$20.45

All Prices Shown are (ex GST)

Bulk Pricing

ea	$20.45
10+	$19.55
25+	$17.73

i h

Overview
Details
Warranty

Overview

This Heavy Duty Green 22mm Alternate Push Button Switch stays in its activated state after being pressed once, and requires a second press to return to the original state. It’s ideal for applications requiring a "latching" switch, for example; standard light switches, power switches on a TV or certain industrial controls. The bold red button provides clear visibility, while the rugged construction ensures durability under heavy use.

Specifications:

Button Colour: Green

Switch rating: 500V 10A

Mechanical Life: ≥1000,000 cycles (momentary), ≥500,000 cycles (latching)

Electrical Life: ≥50,000 cycles

Contact Resistance: ≤200mΩ

Insulation Resistance: ≥100MΩ (500V DC)

Power Frequency withstand voltage: 3,000V, RMS 50Hz, 1min

Operating temperature: -25°C to 55°C (no freezing, keep the air flowing around push button)

Torque: ~0.6Nm applied to nut

Operating force: ~10N

Operating travel: ~5mm

Front Panel protection degree: IP40

Terminal type: Thread connection

Diameter of welded wire: 2 x 1.5mm² Max

General Tolerance: 0-18mm=±0.25, 18-80mm=±0.52

Materials:

Contact: Silver Alloy

Button: POM

Body: ABS

Base: PC

Details

Products specifications

Warranty	12 Months
Switches
Action	Alternate
Connection	Screw Terminals
Type	Panel Mount Switches
Contacts	DPDT
