Designed to work in conjunction with X3216A strip lighting.

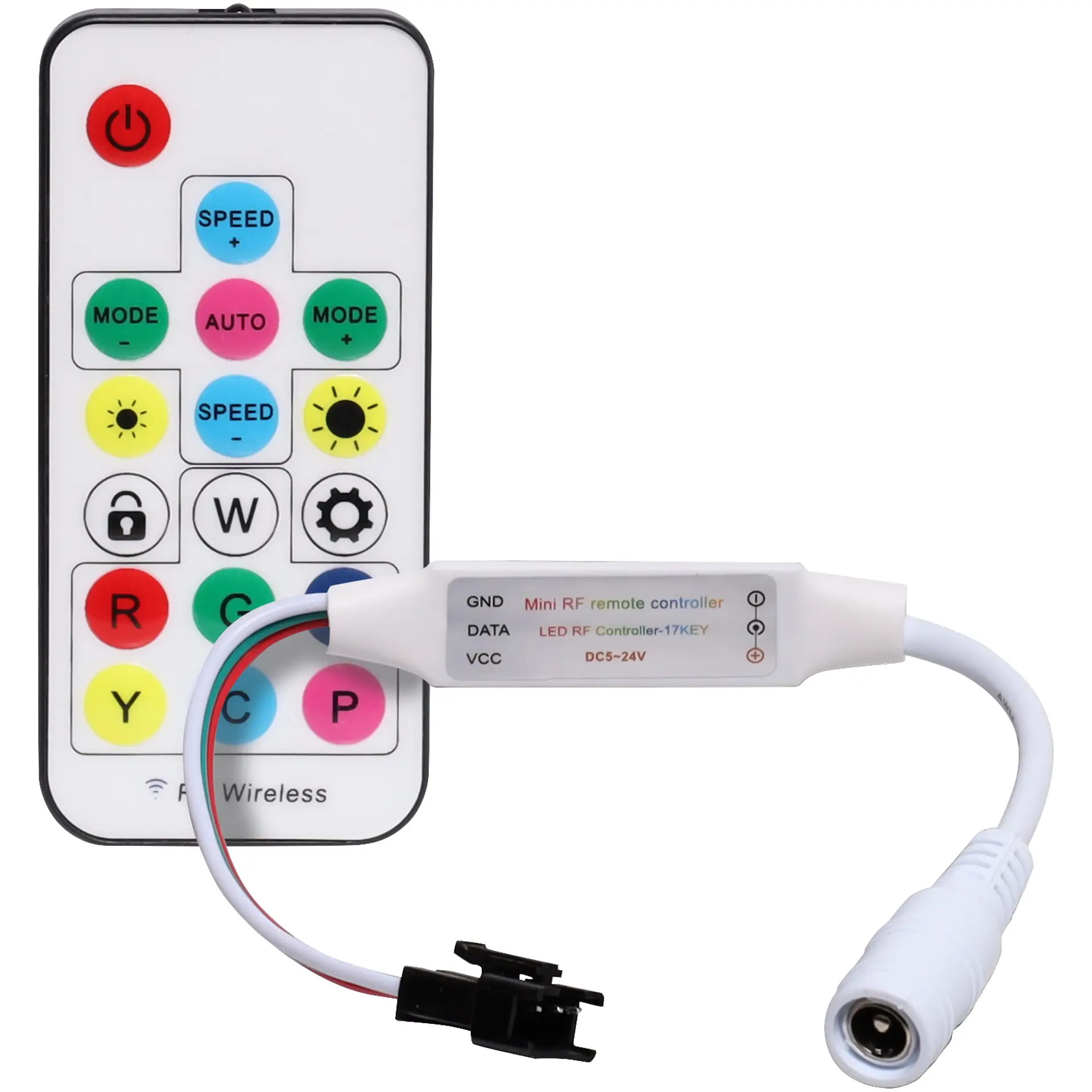

Unit Controller And Infra Red Remote For X3216A

Name: Unit Controller And Infra Red Remote For X3216A
SKU: X3219A
Price: 25.68 AUD
Availability: InStock

by: Genlamp

SKU: X3219A

Designed to work in conjunction with X3216A strip lighting.

$25.68

All Prices Shown are (ex GST)

Bulk Pricing

ea	$25.68
2+	$23.41
4+	$21.77

i h

Overview
Details
Warranty
Downloads

Overview

This unit controller and remote is designed for use with RGB Magic LED strip lighting. Offers 358 built-in lighting effects with adjustable brightness and speed, supporting up to 2048 pixels. Features include static and dynamic modes such as solid colour, jump, gradient, flash and automatic cycle, with quick mode switching and memory function to retain settings.
Maximum current 6A (equates to approx. 15m of strip lighting per controller). 2.1mm DC jack power input. For compatible power supplies there are two options dependant on what strip you are using. This controller can work with both X3216A and X3223A. Please see accessories listed below (M8937D to be used with X3216A and M8911B to be used with X3223A).

Remote uses CR2025 battery.

Please Note: If your X 3219A is supplied with a black plug, this is not required for use with X 3216A and can simply be cut off.”

Note: if strip lights up green when powering up, swap the controller to the other end of the LED strip and retest.

Specifications:

Performance Parameters:

Working Temperature: -20 to 60°C

Supply Voltage: 5-24V DC

Output: Set of SPI signals

Working Current: <60mA

Effect Mode: 358 kinds

Max Number of Control Points: 2048 pixels

Remote Control:

Power Source: 1 x CR2025 lithium coin cell battery

RF Signal: Infra-Red

Weight: 25g

Dimensions: 90L x 45W x 9H mm

THIS PRODUCT CONTAINS A BUTTON BATTERY.

If swallowed, a lithium button battery can cause severe or fatal injuries within two hours.
Keep batteries out of reach of children.
If you suspect your child has swallowed or inserted a button battery, immediately call the 24-hour poisons information centre on 13 11 26 (within Australia) and seek medical attention.
