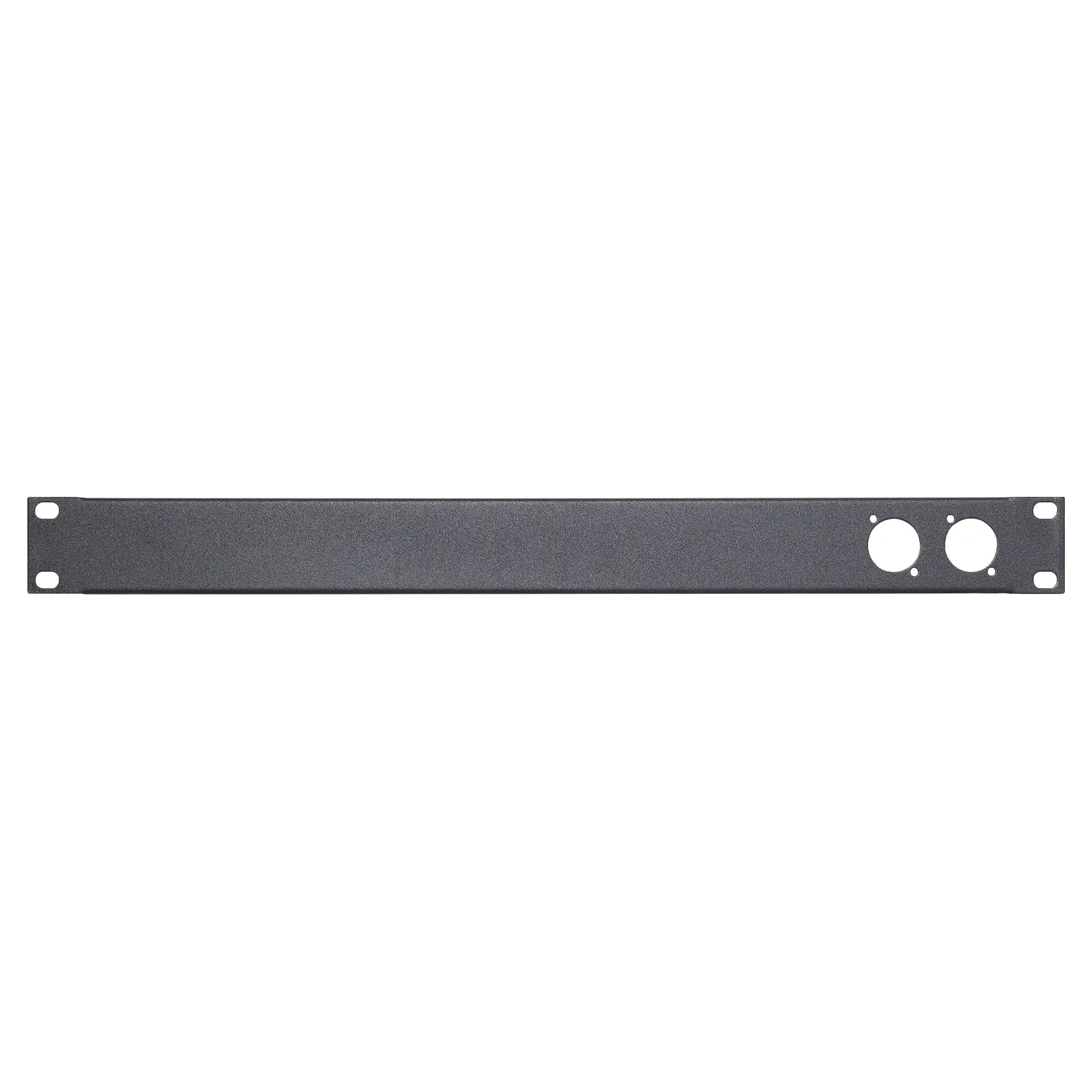

1U 2 Way 'D' Series Connector 19" Patch Panel

by: Zip-Rack
SKU: H5168
Pre-punched 1RU rack panel with two sets of D series compatible mounting holes. This panel is ideal for test connections in 19" rack systems. Tough black powder coated finish.
$20.86

All Prices Shown are (ex GST)
Bulk Pricing
ea $20.86
4+ $18.77
10+ $16.68
i h

Overview

Pre-punched 1RU rack panel with two sets of D series compatible mounting holes. This panel is ideal for test connections in 19" rack systems. Tough black powder coated finish. Suits the following connectors:

P 0774 Chassis Plug 240V 20A
P 0881 Plastic 3 Pin Male XLR
P 0883 Plastic 3 Pin Female XLR
P 0833 Neutrik HDMI Chassis D Series Silver.
P 0850 Neutrik 3 Pin Female XLR D Series Silver.
P 0852 Neutrik 3 Pin Male XLR D Series Silver.
P 0903 Amphenol 3 Pin Female XLR D Series Silver
P 0905 Amphenol 3 Pin Female XLR D Series Black
P 0907 Amphenol 3 Pin Male XLR D Series Silver
P 0908 Amphenol 3 Pin Male XLR D Series Black
P 0917 Amphenol 4 Pin Female XLR D Series Silver
P 0918 Amphenol 4 Pin Male XLR D Series Silver
P 0923 Amphenol 5 Pin Female XLR D Series Silver
P 0925 Amphenol 5 Pin Female XLR D Series Black
P 0927 Amphenol 5 Pin Male XLR D Series Silver
P 0928 Amphenol 5 Pin Male XLR D Series Black
P 0830 Neutrik RJ45 Cat6 Socket D Series Silver
P 0836 Neutrik USB D Series Silver
P 0837 Neutrik USB D Series Black
P 0808 RCA Socket Yellow D Series
P 0809 RCA Socket White D Series
P 0812 RCA Socket Red D Series

Note: This list is not definitive and may change as Altronics adds connectors to its range. As a guide, any connector with 24H x 19W mm bolt spacing will be suitable.
