Australian Made

5 Pin XLR PTT Microphone Wallplate UTP Transmitter

by: Redback
SKU: A5138

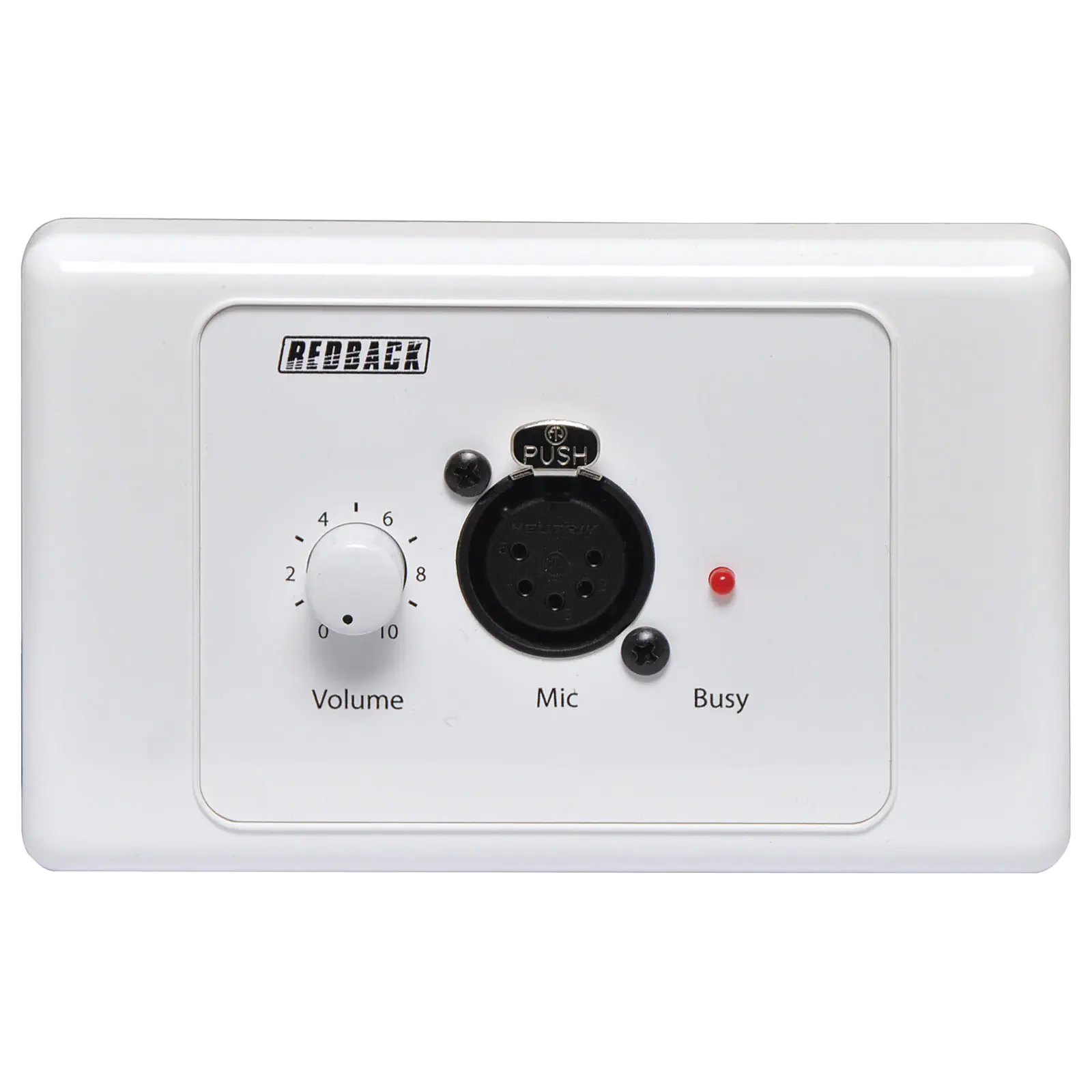

The A5138 UTP wall plate has a standard 5 Pin XLR connector for connection of microphones with PTT switches.
$181.82

All Prices Shown are (ex GST)
Bulk Pricing
ea $181.82
2+ $168.18
i h

Overview

This UTP transmitter wall plate has a standard 5 Pin XLR connector for connection of microphones with PTT switches. This connection is ideal for typical supermarket microphones such as Redback C 0325 or C 0327. The low output level of the microphone is converted to a high level output which is fed down the Cat5 UTP cabling. The output level can be adjusted by the volume control.

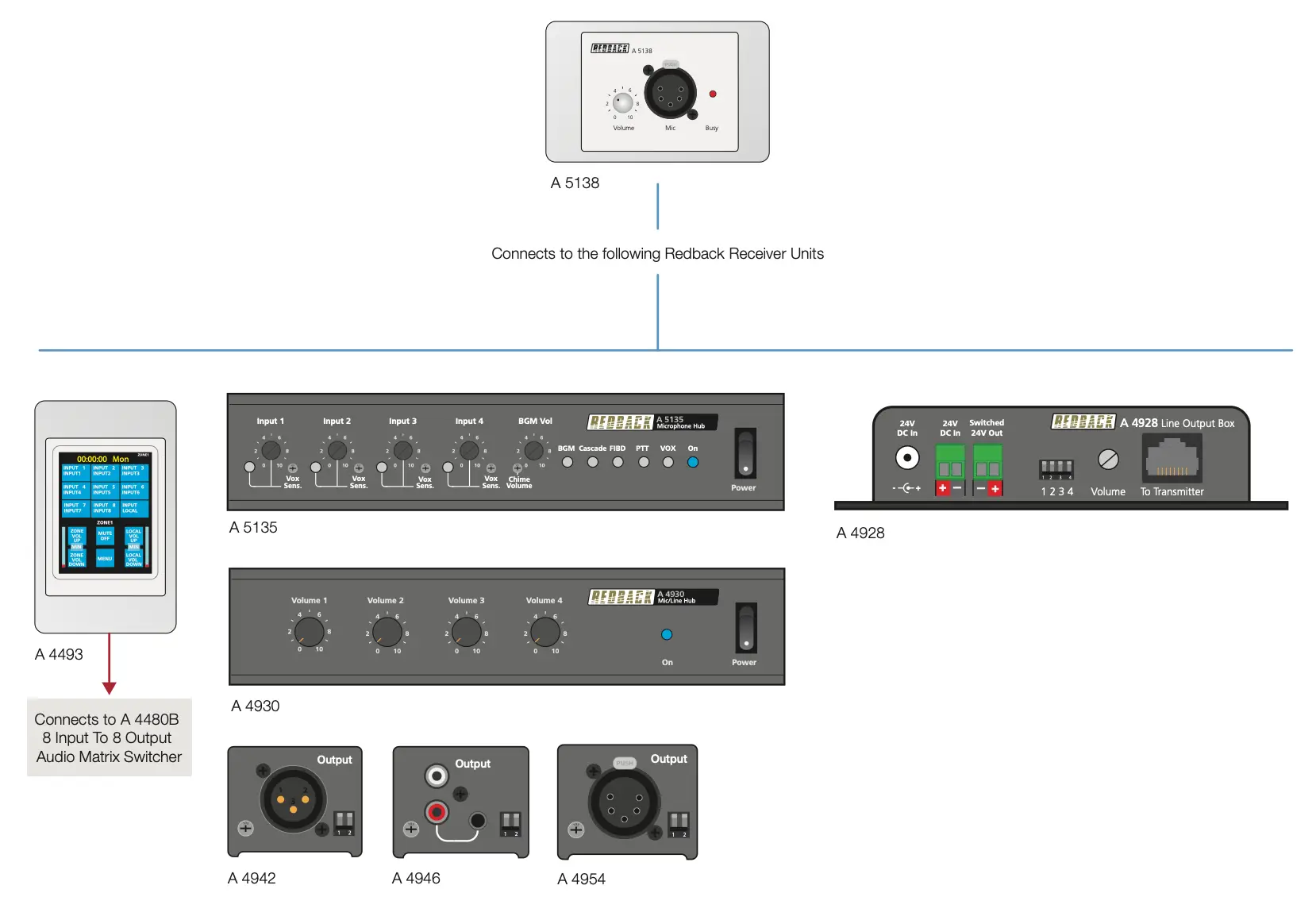

connection matrix



Part of the Redback UTP Solutions Range.
This product is part of the Redback UTP solutions range, a suite of interchangeable transmitters and receivers for connecting different types of audio signals between local zones and equipment racks. View the connection matrix for this product to see which items it will connect to in the Redback range.





Specifications:

Input Mic Level Sensitivity: 3mV

Output Connector: RJ45 8P8C

Input Connector: 5 pin XLR balanced





10 year warranty

Backed by an industry leading 10 Year Manufacturer Warranty.

Our Redback products have a long tried and tested history of bulletproof reliability. Altronics offers a 10 Year Warranty on all Australian Made Redback products. Our local in-house service department has all the know how to answer technical queries and provide timely service.

australian made

100% developed, designed & assembled in Australia.

Since 1974 Redback PA products have been manufactured in Perth, Western Australia by Altronics. With over 50 years experience in the commercial audio industry, we offer consultants, installers and end users reliable products of high build quality with local product support.

Details

Products specifications

Warranty 10 Years
Professional Audio
Type Public Address Mixers

Warranty

WARRANTY

We offer 10 Years warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.

Downloads

.pdf
Instructions
PDF
.pdf
Connection Matrix
PDF
