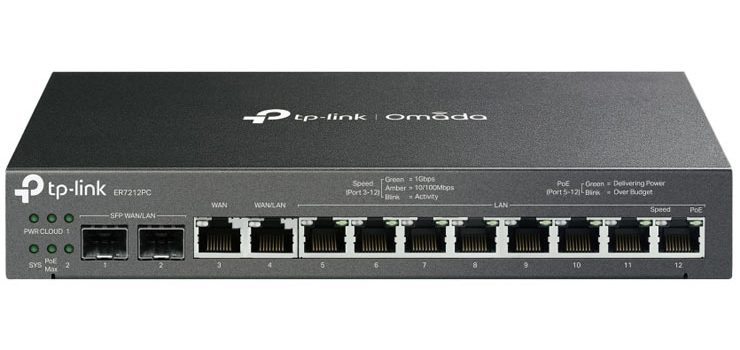

The TP-Link Omada ER7212PC is designed to meet the evolving demands of today’s business environments, combining reliable performance with robust security and adaptability. It supports a wide range of VPN protocols—such as IPSec, PPTP, L2TP, and OpenVPN—enabling secure remote connectivity for employees. Featuring high-speed NAT throughput reaching up to 942.1 Mbps for downloads and 940.2 Mbps for uploads, it provides fast and consistent Internet access across all connected devices. Its 110-watt PoE power capacity supports multiple PoE-enabled devices, offering a flexible networking setup. The fanless design contributes to noiseless operation, making it ideal for both office and quieter workspaces. Equipped with advanced encryption and security features, the Omada ER7212PC V1 delivers a dependable and secure networking solution for businesses aiming to improve both performance and protection.

Features

• 3-in-1 Router: Integrates router, PoE switch, and Omada controller altogether to centrally manage up to 1 router, 2 switches, and 10 EAPs.
• Professional Hardware: Dual-Core 1.2 GHz CPU with 1GB DDR3 memory provides stellar performance for up to 12× Gigabit ports.
• Up to 4× WAN Ethernet Ports: Equipped with 2× Gigabit SFP WAN/LAN ports, 1× Gigabit RJ45 WAN port, and 1× Gigabit RJ45 WAN/LAN port.
• 110W PoE Budget: 8× 802.3at/af-compliant PoE+ RJ45 LAN ports yield a total power supply of 110W*.
• Centralised Management: Cloud access and the Omada app offer convenience and easy management.
• Highly Secure VPN: Supports IPsec VPN, OpenVPN, and L2TP/PPTP VPN connections.
• Easy Installation: Fanless and compact design for desktop and wall mounting.

• Altronics Code: D4186
• Manufacturer's Code: ER7212PC
• I/N: 18510
• Barcode: 4897098688717
• Shipping Weight: 1.98000Kg
• Packaging Sizes
• EACH: 1
• Large Image 1
• Large Image 2
• Large Image 3
• Large Image 4

• HARDWARE
• Standards and Protocols: IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE 802.1q
• TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, SNMP
• Interface: 2 Gigabit SFP WAN/LAN ports, 1 Gigabit WAN port, 1 Gigabit LAN/WAN port, 8 Gigabit LAN ports
• NETWORK MEDIA
• 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m)
• EIA/TIA-568 100Ω STP (Max 100 m)
• 100BASE-TX: UTP category 5, 5e cable (Max 100 m)
• EIA/TIA-568 100Ω STP (Max 100 m)
• 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m)
• GENERAL
• Fan Quantity: Fanless
• Button: Reset Button
• Power Supply: 53.5VDC/2.43A Adapter
• PoE Budget: 8 ports PoE+ output, 110 W PoE Budget
• Flash: 8Mb Nor + 4 GB EMMC
• DRAM: 1 GB DDR3
• Dimensions ( W x D x H ): 226 × 131 × 35 mm
• Protection: 4 kV surge protection
• Enclosure: Steel
• Mounting: Desktop/Wall-mount
• PERFORMANCE
• Concurrent Session:    24,980
• New Sessions /Second: 1,900
• NAT (Static IP):    935.5 Mbps / 942.1 Mbps
• NAT(DHCP):    940.2 Mbps / 941.7 Mbps
• NAT(PPPoE):    913.1 Mbps / 935.2 Mbps
• NAT (L2TP):    545.0 Mbps / 912.7 Mbps
• NAT (PPTP):    523.0 Mbps / 912.8 Mbps
• IPsec VPN Throughput (AES256):    168.5 Mbps
• OpenVPN:    34 Mbps
• L2TP VPN Throughput: Unencrypted: 845.3 Mbps, Encrypted: 333.2 Mbps
• PPTP VPN Throughput: Unencrypted: 1012.6 Mbps, Encrypted: 401.4 Mbps
• 66 Byte Packet forwarding rate:    154,069 pps / 156,977 pps
• 1,518 Byte Packet forwarding rate:    81,193 pps / 81,193 pps
• BASIC FUNCTIONS
• WAN Connection Type: Static IP, Dynamic IP, PPPoE, PPTP, L2TP
• DHCP: DHCP Server, DHCP Address Reservation, Multi-IP Interfaces, Multi-Net DHCP
• IPv6: support
• VLAN: 802.1Q VLAN
• IPTV:: IGMP v2/v3 Proxy
• ADVANCED FUNCTIONS
• Advanced Routing: Static Routing, Policy Routing
• Bandwidth Control: IP/Port-based Bandwidth Control, Load Balance, Intelligent Load Balance, Application Optimized Routing, Link Backup, Online Detection
• NAT: Multi-Net NAT, Virtual Server, NAT-DMZ, FTP/H.323/SIP/IPSec/PPTP ALG, UPnP
• Session Limit: IP-based Session Limit
• VPN
• IPsec VPN
• - 20 IPSec VPN Tunnels
• - LAN-to-LAN, Client-to-LAN
• - Main, Aggressive Negotiation Mode
• - AES128, AES192, AES256 Encryption Algorithm
• - IKE v1/v2
• - SHA1, SHA2 Authentication Algorithm
• - NAT Traversal (NAT-T)
• - Dead Peer Detection (DPD)
• - Perfect Forward Secrecy (PFS)
• PPTP VPN
• - PPTP VPN Server
• - PPTP VPN Client (10)
• - 16 Tunnels
• - PPTP with MPPE Encryption
• L2TP VPN
• - L2TP VPN Server
• - L2TP VPN Client (10)
• - 16 Tunnels
• - L2TP over IPSec
• OpenVPN
• - OpenVPN Server
• - OpenVPN Client (10)§
• - 16 OpenVPN Tunnels
• SECURITY
• Filtering: URL Filtering
• Attack Defense: TCP/UDP/ICMP Flood Defense, Block TCP Scan (Stealth FIN/Xmas/Null), Block Ping from WAN
• Access Control:    Source/Destination IP Based Access Control
• AUTHENTICATION
• Web Authentication
• - No Authentication
• - Simple Password
• - Hotspot (Local User / Voucher / SMS / Radius)
• - External Radius Sever
• - External Portal Sever
• - Facebook
• MANAGEMENT
• Omada App: Yes
• Cloud Access: Yes
• Service:Dynamic DNS (Dyndns, No-IP)
• Maintenance
• - Web Management Interface
• - Remote Management
• - Export & Import Configuration
• - SNMP v1/v2c/v3
• - Syslog Support
• Management Features
• - Automatic Device Discovery
• - Intelligent Network Monitoring
• - Abnormal Event Warnings
• - Unified Configuration
• - Reboot Schedule
• - Captive Portal Configuration
• - Management up to 1 Router, 2 Switches and 10 EAPs
• OTHERS
• Certification: CE, FCC, RoHS
• Package Contents
• - ER7212PC
• - Power Adapter
• - Power Cord
• - Quick Installation Guide
• System Requirements
• - Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10
• - MAC OS, NetWare, UNIX or Linux

*Specifications are subject to change without notice.
